Question

Midpoint Workplane

  • June 2, 2011
  • 2 replies
  • 3761 views

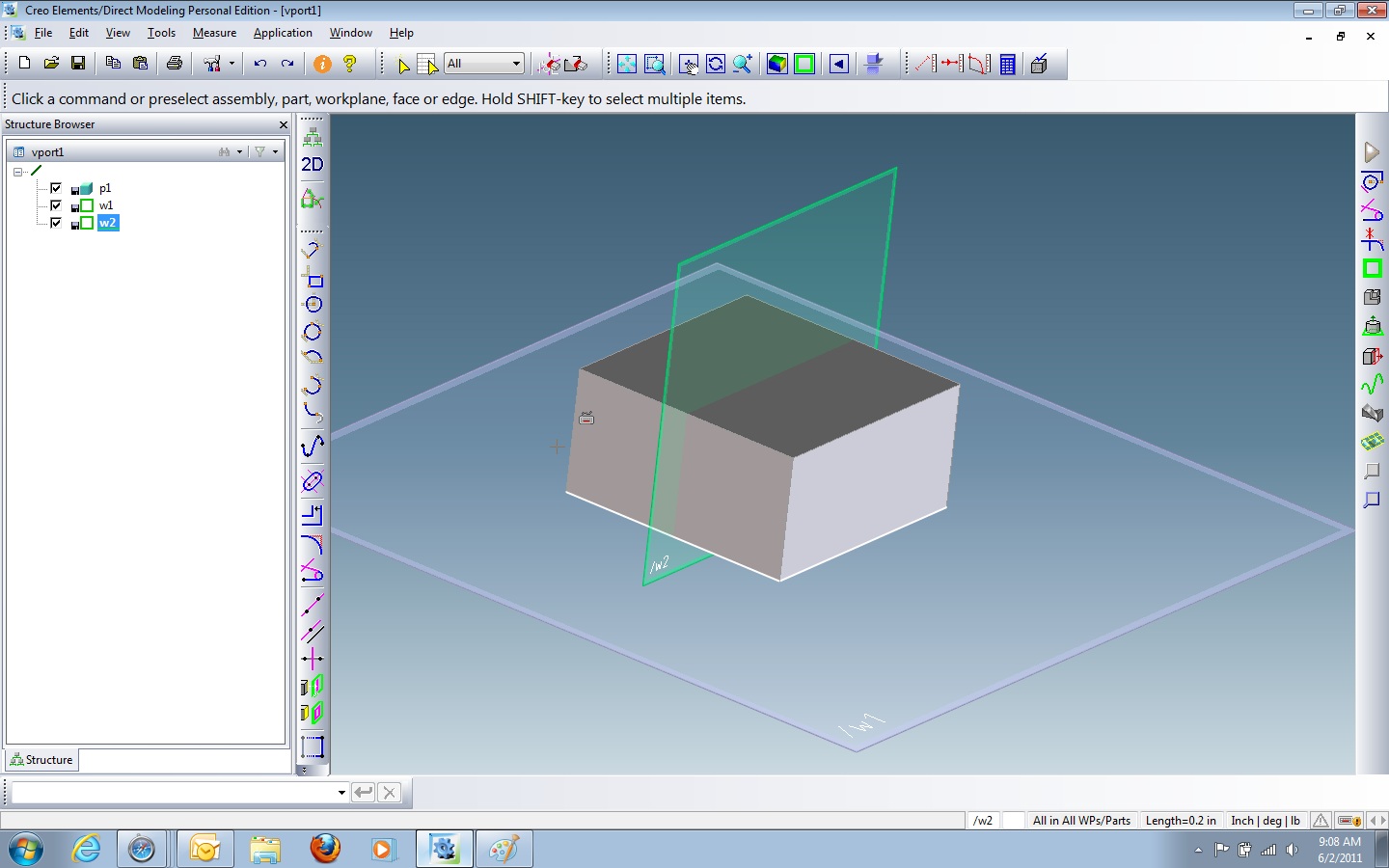

Another super simple question. What is the best way to create a workplane at the midpoint of this solid. I can create a plane on a face easy, but if I try and reposition the plane it won't snap to the midpoint of an edge. I tried to create a plane by point and dir but again it won't find the midpoint. Any thoughts



Dennis



Midpoint Workplane.jpg


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

H
highway4513-Aquamarine
13-Aquamarine
June 2, 2011

Point & dir is ok.

But you must hold down the CTRL + SHIFT keys for catching the center of a line or circle.

have fun !

Matthias

D
djnelson1-VisitorAuthor
1-Visitor
June 2, 2011

Thanks the did it.

P
PeterKehoe1-Visitor
1-Visitor
November 2, 2011

Another option, which works in cases of more complex geometry, is to measure the center of geometry of the part. I would send the measurement to the calculator and then start the WP by Pt/Dir command and grab the XYZ values from the calculator for the center point of the workplane.
