Show Model Annotations are too big when added

  • January 11, 2023
  • 2 replies
  • 1360 views

have a busy hole pattern, using Show Model Annotations I am adding the datum axes, but they are too big and overlapping. How do you change the size of when they are first added? (I know how to change them manually once they are added).

2 replies

K
Kotom-Eng16-Pearl
16-Pearl
January 12, 2023

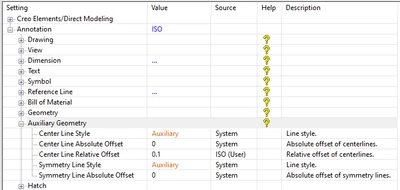

Click on File > Settings > Auxiliary Geometry,

then double click on the value to change it for new center lines:






F
FriedhelmK17-Peridot
17-Peridot
January 18, 2023

Hello TomK
May I ask which cad program you are using?
If it is Creo 6 or another Creo Parametric related, then you are here in the wrong forum.
Here you are at Community Creo Elements Direct in the Drafting subsection.
