Something wrong when create geometry in Element drafting 20.1.4

  • April 11, 2022
  • 1 reply
  • 2328 views

Dear everyone



I have some question about using Element drafting 20.1.4 as below ;

1. I create geometry whatever line rectangle circle, it show black box instead show value . What cause of this problem ?

2. When I create rectangle, it not parallel with monitor as capture screen.

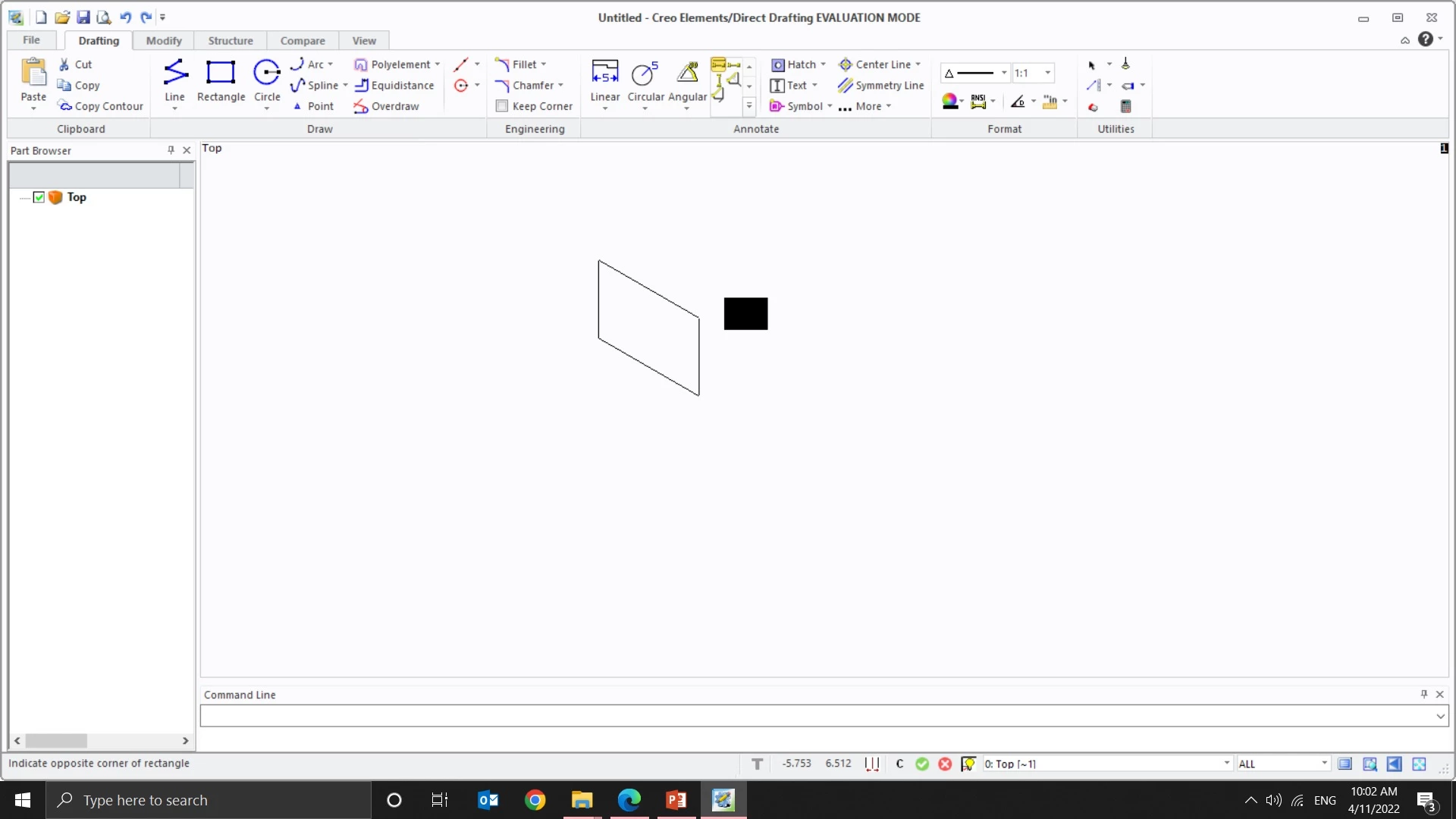

(Please see capture screen in attached file for clearly understand )

If I guess, all of this problem cause from Evaluation mode ?   I'm not sure.

Anyone who have experience about this problem. Kindly guide me how to solve this problem



I'm  looking  forward to hearing from you.



Thankyou

James







Best answer by Kotom-Eng

Dear James,



1. This should be the values x and y of the current position of the cursor. You can change foreground and background to see the text with:

Tab File > Settings > System...> Copilot

and then "Text Box" "Text" and "Bakground".



2. You are in the isometric mode. You can change back to normal with:

Tab View > Drafting > Setup >

and then Grid... > Reset

1 reply

K
Kotom-Eng16-PearlAnswer
16-Pearl
April 11, 2022

Dear James,



1. This should be the values x and y of the current position of the cursor. You can change foreground and background to see the text with:

Tab File > Settings > System...> Copilot

and then "Text Box" "Text" and "Bakground".



2. You are in the isometric mode. You can change back to normal with:

Tab View > Drafting > Setup >

and then Grid... > Reset

    K
    Kotom-Eng16-Pearl
    16-Pearl
    April 11, 2022

    Nothing to do with evaluation mode.

    S
    surached7-BedrockAuthor
    7-Bedrock
    May 23, 2022

    Dear  @Kotom-Eng



    Thank you for your helpful

    I'm already set as your recommend, it's work !
