Vertical Dimensions

  • May 2, 2022
  • 1 reply
  • 3225 views

Ability to place dimension along vertical direction

1 reply

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
May 2, 2022

Show an example of what you are looking for.

S
szycha631-VisitorAuthor
1-Visitor
May 2, 2022

Creo does not have this ability

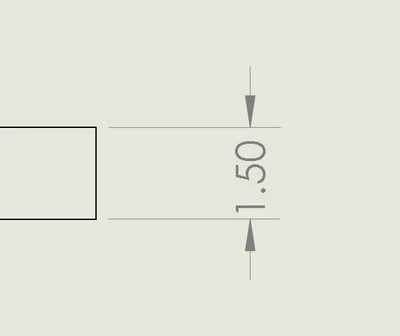

vertical dimension with vertical "text" along vertical dimension lines

Solidworks




B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
May 2, 2022

That dimension does not comply with the requirements of ASME Y14.5-2018, paragraph 4.4.5.2 and figure 4-16.
