EMX part Size calculation issue

  • March 25, 2020
  • 1 reply
  • 2771 views

Hello Community,



I am adding an inclined part in EMX Assembly by top-down process.

Part getting added in assembly successfully, but while generating BOM the size calculated by system is rectangular even part is like pin (Circular).

(Actual Size : Dia50 x 300mm - Calculated size: 258 x 258 x80)

Similarly  I am assembled a rectangular plate in inclined way by topdown process, wrong size calculated.

(Actual Size : 408x 70x 28.3 mm - Calculated size: 408 x 68 x61)

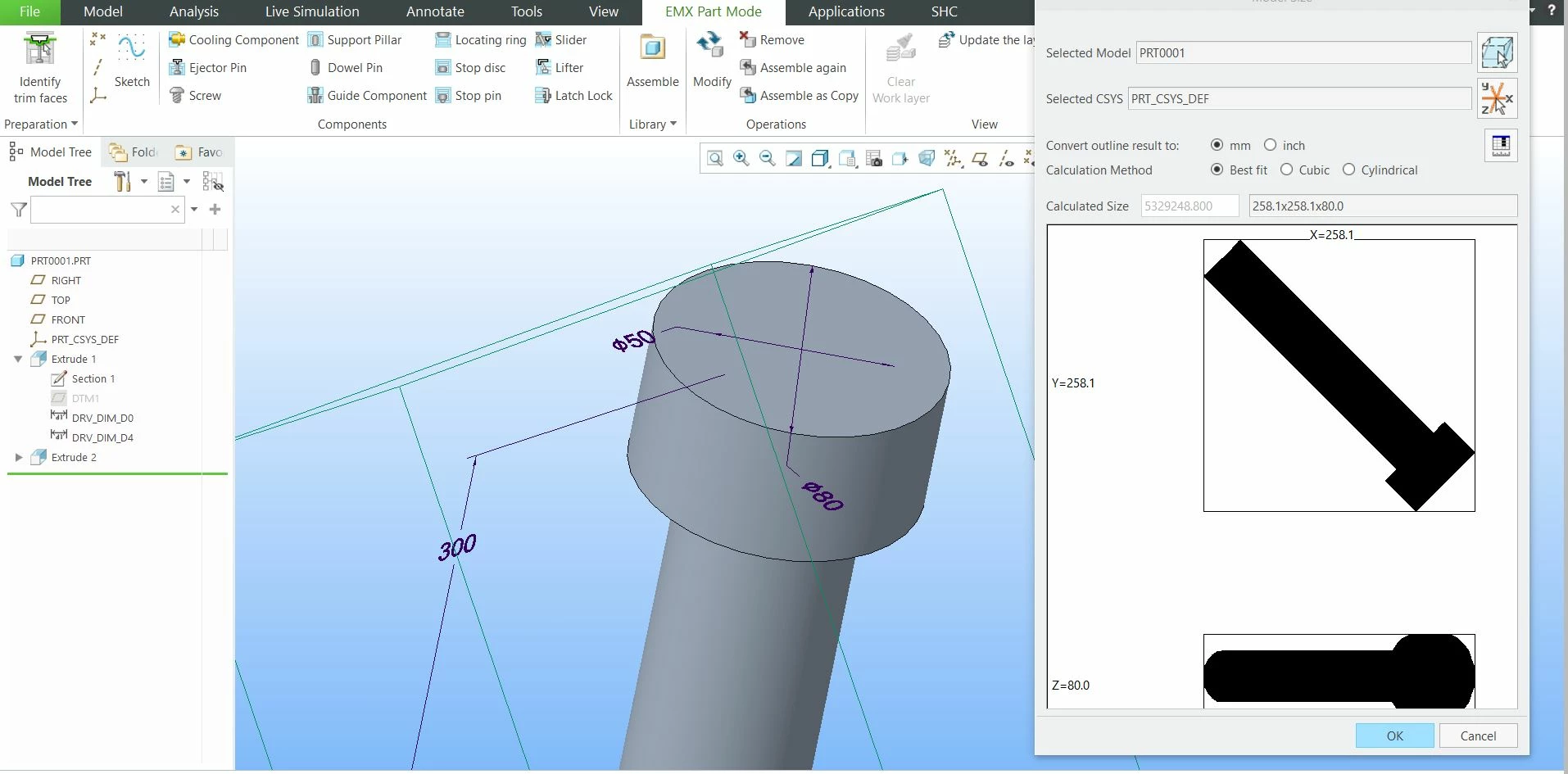

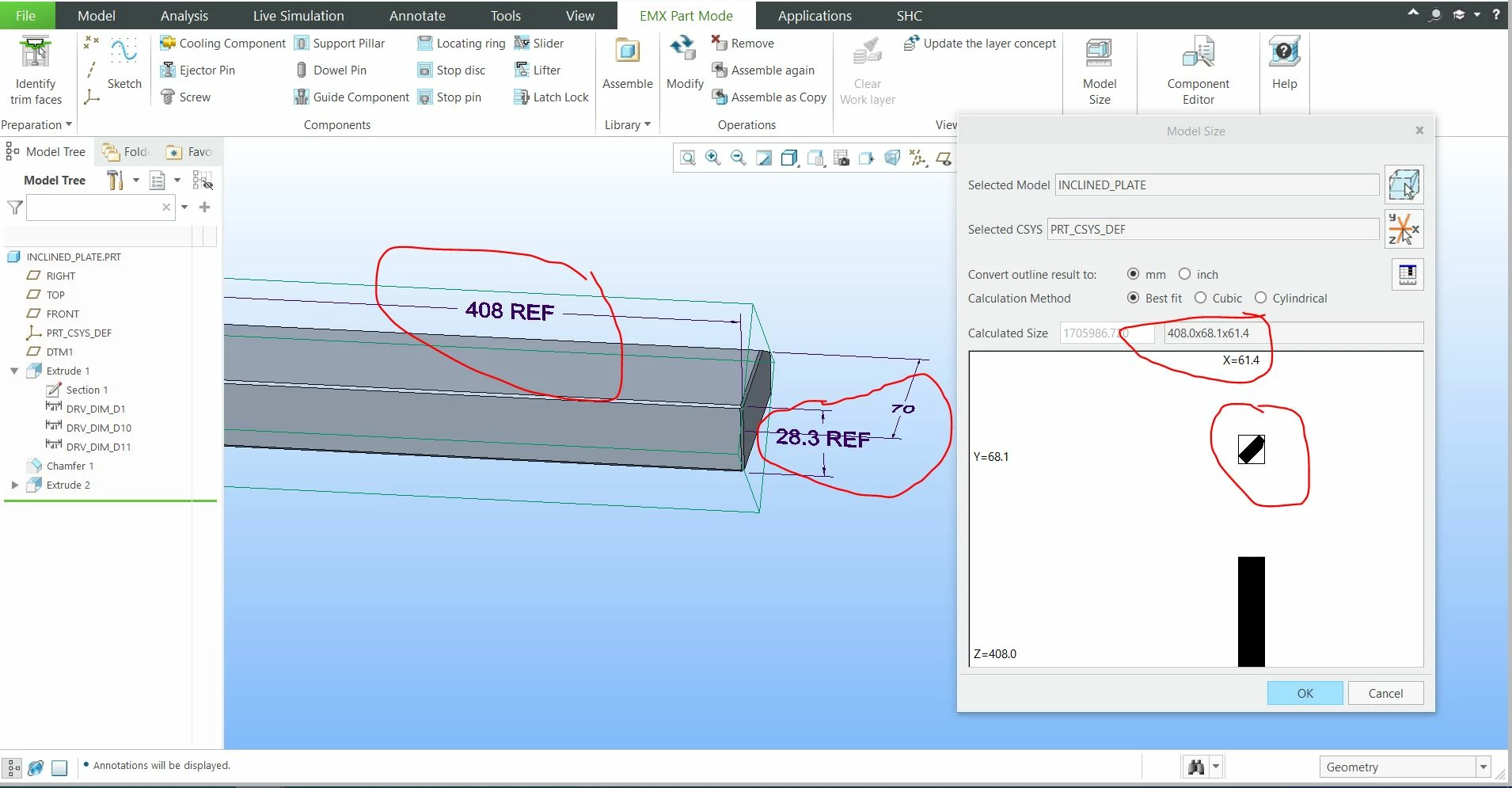

Please find the attached screen shots.

I used standard Demo data set for trial of EMX assembly.



Looking for response.

Best answer by pnos

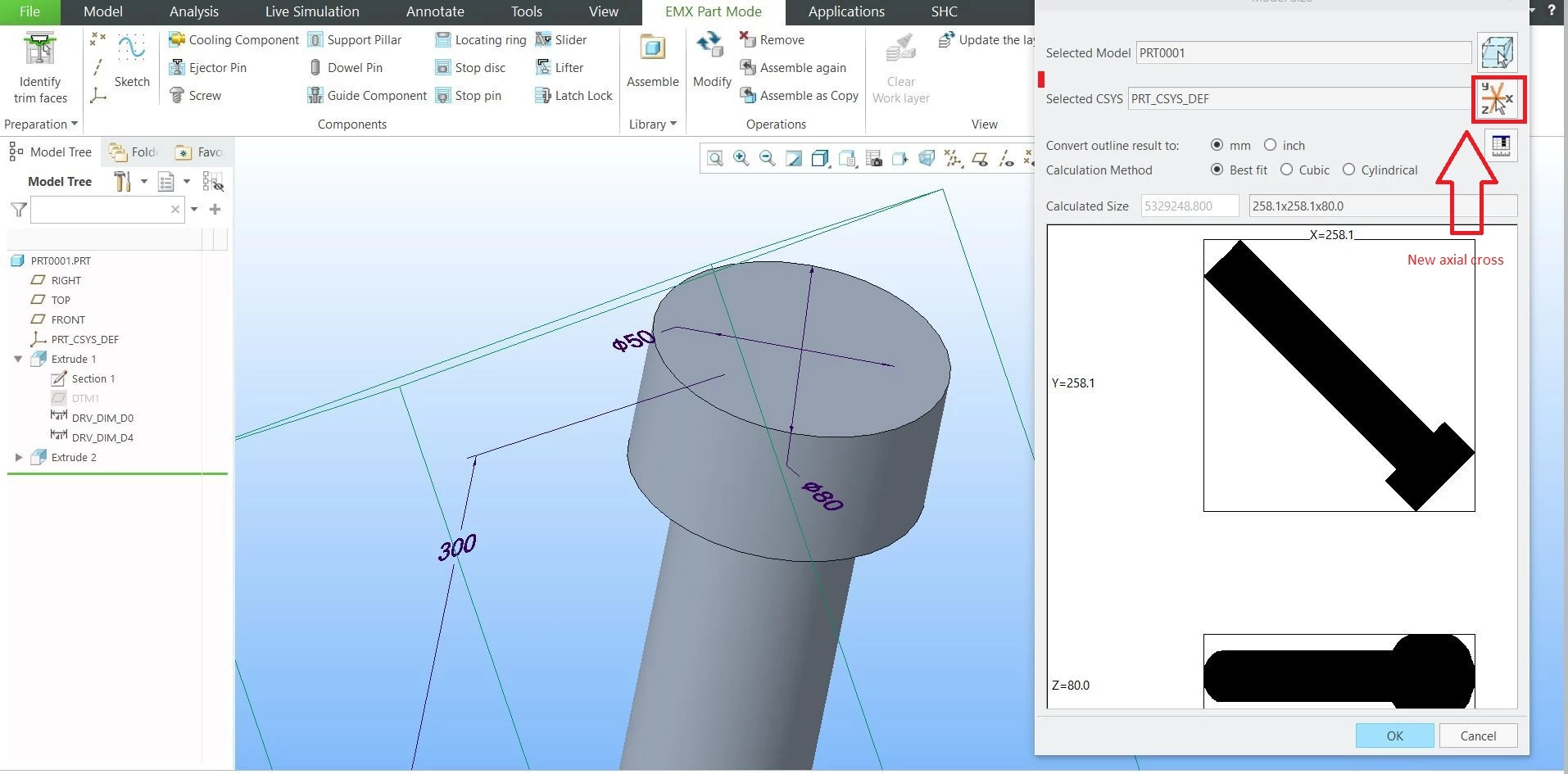

You must make a new axial cross in the model.And to mark it see picture.The parts that are formed in the assembly at an angle do it that way.

1 reply

P
pnos1-VisitorAnswer
1-Visitor
April 12, 2020

You must make a new axial cross in the model.And to mark it see picture.The parts that are formed in the assembly at an angle do it that way.

I
ICAD_Support14-AlexandriteAuthor
14-Alexandrite
April 17, 2020

Thanks for the Solution..!!

Its Working..
