Helical plunge?

  • October 27, 2012
  • 2 replies
  • 1659 views

Hello guys

could someone tell me is there a way for the cutter to plunge in a helical way in trajectory miliing at a specified radius instead of plunging at 90degrees or ramping.

thanks for any help

michael


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by SteveLucas

Michael,

Here is a helical approach on a pocket. If this is what you are looking for. the helical approach has to be after the plunge move and the parameter angle is 720 to do 2 turns. The clearance distance, radius and angle are up to you. hope this helps.

Steve



2 replies

S
SteveLucas1-Visitor
1-Visitor
October 29, 2012

Michael,

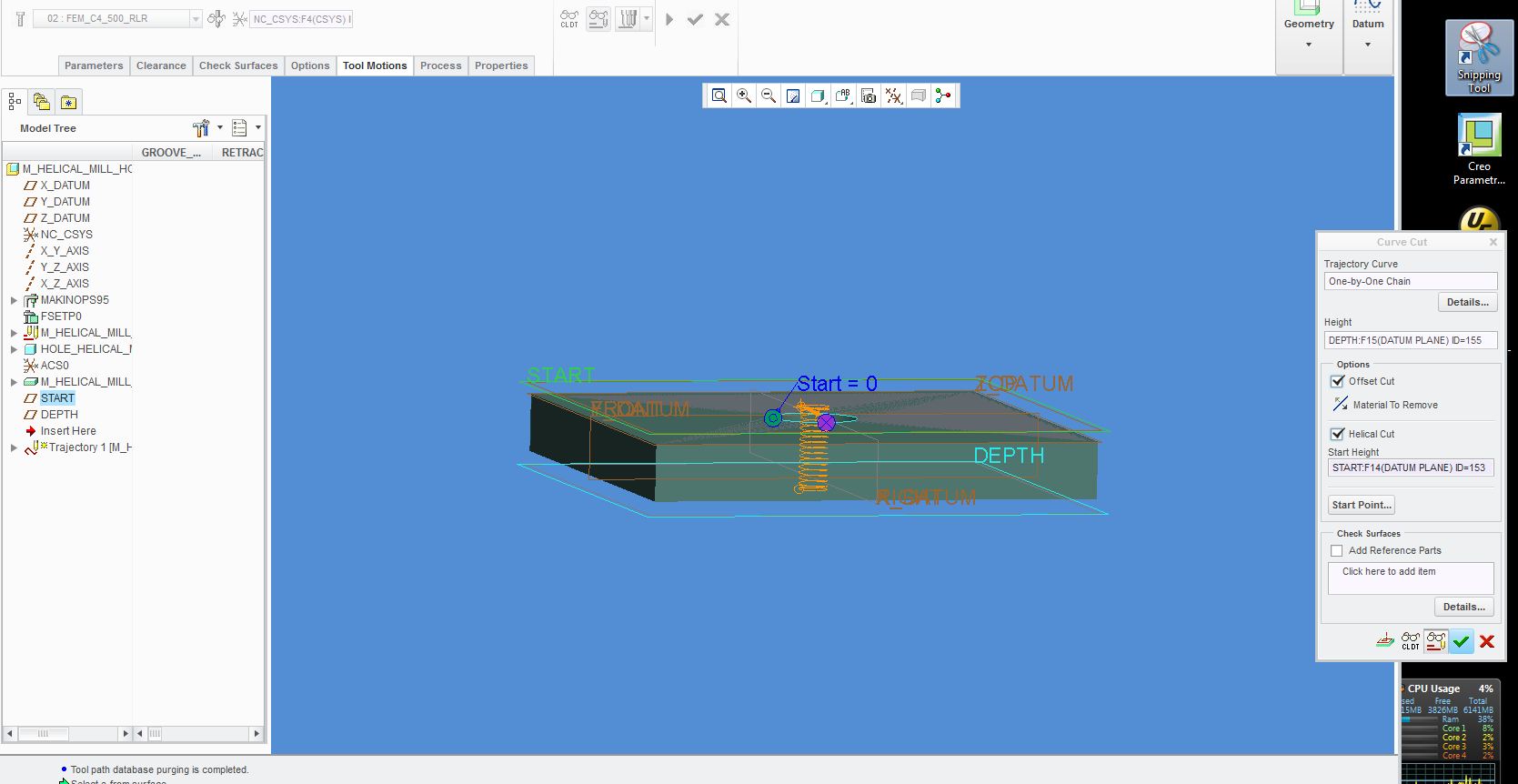

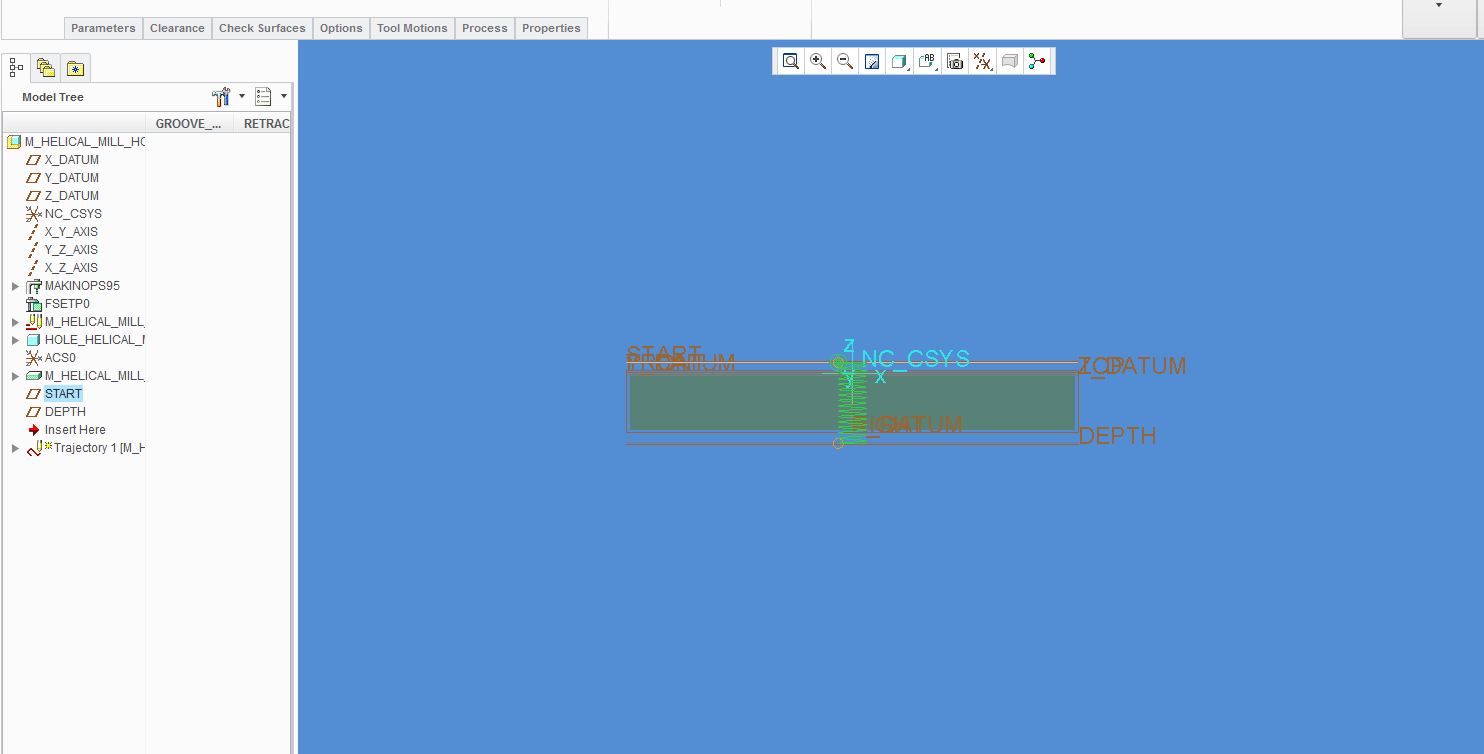

What I do is make 2 datum planes. 1 labeled start which is a distance above the part to start off the work and 1 labeled depth which is a diatance below the part so the cutter goes all the way through.For me this is the fastest way to get the helical cut to start off the part. Maybe some one else has a better idea but this is how I do it at least on holes. If you are looking at random shapes there are options for helical entry available in trajectory milling also.

Steve



S
SteveLucas1-VisitorAnswer
1-Visitor
October 29, 2012

Michael,

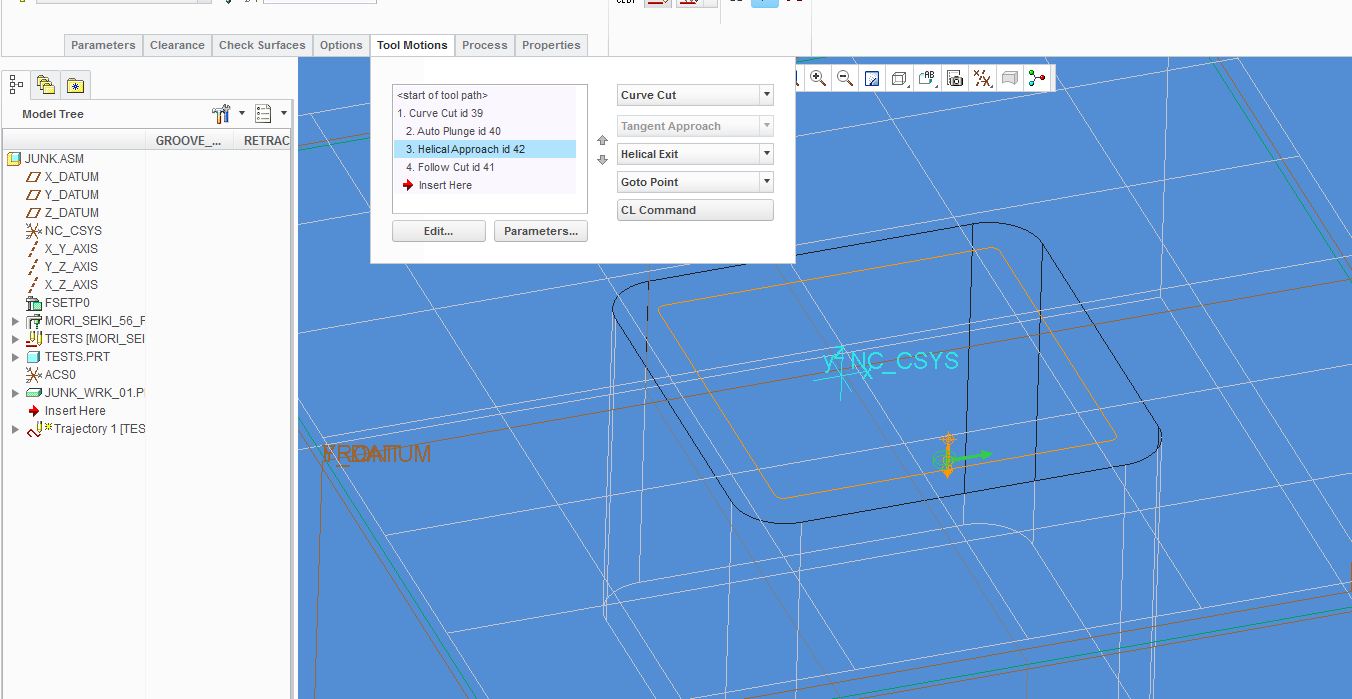

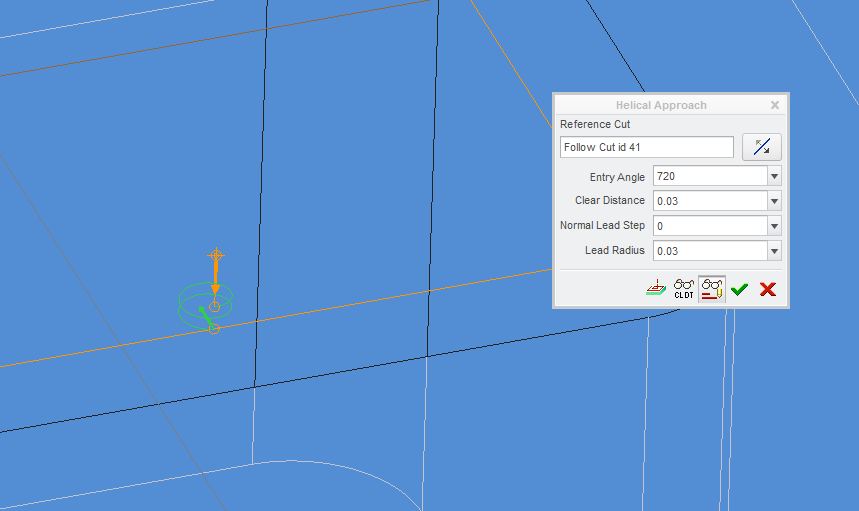

Here is a helical approach on a pocket. If this is what you are looking for. the helical approach has to be after the plunge move and the parameter angle is 720 to do 2 turns. The clearance distance, radius and angle are up to you. hope this helps.

Steve



M
Mickyd11-VisitorAuthor
1-Visitor
October 29, 2012

Hi Steve

i think thats what im looking for will try it out when i get back to work.

thanks again

michael
