Solved

Lathe tools

  • February 6, 2024
  • 1 reply
  • 9870 views

Hi, how do you define the tool for the lathe.

I didn't get it from the instructions

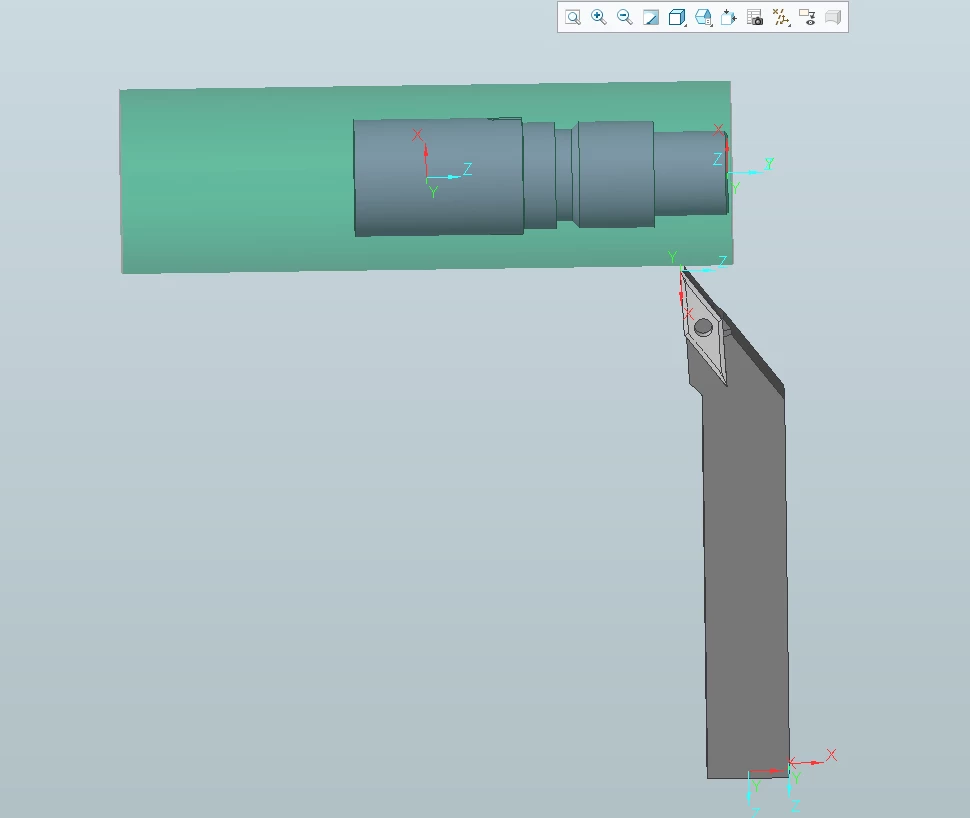

I tried to create a Solid tool and I added CSYS TIP and CREO doesn't want to create paths even though I increased BACK_CLEAR_ANGLE.



Could someone send me an example of how you define this?

Thanks in advance

Best answer by Civodul

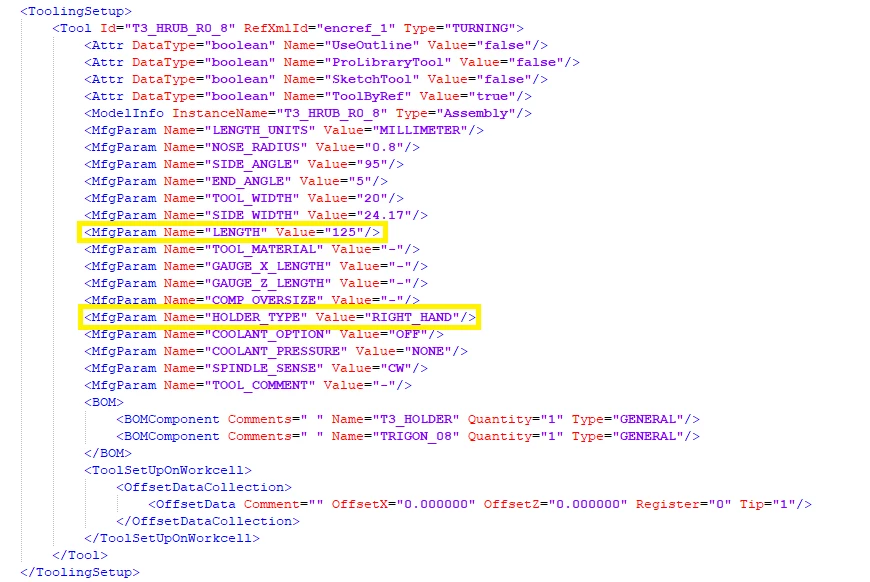

I udpate the tool t3_hrub_r0_8.

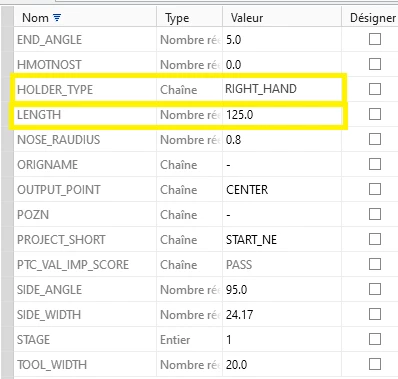

Modify tool parameter name TOOL_LENGHT by LENGTH

Modify tool parameter HOLDER_TYPE value by RIGHT_HAND










1 reply

C
Civodul14-Alexandrite
14-Alexandrite
February 7, 2024

Hi

attached an example of right Solid Tool.

Look in the part parameters, assembly parameters, and relations.



https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/manufacturing/nc/Tool_Parameters.html

https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/manufacturing/nc/to_use_tool_outline_in_turning.html#

https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/manufacturing/nc/example_using_the_tool_outline_in_turning.html#



Hope this help







P
ptc-2968158-GravelAuthor
8-Gravel
February 8, 2024

Hi, thank you.

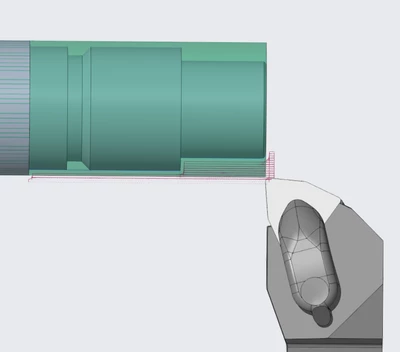

If I understand correctly it is always necessary to model the tool and the plate, because when I tried to import the step and define the parameters it only displayed the tool, but not the pathknife.png

or am I making a mistake somewhere?

C
Civodul14-Alexandrite
14-Alexandrite
February 8, 2024

Hi,

Have you tried with no solid tool?
