HI,

I'm looking for feedback from user thathave similar functionality in their projects.

I would like to have bellow case scenarios:

- In manufacturing projects I would like to have detailed models to be manufactures in CAM

- In the projects sent to customer I would like simplify the models to avoid the IP geometry

- For catalogues where I would like to different way of simplification or hide the moldes in drawings

I still bilieve the Simplify Representation is the best solution but I found also other method like:

- Use family table to simplify geometry to show it IP to the customer or catalogue

- Use flexibility to hide geometry or components

- Create separatly models with no link (2 different models with no connection: one is detail and another one is a model with no geometries)

Do you have this situation like before one where for a model representation I need all the details to be used in CAM for different representation i need models to hide the intelectual properly.

What is the best solution for previous mothods or if tehre are more.

CC


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

C
ClaudiuCraciun1-VisitorAuthor
1-Visitor
June 3, 2014

Hi Everybody,

I really need a solution for bellow scenario:

- I have a CAD model with all the details. This model it's used in manufacturing to have proper drawings and models to generate the CNC

- On the other side the customer required to have the models but the Inlectial propely is not supposed to be send to Customer. Some of the models are required to be simplified but not like Shwrinkwrap and filled all the holes or having on block.

Do you have any solution for having one model or assembly with the options of having detail or simplified view?

Thx,

CC

T
TomD.inPDX17-Peridot
17-Peridot
June 3, 2014

That is the purpose of shrinkwrap. Of course, you want to export the file in some other format than the native Creo files.

I have often run into this requirement and I do not find Pro|E to be easy about this. Shrinkwrap has always been a non-intuitive challenge and for the most part, I simply created a model in the assembly using the assembly's references. Depending on the complexity, this can be done in relatively short order with extrudes and revolves. typically, the customer only required critical interfaces and and overall envelope.

C
ClaudiuCraciun1-VisitorAuthor
1-Visitor
June 3, 2014

shrinkwrap usually doesn't work very well:

1. sbould be able to change the models, rotate them when are imported in a different software.

2. most of the time the when shrinkwrap is generate the surface is broken and solid cannot be generated

3. Detailed and simplify should be as a model (having 2 different models is not a good solution). any change should be reflected in both. I know that shrinkwrap is working but having a blok for the entire project is not a solution + it's difficult to simplify them (sometime some holes required to be excluded, some of them no, some other geometry required to be removed sometimes

4. I was tried to use simplify representation but the issue for this when there are features at the assembly level this doesn't work anymore. Havin a simplify representation at the part level is not intersected if the assembly have assembly cuts.

5. Also what we need is teh WT part structure should work properly for BOM.

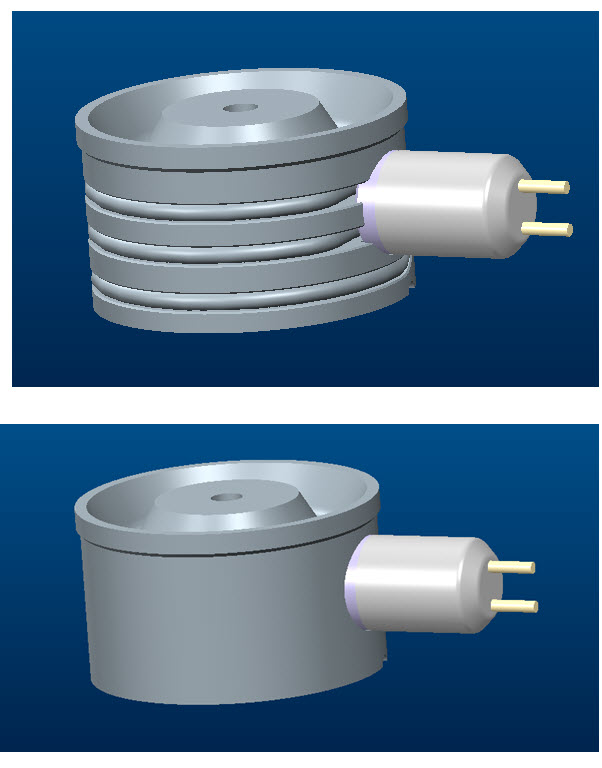

See some pic. I 'll bring more pics
