Hello, everyone!

Does anybody know how to create a pattern around the axis in the sheet metal module of Creo Parametric?

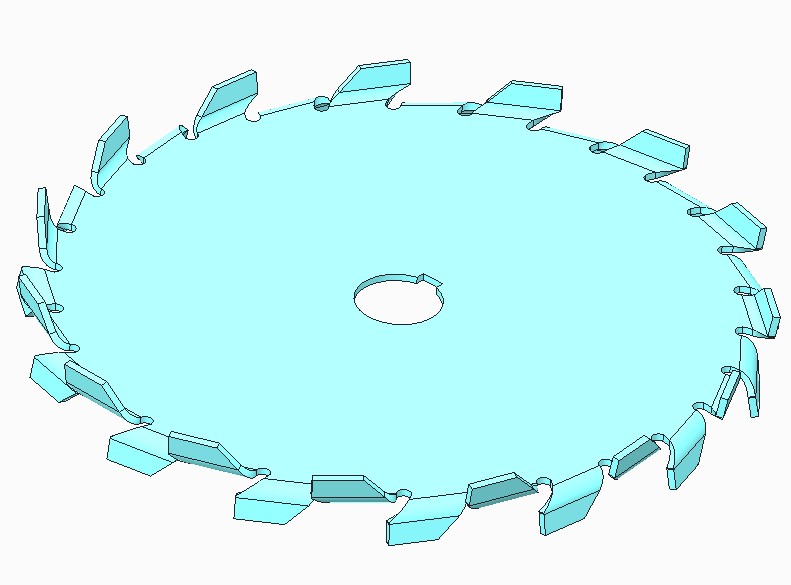

I would like to create a pattern of teeth of a bead mill blade but the option which is called "around the axis" is not available (it's grey).

Thanks in advance.

Best Regards, Vladimir.



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

You have to merge the sections of the plate.


1 reply

T
TomD.inPDX17-Peridot
17-Peridot
September 17, 2012

Do you have axis in your part?

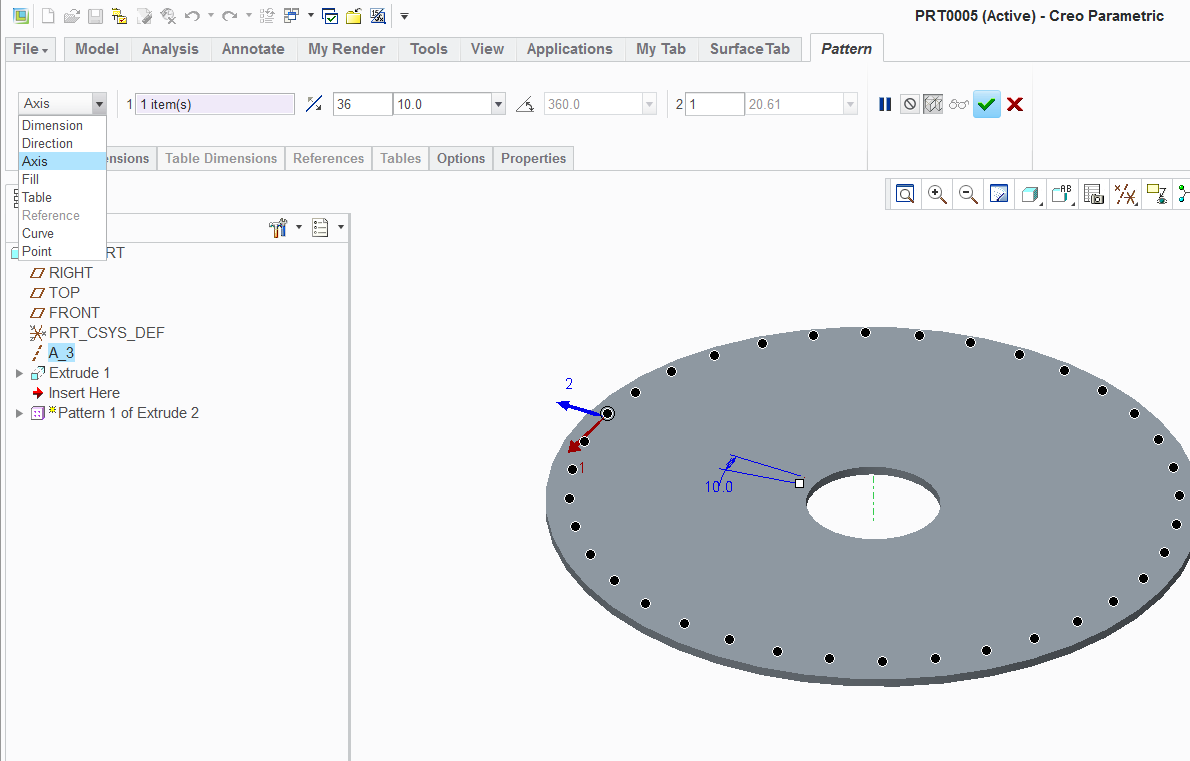

This is where you find it...


V
Vladimir_G1-VisitorAuthor
1-Visitor
September 17, 2012

Hello, Antonius!

Thanks for your answer.

Yes, I have the axis in my model and indeed I can make a pattern of holes, cuts and so on around the axis.

But when I try to pattern a bend then this option becomes unavailable.


T
TomD.inPDX17-Peridot
17-Peridot
September 17, 2012

Oh! Yep, this is problematic..
