Turn-Grooving Tools

  • March 22, 2023
  • 1 reply
  • 1377 views
Is there a kind soul out there who would like to help me set up the turn-grooving tools?

Can't find out how to setup TIP, OFFSET CENTER and so on.
Thanks





















1 reply

V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
March 23, 2023

From "Help Center" - "Groove Turning": https://support.ptc.com/help/creo/creo_pma/r9.0/usascii/index.html#page/manufacturing/nc/groove_turning.html

M
mdenicola14-AlexandriteAuthor
14-Alexandrite
March 25, 2023

Yes , That's the explanation but to me it's still not clear how to set everything.

Let's show an example.

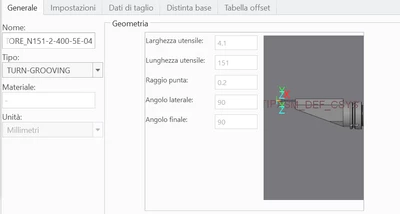

This is my settings:

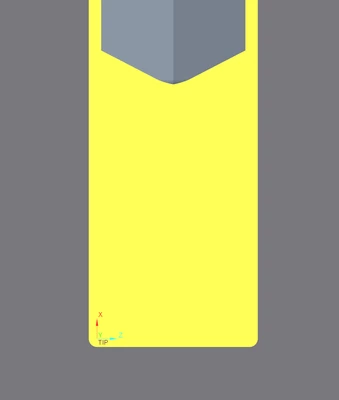

The TIP csys is at the center. Nose radius is ( 0.2 mm)


Insert Width is 4.1

Nose Radius is 0.2

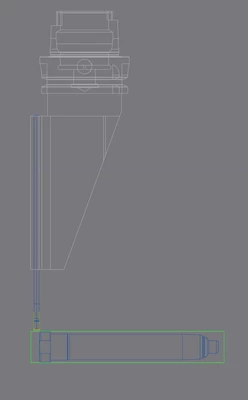

Let's say I need to cut this:

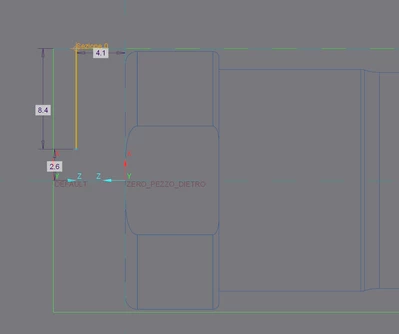

Should I make a profile at 4.1 mm distance from the part ?

Like this:

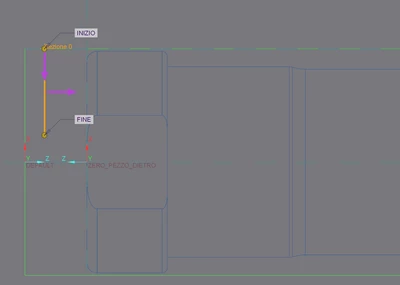

Material direction to remove:

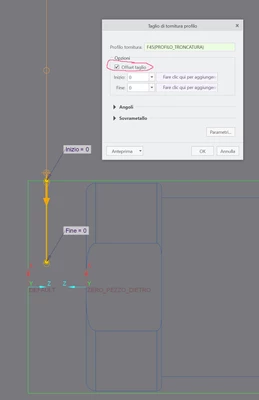

offset cut checked like this:?

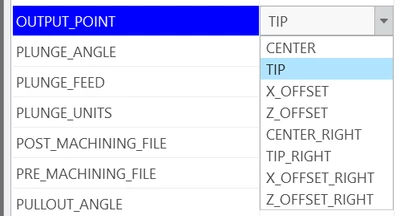

How to set the OUTPUT_POINT in the parameters dialog box?




Thank You!
