Question

Turning Solid Tools

  • July 6, 2020
  • 2 replies
  • 2910 views

Hi



I am trying to show solid tools on ModuleWorks but I don't know why only the holder is shown and not the insert.



I attach two pictures

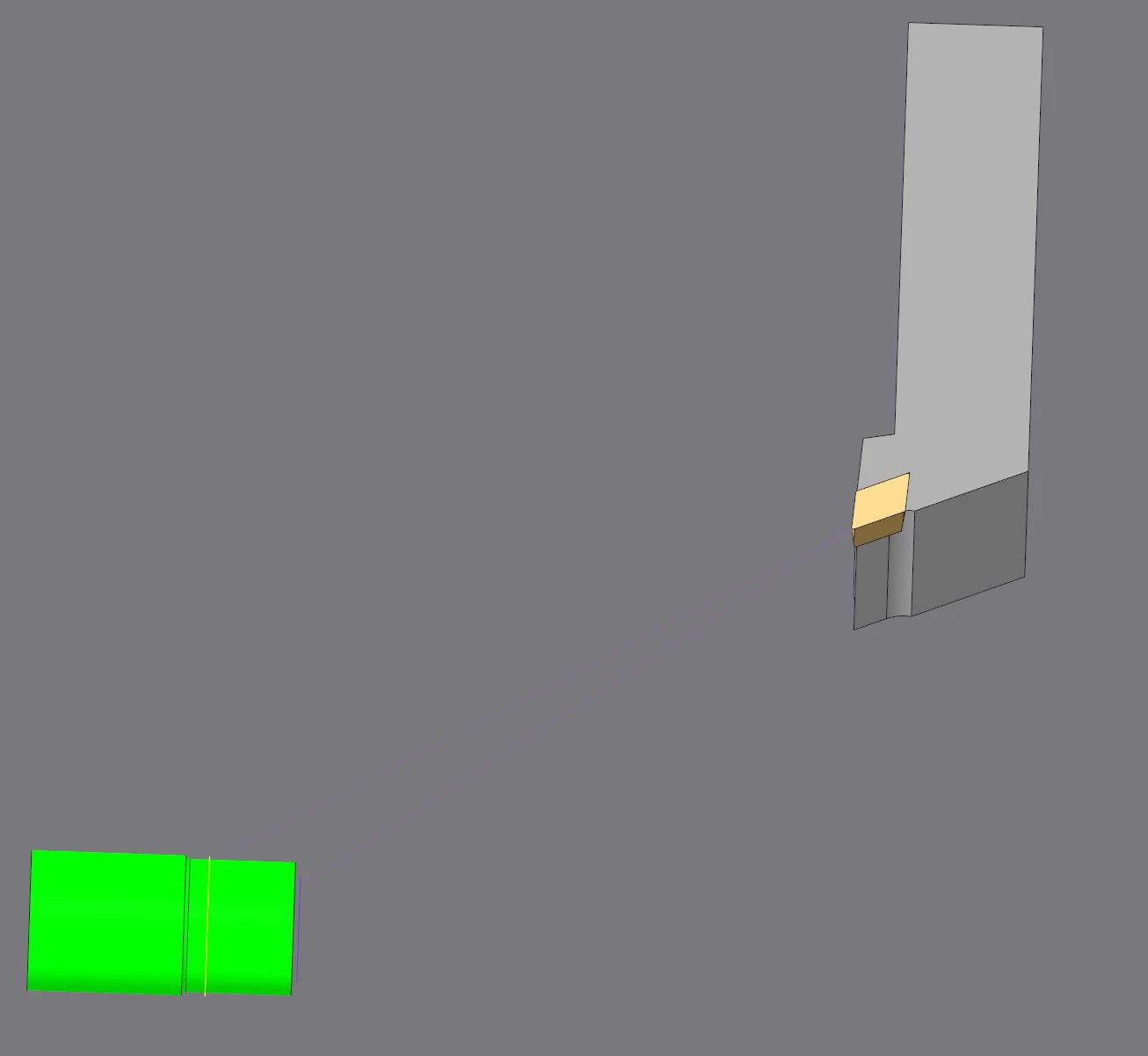

SOLID_TOOL.png is shaded in Creo

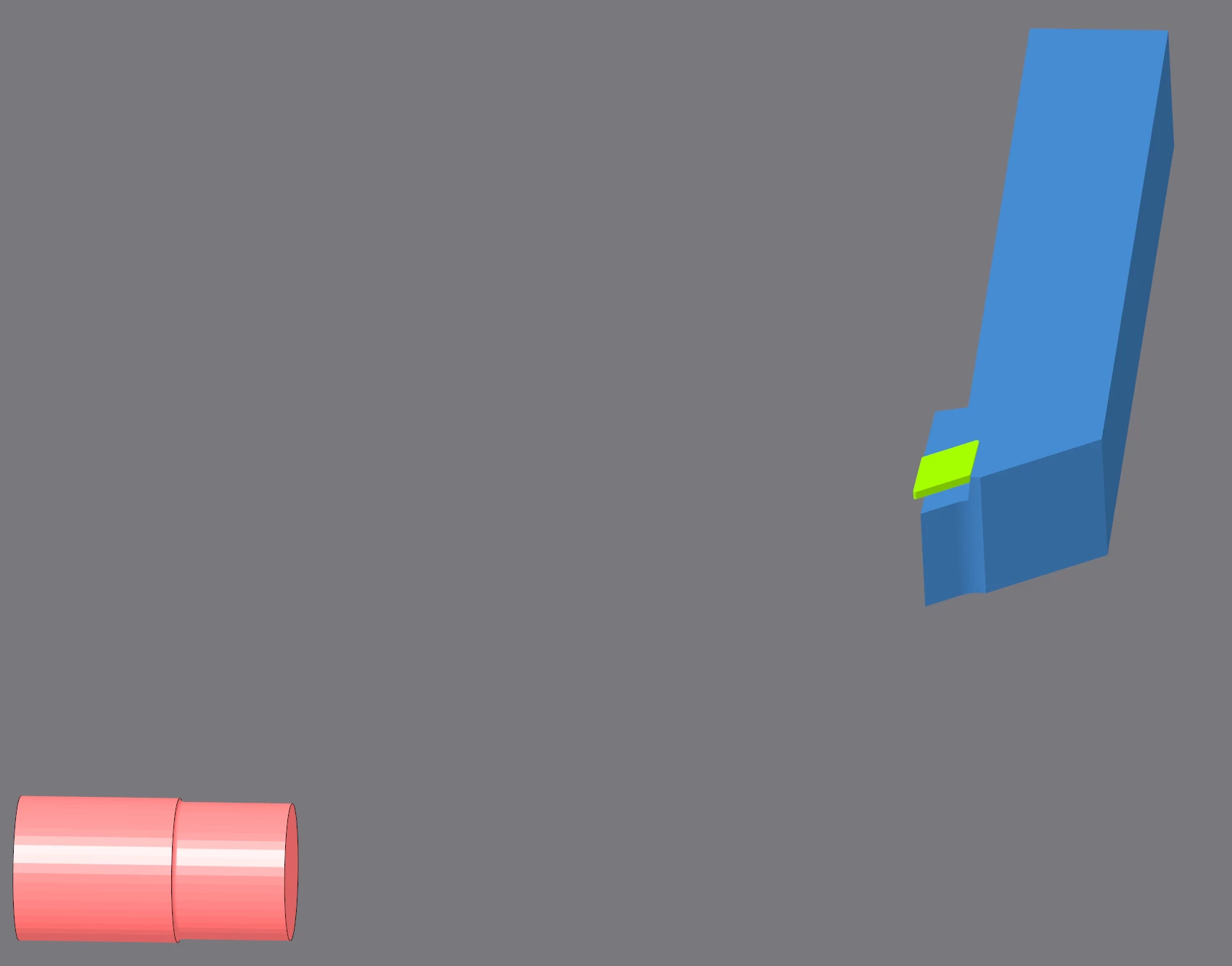

SOLID_TOOL_2.png is in ModuleWorks. The holder is ok but the insert not



Both Holder and insert have a CSYS called INSERT

Holder has the parameter : VERICUT_TYPE set to HOLDER

Insert has the parameter : VERICUT_TYPE set to INSERT



Any idea why?



Thanks



Marco







2 replies

F
fgeiskopf017-Bedrock
7-Bedrock
July 6, 2020

Hello,

A reason could be if you use sub-assembly in your tool design. Sub assemblies are not supported by Moduleworks.

M
mdenicola14-AlexandriteAuthor
14-Alexandrite
July 9, 2020

I tried with a simple asm with two components, the tool and the insert.

You can find the asm in the reply to MaheshSh



What is strange is that always the insert is not shown.



Probably I am missing some parameters



Thanks



Marco







Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
July 8, 2020

@mdenicola



Can you share the sample data?

M
mdenicola14-AlexandriteAuthor
14-Alexandrite
July 9, 2020

Hi MaeshSh



Sure. Enclosed you can find the .asm with the tool and the insert



Thanks



Marco
