3D-body plot

  • October 15, 2017
  • 2 replies
  • 2530 views

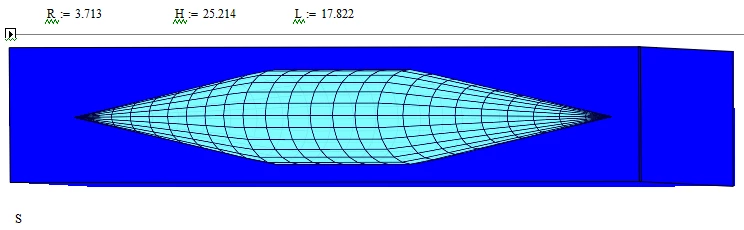

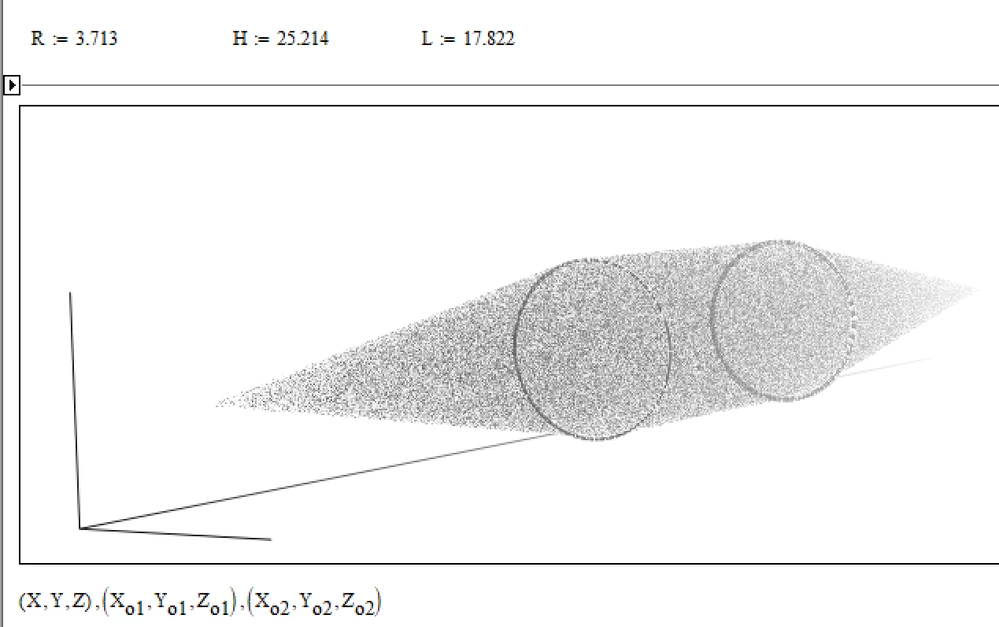

Do you know more interesting (not so simple) 3D-body plot? See please Mathcad 15 sheet in attach!


2 replies

T
terryhendicott21-Topaz II
21-Topaz II
October 15, 2017

Hi,



There is a mathcad 14 book called

"Creating Amazing Images with Mathcad 14:" by Byrge Birkeland.

I recommend this for amazing 3 D plots



Cheers

Terry

V
ValeryOchkov24-Ruby IVAuthor
24-Ruby IV
October 15, 2017

Thank you, I know about this book.
I remember reading it, I created one simple 3D-surface, converted it into a cylindrical format and got ... a lady with a bust, waist and other.
Now I can not reproduce this trick 😞



V
ViktorKorobov1-Visitor
1-Visitor
October 16, 2017


V
ValeryOchkov24-Ruby IVAuthor
24-Ruby IV
October 16, 2017

Thanks, Viktor!

Can you send the Mathcad-sheet?

V
ViktorKorobov1-Visitor
1-Visitor
October 16, 2017

I'm sorry Valery. I forgot to attach the file in previous post.
