3D Plot Input Data

  • June 22, 2021
  • 3 replies
  • 3572 views

Hi there,



the PTC Mathcad help say if i want to use a matrix as Input Data for 3D Plots there are 2 ways:


• A 3-column matrix, where the three columns represent the x-, y-, and z-coordinates
• A m*n matrix, where the cell’s indices represent the x- and y-coordinates and the cell values represent the z coordinates

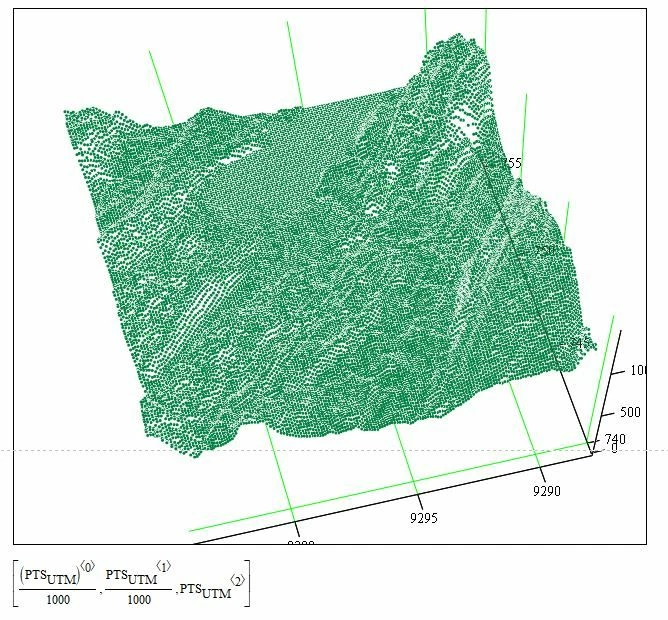

I need the first one, but my Mathcad (using Mathcad 15) allways plots my matrix like the second case.

How can I change this and tell the Plot that my matrix has the coordinates in the collums and not int the indices and values?

thanks a lot ❤️
Best answer by terryhendicott

Hi,


3 replies

ttokoro
21-Topaz I
ttokoro21-Topaz I
21-Topaz I
June 22, 2021

How to plot a point in 3-D and Rotation of the poi... - PTC Community

You can find the answer here.

t.t.
    T
    TW_91520751-VisitorAuthor
    1-Visitor
    June 25, 2021

    ty 🙂



    T
    21-Topaz II
    terryhendicott21-Topaz IIAnswer
    21-Topaz II
    June 22, 2021

    Hi,


      T
      TW_91520751-VisitorAuthor
      1-Visitor
      June 25, 2021

      thanks, thats what I was aiming for 🙂

      P
      payman1-Visitor
      1-Visitor
      June 23, 2021

      Please see the worksheet provided. The first plot uses the CreateMesh() function, a fast and preferred method for creating 3D plots.
      The matrix is unrolled for the second plot, resulting in three columns of data: x, y, and f(x,y). You'll notice how time-consuming it is, as well as how the plot quality suffers.

      Payman.

        T
        TW_91520751-VisitorAuthor
        1-Visitor
        June 25, 2021

        ty 🙂
