Acoustic impedance Plot

All,

I'm trying to plot a graph of real and imaginary part of the acoustic impedance of an empty tube with a closed end.

This is the function of the Impedance and the graph I obtain:









-MFra-Answer
21-Topaz II
April 13, 2018

Hi,

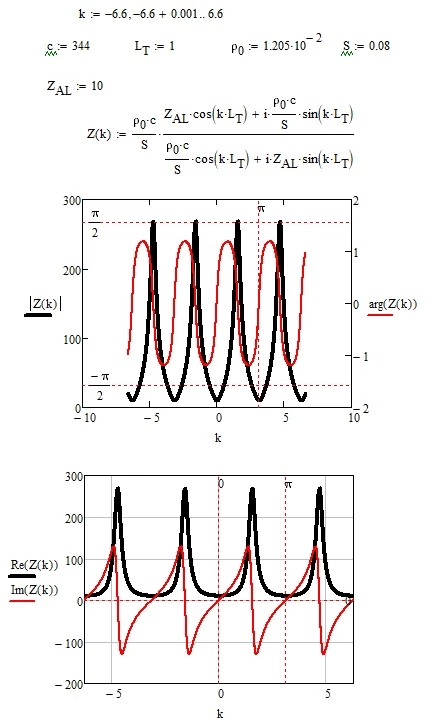

I used Mathcad 15 and I changed the data, to fit  to the graph you provided.

ANDREX_ITA answer.jpg

View in thread

10 replies

Andrex_ITA1-VisitorAuthor
1-Visitor
April 13, 2018

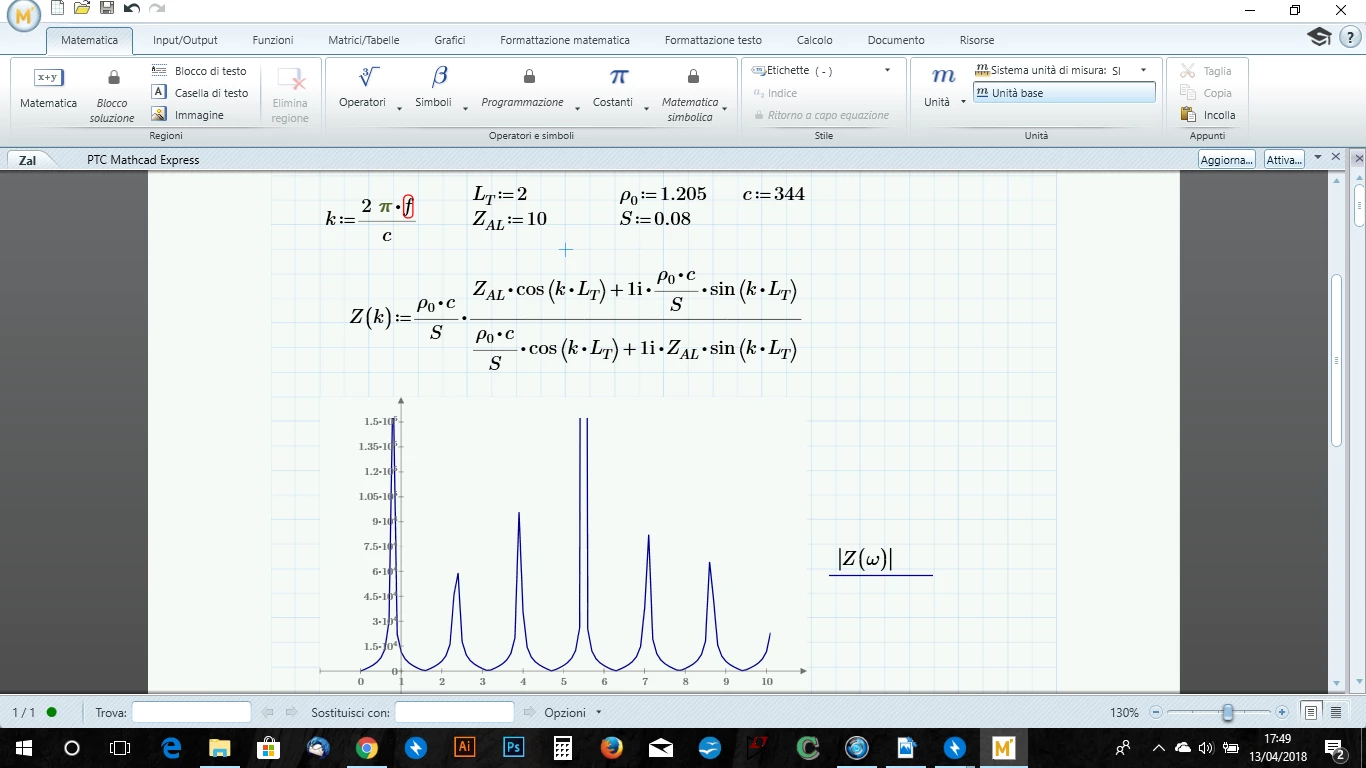

and this is what I expected:

Translate
Andrex_ITA1-VisitorAuthor
1-Visitor
April 13, 2018

Thank you very much if everyone can help me, I'm becoming half crazy tryng to obtain something similar to what I expect.

Translate
LucMeekes23-Emerald IV
23-Emerald IV
April 13, 2018
Attach you worksheet please. (See announcement to the right of this for instructions).
Mathcad will not plot imaginary parts of complex numbers. You need to use the Re () and Im () functions to separate the real and imaginary parts.

Success!
Luc
Translate
-MFra-21-Topaz IIAnswer
21-Topaz II
April 13, 2018

Hi,

I used Mathcad 15 and I changed the data, to fit  to the graph you provided.

ANDREX_ITA answer.jpg

Translate
    Andrex_ITA1-VisitorAuthor
    1-Visitor
    April 13, 2018

    Solved! Thank you very much!

    I think I can't use the arg() function with the express version of prime 4.0, but at least I can plot the modulus correctly!

    Translate
    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    April 13, 2018

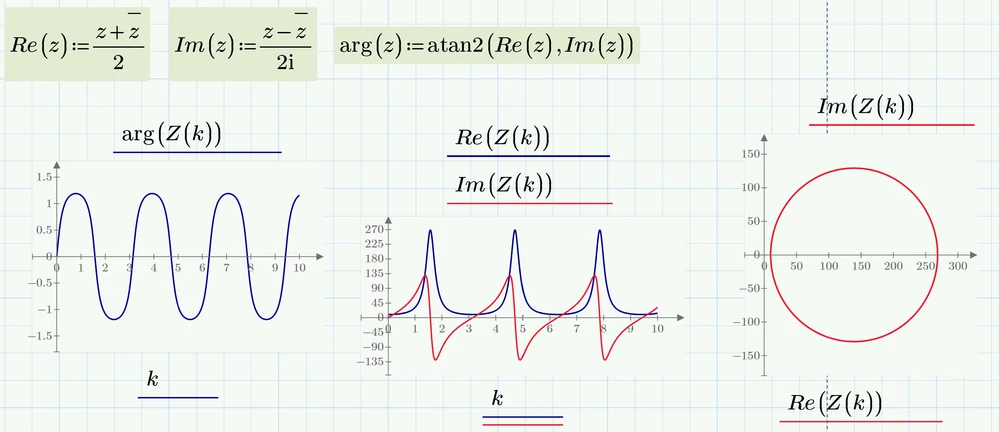

    You are right. Re(), Im() and arg() are considered "Premium" functions and are not available in Express.

    Fortunately the conjugate complex operator is not "Premium" and so you can easily define those "Premium" functions yourself in Prime Express:

    Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      April 13, 2018

      What your picture shows is that you have plotted the magnitude |Z(omea)| over omega.

      But what you ant to see ist the plot of Re(Z(omea)) and Im(Z(omea)). So simply write those expression instead of |Z(omea)|.

      You can see it done in MC15 in Francescos answer above. Re() and Im() are built-in functions you can use out of the box.

      Some additional remarks:

      .) You have better control over the step width of omega in the plot if you define a range variable for omega

      .) You may consider using units as well - thats what Mathcad and even Prime is really good at.

      Translate
