How to Obtain a Bode Plot in MATHCAD?

2 replies

W
Werner_E25-Diamond I
25-Diamond I
October 10, 2016

You should find quite some examples if you search the forum for "Bode Plot"

https://www.ptcusercommunity.com/search.jspa?q=bode+plot

-
-MFra-21-Topaz II
21-Topaz II
October 10, 2016

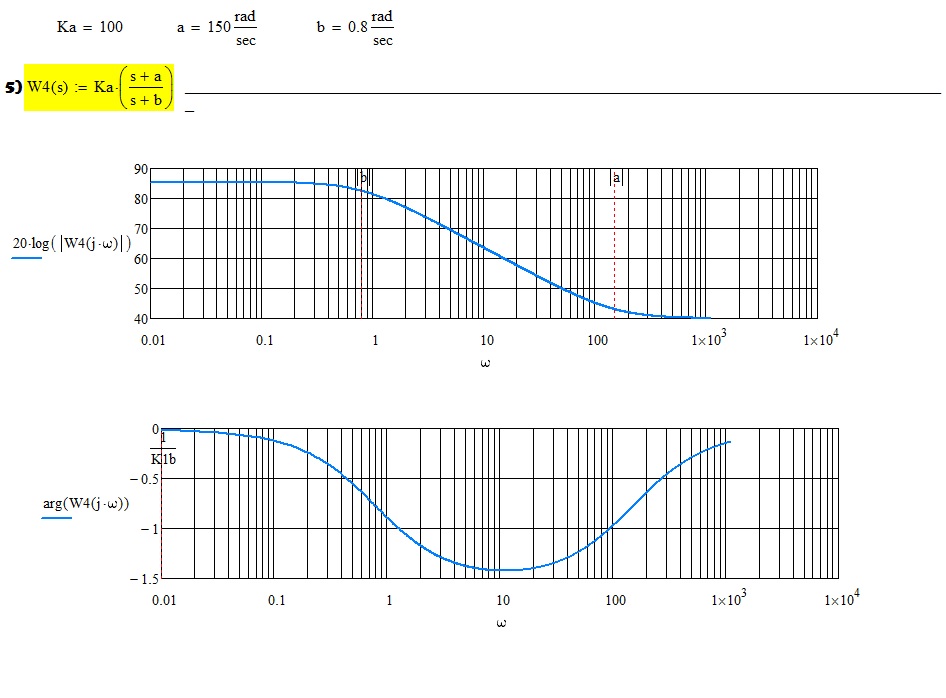

Looking at the following pictures should be very clear how to plot the Bode diagrams:
