Question

Chart component functionality

  • June 7, 2021
  • 2 replies
  • 1932 views

There is no placeholder for units in chart component The old plot had unit place holder for scaling the graph units This seems to be missing in MP 7



Also using the chart component in the input area they are not automatically Assigned units to x and y expression I cannot see Corresponding base units displayed which makes it even more difficult

What is the solution for this??



2 replies

L
LucMeekes23-Emerald IV
23-Emerald IV
June 7, 2021

Use the built in (old) plotting facility. The new chart component is a badly integrated third-party add-on.

Or was there a specific reason for you to use that new component...?



Success!
Luc

A
AS_97819678-GravelAuthor
8-Gravel
June 7, 2021

Yes I can use the old plot however wanted to go through the chart component to check the functionality so it seems like a huge missing in the new graphing functionality

L
LucMeekes23-Emerald IV
23-Emerald IV
June 7, 2021

Well, new...? It's in since Prime 5 and provides gridlines. But it has had complaints ever since.

See here, here, and here to name a few.



Success!
Luc



    JeffH1
    JeffH116-Pearl
    16-Pearl
    June 16, 2021

    The 2D Chart Component does not support units.

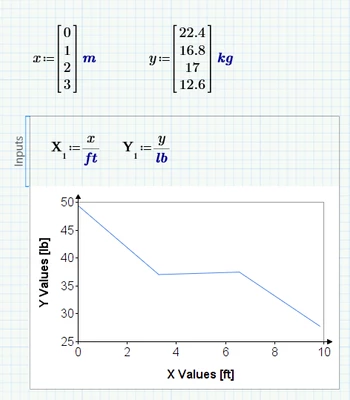

    The solution is to divide each of your expressions assigned to the X/Y pairs by the units that you want the values to be displayed.  For example,




    This is identical to how this was done in Legacy Mathcad.
