Hi all,

I have new using Mathcad and then I have a chart in excel. How I can do that in Mathcad? thanks so much.

Werner_E
Werner_EAnswer
25-Diamond I
November 6, 2019

Obviously the labels in the Excel chart are wrong and should be exchanged.

Prime can also find a regression fit (a different one than shown in the Excel plot) for you.


Worksheet in format P6 attached

View in thread

3 replies

LucMeekes23-Emerald IV
23-Emerald IV
November 6, 2019

Like this.


(See attached Prime 4 file)

Explanation:

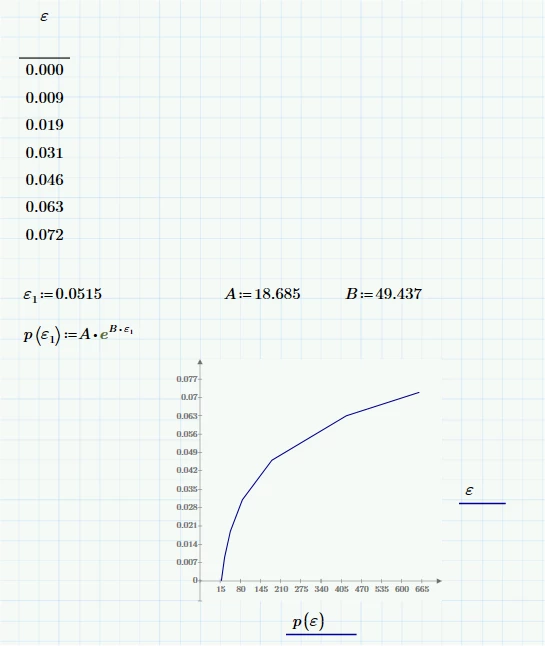

Mathcad is NOT a spreadsheet program. It's more like mathematics. In your case p is/should be a function. I defined it a function of parameter epsilon.1 (because you had used that in the exponent). Note that this epsilon.1 is now unrelated to the epsilon.1 you defined to be 0.0515 just above p.

Now I assumed that you wanted to plot epsilon (from the table in the upper left) versus p (as a function of this epsilon) so I changed the expressions along the axes of the chart accordingly.



Success!
Luc

Translate
    Werner_E
    Werner_E25-Diamond IAnswer
    25-Diamond I
    November 6, 2019

    Obviously the labels in the Excel chart are wrong and should be exchanged.

    Prime can also find a regression fit (a different one than shown in the Excel plot) for you.


    Worksheet in format P6 attached

    Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      November 6, 2019

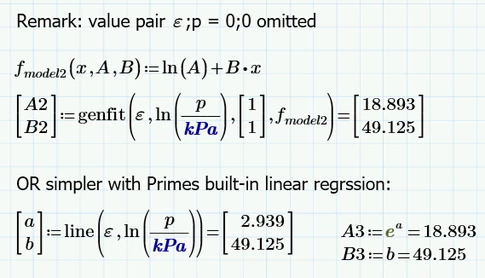

      Just a remark:

      If we omit the first data line (with epsilon and p zero) we get similar results as shown in the Excel image if apply a linear regression on the logarithmized data.
