Contour and surface plots

  • November 1, 2017
  • 4 replies
  • 2506 views
Hi everyone, please how do i add legend to contour and surface (3D) plots with Mathcad 14

4 replies

R
RichardJ19-Tanzanite
19-Tanzanite
November 1, 2017

What do you mean by a legend? That could mean something that labels each of several surfaces, but that wouldn't make a lot of sense for a contour plot. Or do you mean something that shows what the colors on a surface plot mean numerically?

S
smdsuleiman1-VisitorAuthor
1-Visitor
November 2, 2017
I meant something that shows what the colors on a surface plot represent numerically, likewise for contour plot. Thanks
V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
November 2, 2017

I have done so for one article - manual with Paint


T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
November 2, 2017

Hi,



You create a second surface plot for the legend using the minimum and maximum of your data and hide arguements on second plot.  From an earlier post.  Mathcad and PDF









T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
November 2, 2017

Hi,



You create a second surface plot for the legend using the minimum and maximum of your data and hide arguements on second plot.  From an earlier post.  Mathcad and PDF









V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
November 2, 2017

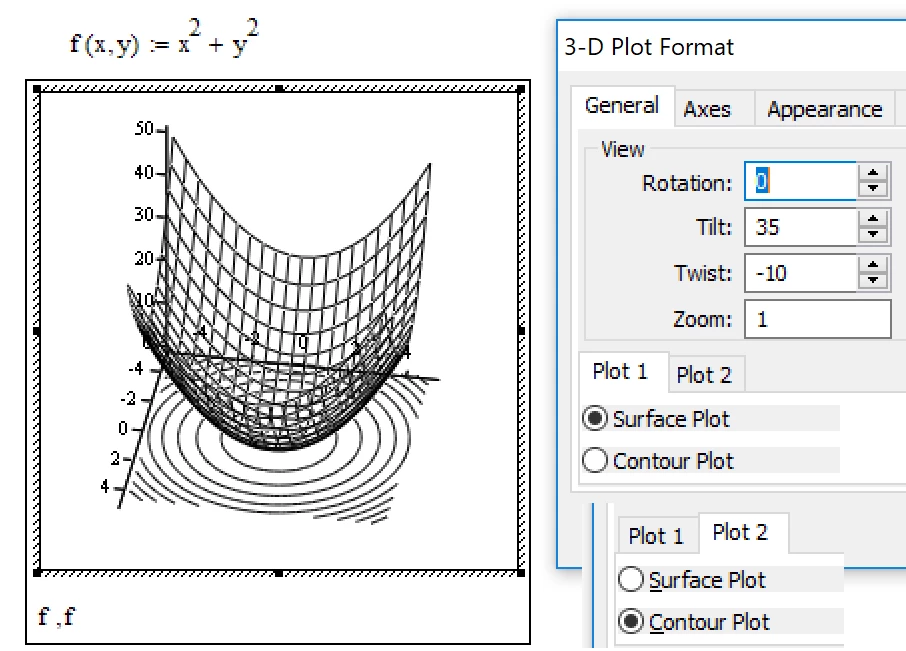

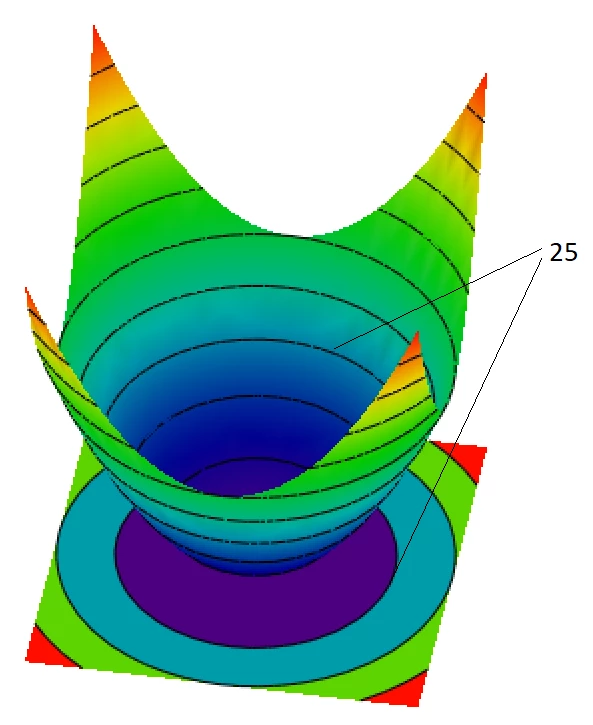

May be you thinscp.pngk about it
