Create a function for line graph values?

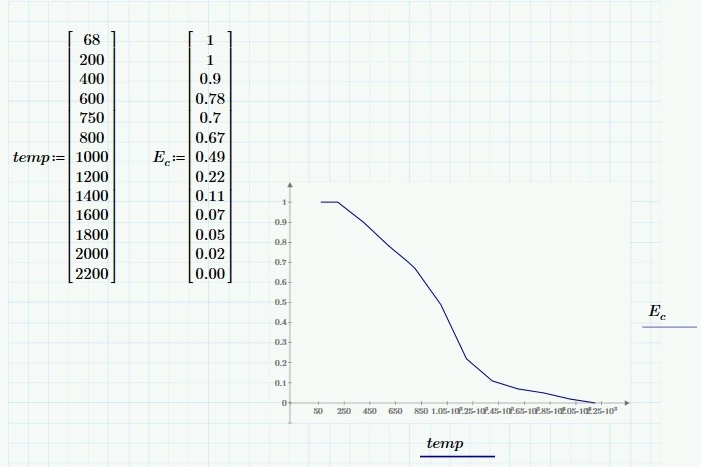

In the attached Mathcad prime 3.1 worksheet (along with screenshot) I've graphed two vectors in an X-Y plot. Is it possible to create a function such that the user can type in any value for temperature( within the highest and lowest value) and receive the temperature back?

This topic has been closed for replies.
LucMeekesAnswer
23-Emerald V
September 17, 2018

Yes, that function is



GetTemp(Temp):=Temp



You call the function with, e.g.

GetTemp(15)=

and it results in

GetTemp(15)=15.



That's what you asked, but not what you meant to ask....

I'm afraid you want a function where you give an Ec value, and get the correcponding temperature. That is partially possible.

I think the answer to your question lies with the function linterp(), look it up in the help, and see how it works.

The problem is that there is a temperature range where the Ec value is 1. What temperature would you expect to get for Ec=1?



Success!
Luc





View in thread

6 replies

LucMeekes23-Emerald VAnswer
23-Emerald V
September 17, 2018

Yes, that function is



GetTemp(Temp):=Temp



You call the function with, e.g.

GetTemp(15)=

and it results in

GetTemp(15)=15.



That's what you asked, but not what you meant to ask....

I'm afraid you want a function where you give an Ec value, and get the correcponding temperature. That is partially possible.

I think the answer to your question lies with the function linterp(), look it up in the help, and see how it works.

The problem is that there is a temperature range where the Ec value is 1. What temperature would you expect to get for Ec=1?



Success!
Luc





Translate
LucMeekes23-Emerald V
23-Emerald V
September 17, 2018

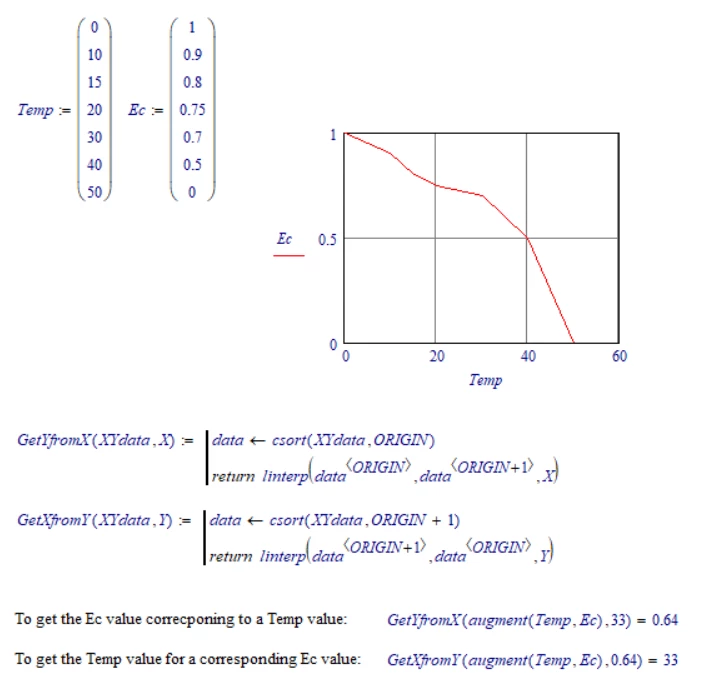

Here's an example using linterp().


Note that it works because there is a one-to-one relation between Temp and Ec values. If that is not the case (as in your example where Ec=1 on a range of Temp values), the linterp() funtion will complain. In that case using spline functions (see the answer below) may (...) help.



Success!

Luc



Translate
    rgunwaldsen15-Moonstone
    15-Moonstone
    September 17, 2018

    Mathcad provides a variety of methods for fitting functions to data.



    Attached worksheet fits cubic spline to your data.

    Translate
      dsochor1-VisitorAuthor
      1-Visitor
      September 17, 2018

      Thank you rgunwaldsen. What format (or version) is your worksheet; I'm unable to open it.

      Translate
      rgunwaldsen15-Moonstone
      15-Moonstone
      September 17, 2018

      I used Prime 5. PTC has made it impossible to copy/paste stuff into prior versions of Prime.



      Attached is "xps" printout.



      The functions used are straight out of the help example for "Example: Cubic Spline Interpolation

      Example: Cubic Spline Interpolation".

      Advantage for cubic spline fit for interpolation within range is that it provides "smooth" function with continuity of function and 1st/2nd derivatives.

      Roger

      Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      September 17, 2018

      My guess is that you want a function to calculate Ec from a given temp and not the other way round.

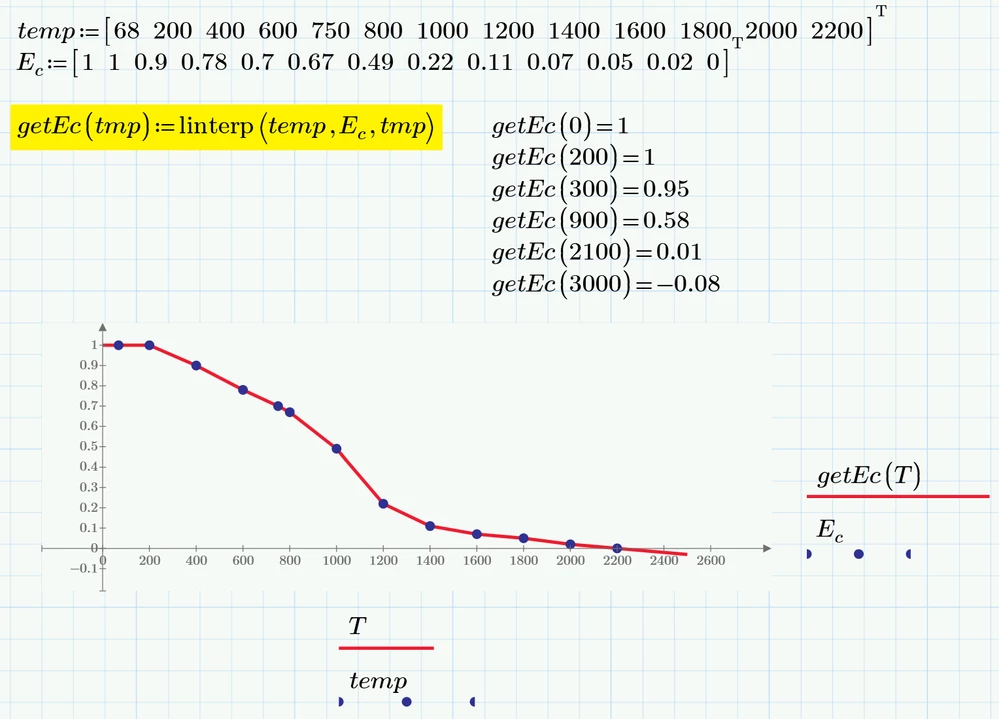

      If linear interpolation is sufficient you may do like this:


      Translate
