Creating Countour Plots (i.e. plot contours of f(x,y)=C in xy-plane)

  • July 16, 2012
  • 1 reply
  • 3059 views

I have a worksheet right now that defines a function (concentration) as a function of x and y - call it "Cg(x,y)"

I am looking to plot contours of constant concentration in the xy-plane, that is to say, set Cg = 0.8, 0.6, etc. and plot the resulting contours on a x-y graph.


I am new to the community and a beginner, for the most part, to Mathcad, so I really don't know even where to start. It is not a function that could be solved symbolically, therefore I think it might have to be plotted as a series of sequential points. If anyone can help tell me how to create such contour plots, that would be very much appreciated. Thank you!

Best answer by AlanStevens

There are several values for which your cg function doesn't converge, and the contour plot function doesn't like this. I've replaced these with zero in the attached (this might or might not be acceptable to you) - see attached.

Also you needed to change the range of the Quickplot data.

Alan

1 reply

A
AlanStevens19-Tanzanite
19-Tanzanite
July 16, 2012

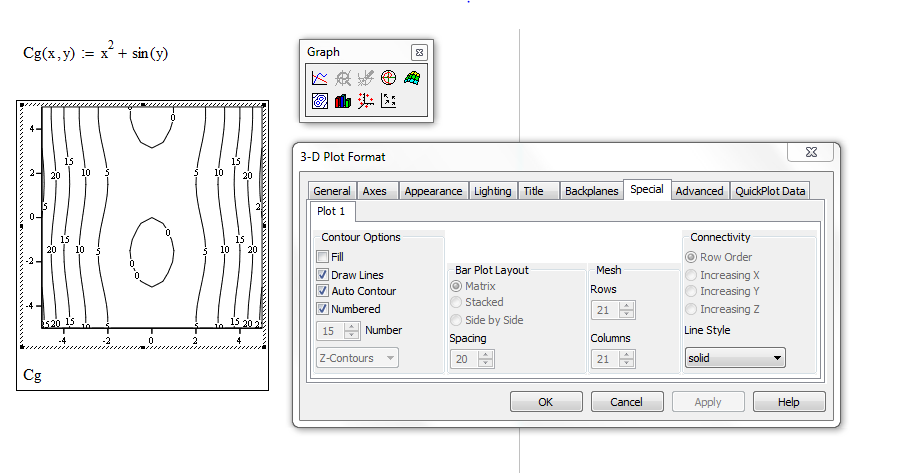

Something like this:


Alan

P
ptc-46567271-VisitorAuthor
1-Visitor
July 16, 2012

Yes, that is precisely what I am looking for and figured out how to get that type of plot now, but how do I specify the countours I want? For instance in your plot you have contours of Cg(x,y)=0,5,10,15,20... plotted. I am looking to get contours of Cg(x,y)=0.9, 0.8, 0.7...

A
AlanStevens19-Tanzanite
19-Tanzanite
July 16, 2012

Ethan Ambroziak wrote:

... I am looking to get contours of Cg(x,y)=0.9, 0.8, 0.7...

Try it with your function and see if Mathcad comes up with suitable values. I'm not sure you can specify exactly which values it must use!

Post your function (with the ranges of x and y of interest) and I (or someone else) might be able to produce something acceptable to you.

Alan
