Creating Path in mathcad

  • April 27, 2019
  • 8 replies
  • 9077 views

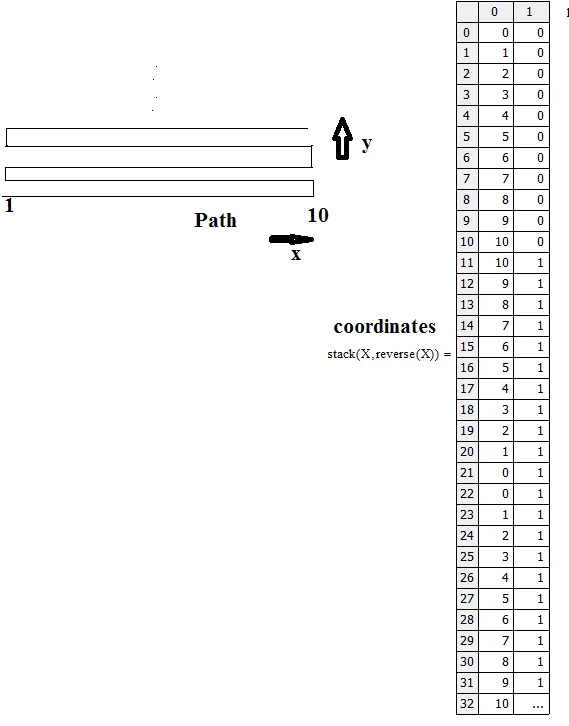

I need to create paths(creating matrix of coordinates) just check image that i have given below is there any simple method to solve this ? this graph has to be plot in x and y coordinates.

8 replies

T
terryhendicott21-Topaz II
21-Topaz II
April 27, 2019

Hi,



Please include your worksheet?



Cheers

Terry

M
Mathcad1111-VisitorAuthor
1-Visitor
April 27, 2019

it's just a simple coordinating plot nothing much involves in that mathcad file

W
Werner_E25-Diamond I
25-Diamond I
April 27, 2019

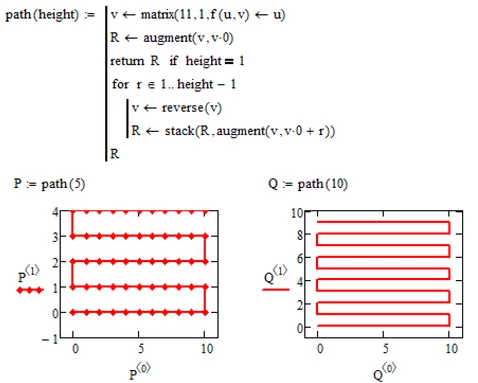

Here is one possible way to achieve what you are looking for:


But if you are only looking for a plot like the figure to the right (with out the intermediate points and with an even number of vertical lines) there might be easier ways to achieve.

    M
    Mathcad1111-VisitorAuthor
    1-Visitor
    April 27, 2019

    But how to control the values, i mean in x and y coordinates values? for example if i want to change from 0.1 to 1 or some other values in both coordinates..

    W
    Werner_E25-Diamond I
    25-Diamond I
    April 27, 2019
    @Mathcad111 wrote:

    But how to control the values, i mean in x and y coordinates values? for example if i want to change from 0.1 to 1 or some other values in both coordinates..

    Not sure what you mean.

    First you have to state if you really need eleven value across horizontally or if start- and endpoint of each horizontal line would be enough.

    And then - which value(s) would you like to change? The 0 to 10 across or the upward step of 1?
