The dimension of stiffness is force per length or mass per time^2.



So you would have to change the unit for "k" to something like "N/m" or "kg/s^2" for the solve block to work.



But using the initial conditions you provide, the solution x(t) trivially would be constant zero.
I guess that you would have to change one of x.0 or x'.0 from zero to a non-zero value.

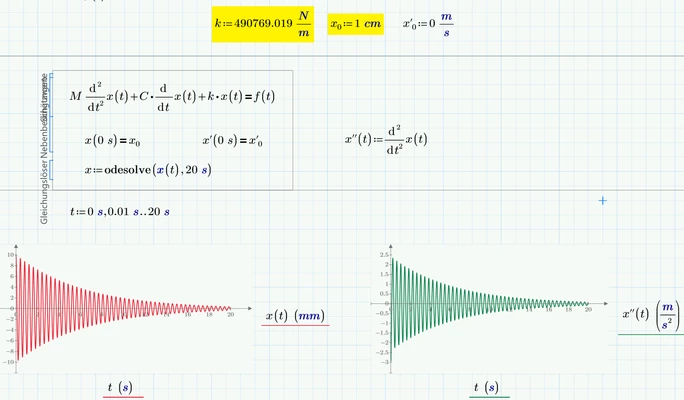

Here's an example:


BTW, you may already have noticed - the diagram components you are trying to use are not unit aware

View in thread

5 replies

LucMeekes23-Emerald IV
23-Emerald IV
April 14, 2020

The units of

M * z''

C * z'

k * z

Must be the same. If the units of C and M are OK,  then that of k is wrong. Or the equation is wrong.

The unit of z is m, that of z' is m/s and that of z'' is m/s^2.



Success!

Luc.



Translate
SPRstructur15-MoonstoneAuthor
15-Moonstone
April 14, 2020

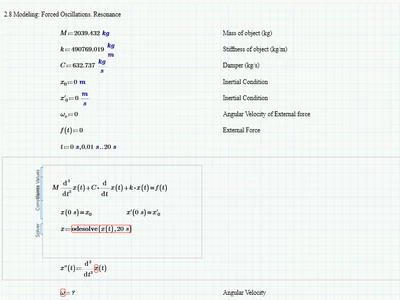

could you correct for me in attachment above?
