Dynamic of structure: Mode shape

  • April 30, 2020
  • 2 replies
  • 2150 views

Dear all

I have a bit about matrix and I try to understand the dynamic of building structure , could you all share me the sheet of calculate mode shape of building as shown in example-1 attachment? Do for me
big thank all







    2 replies

    V
    24-Ruby III
    VladimirN24-Ruby III
    24-Ruby III
    April 30, 2020

    Try to look at "DynamAssist" for Mathcad: http://www.dynamassist.com/

    T
    21-Topaz II
    terryhendicott21-Topaz II
    21-Topaz II
    May 1, 2020

    Hi,

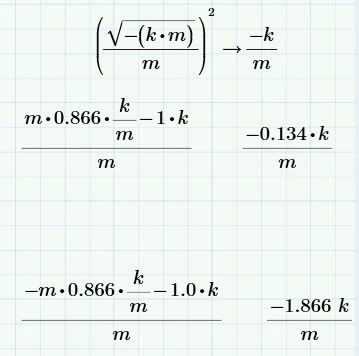

    You can construct the matrices for lateral stiffness and mass.  You can construct the equation 11 and solve for omega the natural frequencies. Prime does not simplify the three values as far as it can you need to do this manually to get the values in the example.






    To solve for mode shape the example solves by inspection.  You cannot do that in Prime?

    Still working on it!



    Cheers

    Terry

      W
      Werner_E25-Diamond I
      25-Diamond I
      May 1, 2020
      @terryhendicott wrote:

      Prime does not simplify the three values as far as it can

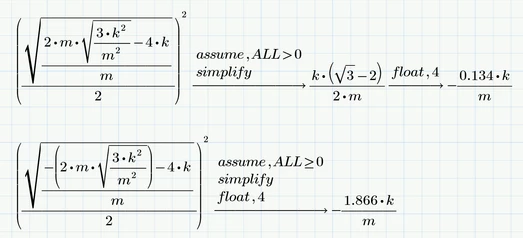

      You may consider using an appropriate "assume" modifier and  don't use "float" too soon 😉
