Error message "unable to plot this too many points

  • March 9, 2018
  • 2 replies
  • 5436 views

In my 2D plot when I process about half million time steps I get an error message:

"Unable to plot this too many points"



Any idea or clue where is wrong?



Regards

2 replies

W
Werner_E25-Diamond I
25-Diamond I
March 9, 2018

The number of points in a 2D plot IS limited. The limit varies depending on the version of Mathcad you are using (Mathad 15, Prime 2, Prime 3, Prime4).

In Mathcad 15 the limit is 5*10^5, in Prime 4 the limit is 2*10^6



Simply reduce the step width for plotting - you won't be able to see difference in the plot anyway.

V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
March 9, 2018

Numbers of points in Prime 4


W
Werner_E25-Diamond I
25-Diamond I
March 9, 2018

Hi Valery!

Your image is, again, far too big, IMHO!!

Images that big clutter the threads and make them much harder to read and unclear. Images much smaller would be much better, streamlining the thread and better to navigate.

You probably use a 4K display like me and thats the reason for the big pictures,

If you don't want to go through the hassle of post processing the screenshots to shrink them, you could at least make them smaller when you insert them here - just resize them  with the mouse after you have inserted them with the "Photos" button and before you press "Post". Its quick and easy - it just has to be done.

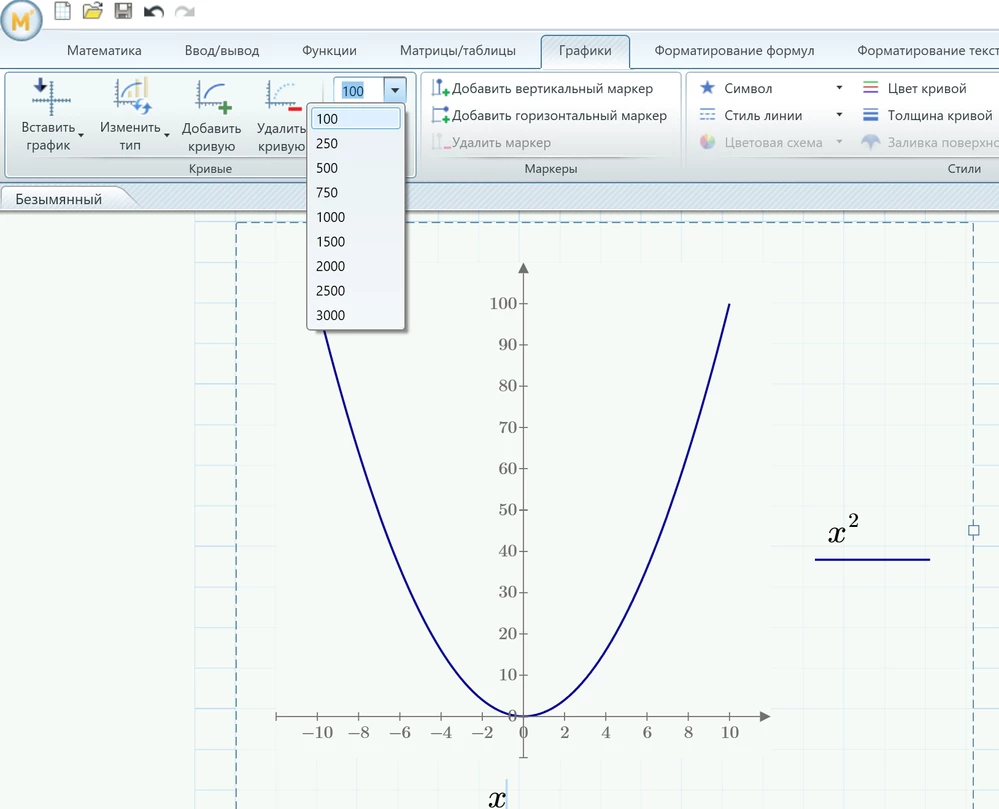

What your picture shows is just a number of presets for quickplots and does not apply when you provide your own range variable or plot one vector over another.

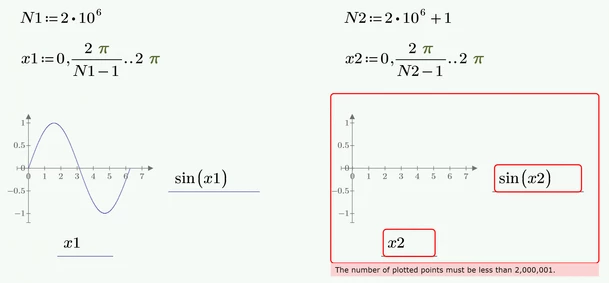

As i have already written, the limit in Prime 4 is 2 million points for the whole plot.


Limits in older Prime versions were much smaller,  sometimes even smaller than the half million points allowed in a Mathcad 15 plot.




V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
March 9, 2018

Please attach your worksheet in the archive to the message.

R
richardm551-VisitorAuthor
1-Visitor
March 12, 2018

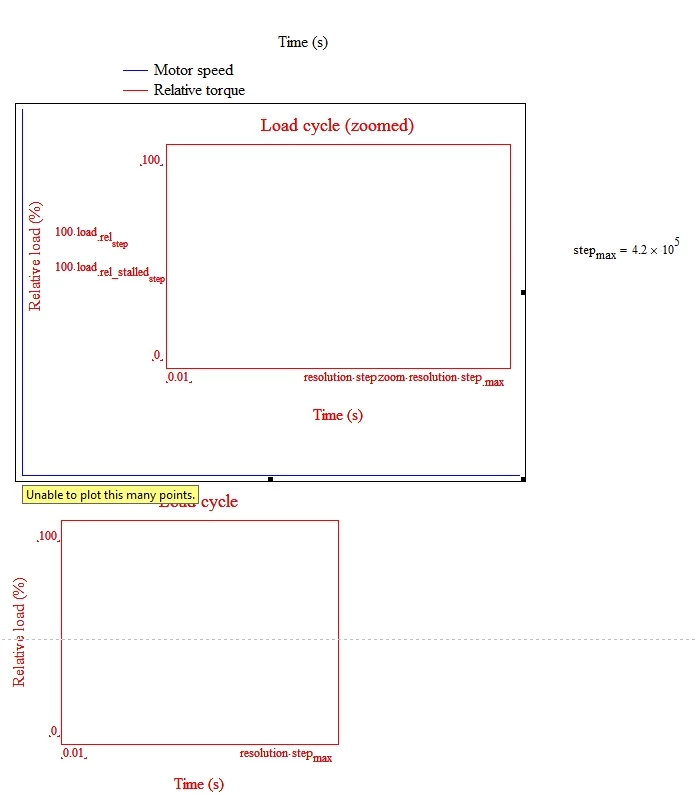

Here is a picture showing this.



Maximum points is 420141 and there is Mathcad 15

W
Werner_E25-Diamond I
25-Diamond I
March 12, 2018
@richardm55 wrote:

Here is a picture showing this.



Maximum points is 420141 and there is Mathcad 15

Can't be checked by just looking at your pictures.

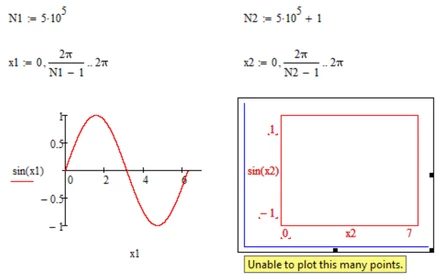

As I already wrote and showed the limit in MC15 is definitely exactly 500000 points.

This limit applies to the whole plot  window and you are probably trying to plot two curves consisting of 420141 points each making for a total of 840282 points which sure exceeds this limit.
