Find the values matching the boundary defined by vectors

  • September 10, 2025
  • 1 reply
  • 561 views

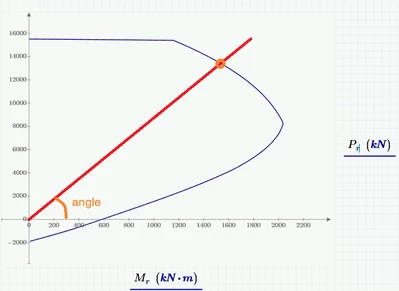

I have the following boundary and an angle with the origin






Pr and Mr are 1 x n vectors. I need to find, by interpolation, what is the value of Pr and Mr that correspond to the angle. what is the easiest way to do that on Mathcad?

I am using Mathcad prime 9.0.0.0. Attached the file

Best answer by Werner_E

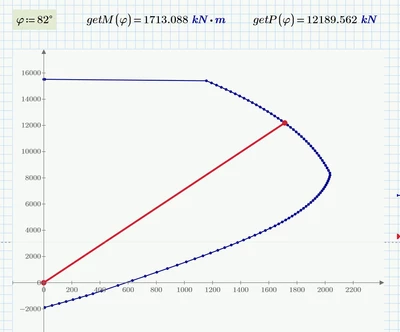

Here is the solution given the assumptions made in my previous reply.




Prime 9 sheet attached

1 reply

W
Werner_E25-Diamond I
25-Diamond I
September 10, 2025

Can you post a worksheet?

And say which version of Prime you are using (especially important if you are not using the latest version)



One way I can think of is to calculate a vector Phi with all angles corresponding to all points (M;P).

Then you can create two interpolating functions (may linear interpolation with "linterp") M(phi) and P(phi) using the vectors Phi and M , and Phi and P respective. Now you would have functions which return M and P values for any given angle phi.

    N
    netoprax10-MarbleAuthor
    10-Marble
    September 10, 2025

    I edited the post to include both: file and version. Thanks!

    W
    Werner_E25-Diamond I
    25-Diamond I
    September 10, 2025

    OK, when you talk about the angle you have to be aware that this angle is dependent on the units the quantities are displayed in.

    Should a point like #10  M=1423.44 kNm,  P=14074.94 kN  correspond to the angle 84.225 °  ??

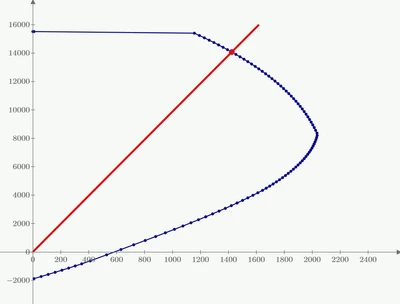

    It won't look that way in the plot because different scales are used on both axis:
