Fit function to plotted graph (that resembles the shape of a haft circle)

Hi

I have plotted the results from two vectors. The graph resembles the shape of a half circle and I would like to find a function that fits the data so intersection points can be determined for other functions.

I have tried many different curve-fitting tools but can't find a proper one that works.



I'm  thankful for any help!









Werner_E
Werner_EAnswer
25-Diamond I
February 20, 2023

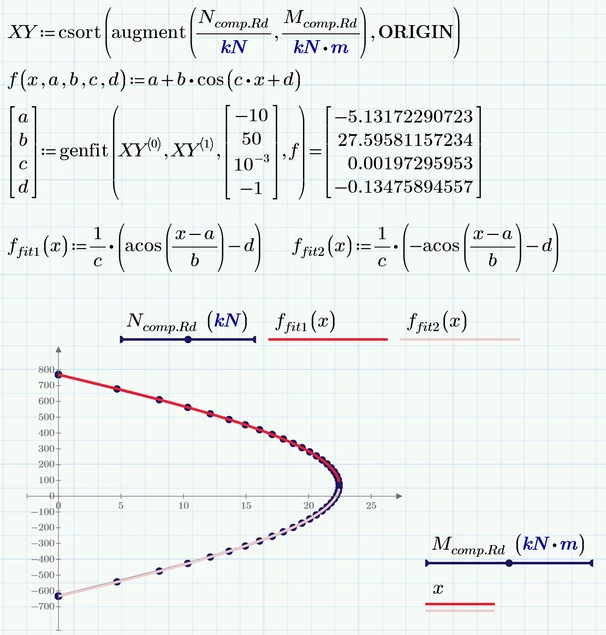

I get slightly different values using CurveExpert Pro


And I get similar values in Prime using genfit() (though genfit is VERY sensible wrt the guess values).


BTW, as we can see far to the right of the Prime sheet how the data is actually calculated it should not surprise that a sinusoidal fit is suggested by CurveExpert 😉



View in thread

17 replies

Fred_Kohlhepp23-Emerald I
23-Emerald I
February 20, 2023

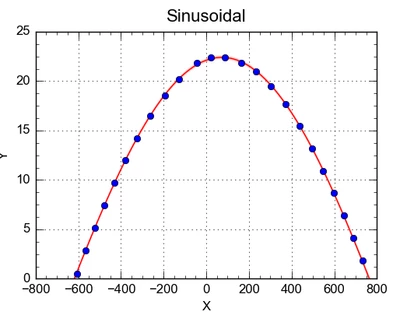

If I digitize the data, then rotate it so X is a function of Y, and send it to CurveExpert,, I get


Which has the form


Prime 4 attached





Translate
    Werner_E
    Werner_E25-Diamond IAnswer
    25-Diamond I
    February 20, 2023

    I get slightly different values using CurveExpert Pro


    And I get similar values in Prime using genfit() (though genfit is VERY sensible wrt the guess values).


    BTW, as we can see far to the right of the Prime sheet how the data is actually calculated it should not surprise that a sinusoidal fit is suggested by CurveExpert 😉



    Translate
    ksk_1059423212-AmethystAuthor
    12-Amethyst
    February 21, 2023

    Wow! Thanks for the good explanation!

    Translate
    Fred_Kohlhepp23-Emerald I
    23-Emerald I
    February 24, 2023

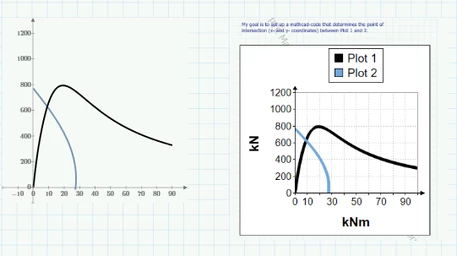

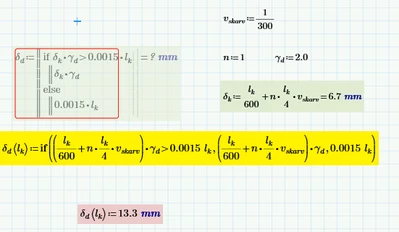

    It is possible to define functions rather than vectors for your plots:


    I've done it in the attached Prime 8 Express sheet.

    Attempts to solve for the intersection (in Express) have failed; maybe someone with a solve block capability?

    Note that it's possible to create functions only using the parameter "y", which would result in a single intersection point.  I introduced a second variable (l_k) hoping to be able to trace the intersection point as a function of that variable.


    If only one point is required . . .



    Good Luck!



    Translate
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      February 24, 2023

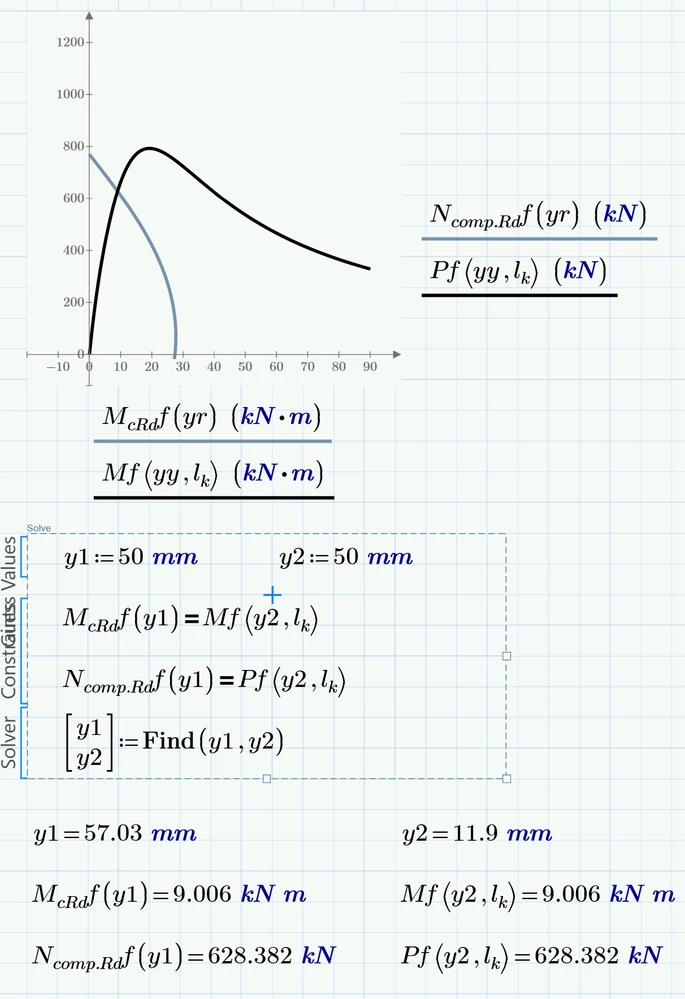

      Here you are ...

      As solve block does the job pretty well but is a bit  sensitive wrt the guess values






      Translate
