Hi,



Messed about with this a long time ago.  Came to the conclusion that a professional software suite like SpaceGass, Microstran etc were better.  The scripting in the file chooses steel sections.

The file does all you asked.

Cheers

Terry

Translate
    SPRstructur15-MoonstoneAuthor
    15-Moonstone
    May 9, 2020

    Dear

    terryhendicott

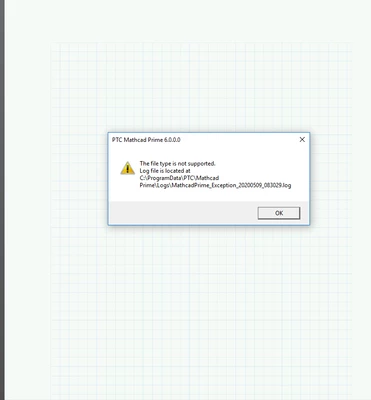

    it can not open it




    Translate
    terryhendicott21-Topaz II
    21-Topaz II
    May 9, 2020

    Hi,



    It is an old Mathcad file and is in a very old format *.mcd.

    I have resaved as Mathcad 15 *.xmcd.

    You need to convert Mathcad 15 *.xmcd to Prime *.mcdx with the supplied converter.

    The converter is on the ribbon header at Input/Output | PTC Mathcad Worksheets | XMCD,MCD Converter.



    Not sure how the converter will go I leave that to you.



    Cheers

    Terry





    Translate
    StuartBruff23-Emerald V
    23-Emerald V
    May 9, 2020

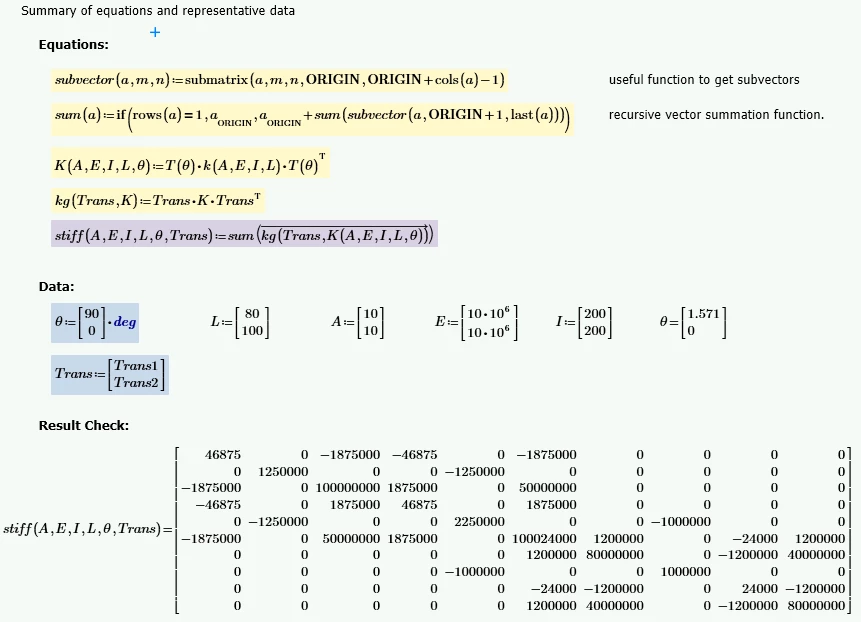

    I'm probably missing the point here, but is the attached along the lines of what you want?



    2020 05 09 C.png



    Stuart

    Translate
      terryhendicott21-Topaz II
      21-Topaz II
      May 9, 2020

      Hi



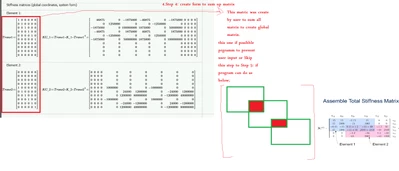

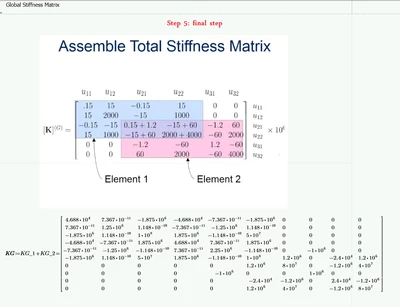

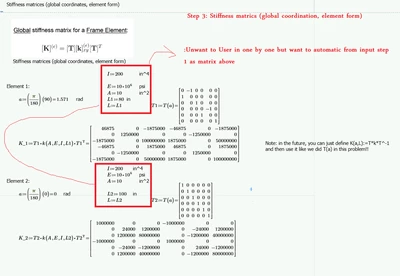

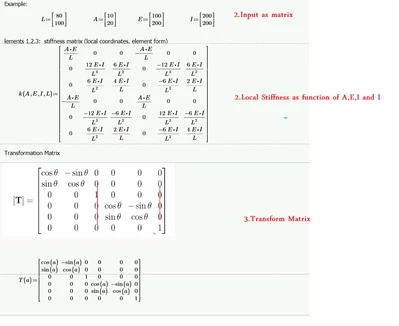

      The submitter has asked two questions the second being how to get the global stiffness of a frame with 10 nodes and 12 members then condense that to the simplified form in his second example.   My answer shows how to get this global stiffness matrix.




      Cheers

      Terry

      Translate
        StuartBruff23-Emerald V
        23-Emerald V
        May 10, 2020
        I thought it looked a little too simple! 🙂

        Stuart

        (I've only got Prime Express, so have to play within its limits, ie no programming or importing of mcd/xmcd files)
        Translate
          terryhendicott21-Topaz II
          21-Topaz II
          May 10, 2020

          Hi,



          I have changed the file to Prime.

          I have fixed the plotting of input, still have to fix plotting of results.

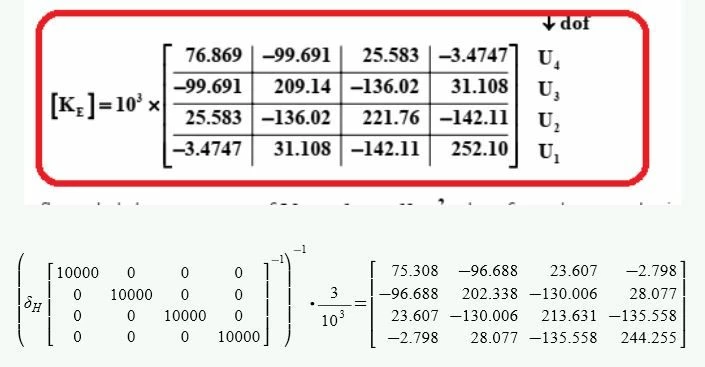

          I have shown how to extract the horizontal deflections under horizontal force at each storey into a smaller matrix delta H.

          I have shown how to use this sampled deflection matrix to get the required K.E


          Translate
            SPRstructur15-MoonstoneAuthor
            15-Moonstone
            May 10, 2020

            terryhendicott  great work 😍😍😍👍👍👍

            Many thank

            Translate
            terryhendicott21-Topaz II
            21-Topaz II
            May 19, 2020

            Hi,



            I have added some wording to make understanding the file easier.



            Cheers

            Terry

            Translate
