grafico a partir de matrix

  • August 12, 2024
  • 1 reply
  • 1244 views

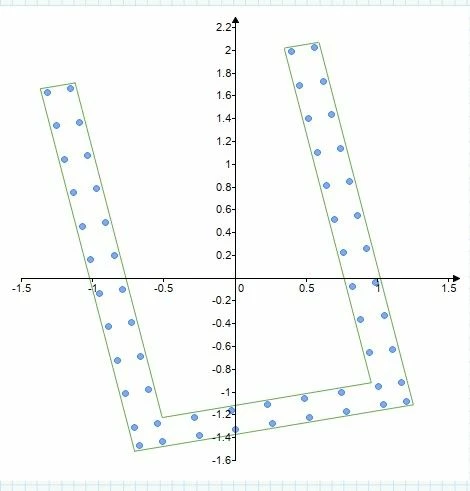

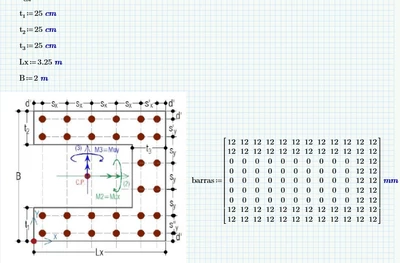

Dear community friends, I have a problem generating an automatic graph from the data of a matrix as shown in the spreadsheet. Mathcad Prime V.8.0.0



Translated by the Community Moderation using Google Translate



Estimados amigos de la comunidad, tengo una problema al generar un gráfico automático a partir de los datos de una matriz tal como se muestra en la hoja de calculo. Mathcad Prime V.8.0.0




Best answer by terryhendicott

Tried the file with t1, t2, t3 set to 45cm in turn and found it does not plot OK.

Swap the definitions of S'y and S''y

That is S'y is associated with t1 and S''y is associated with t2



The enclosed versiom [v2] of the file is then OK


1 reply

T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
August 13, 2024

Hi,

Version 8.0.0.0 file below.

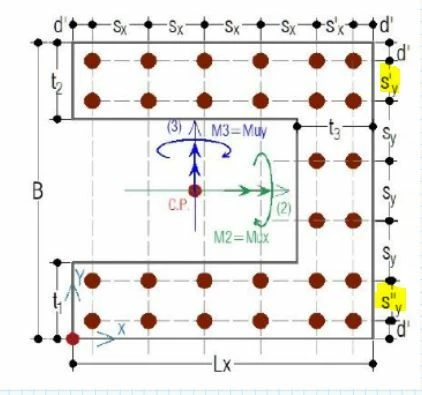

Calculates the elastic centre of transformed section and aligns with neutral axis.

Should have more wording to explain what has been done


T
21-Topaz II
terryhendicott21-Topaz IIAnswer
21-Topaz II
August 13, 2024

Tried the file with t1, t2, t3 set to 45cm in turn and found it does not plot OK.

Swap the definitions of S'y and S''y

That is S'y is associated with t1 and S''y is associated with t2



The enclosed versiom [v2] of the file is then OK
