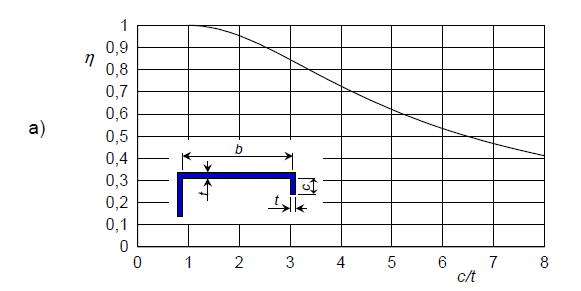

Hi.   How can I make the graph in Mathcad prime similar to this figure. Do I have a missing formula ?

Best answer by Werner_E

Lex Dante wrote:

I have here a graph where grid line are not symmetrical. Are this possible to create  using Mathcad prime  ?

Yes, its possible!

Regards

Werner

5 replies

V
ValeryOchkov24-Ruby IV
24-Ruby IV
November 26, 2015

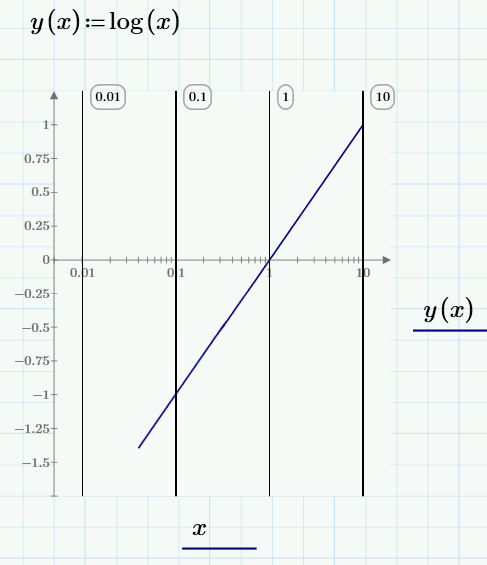

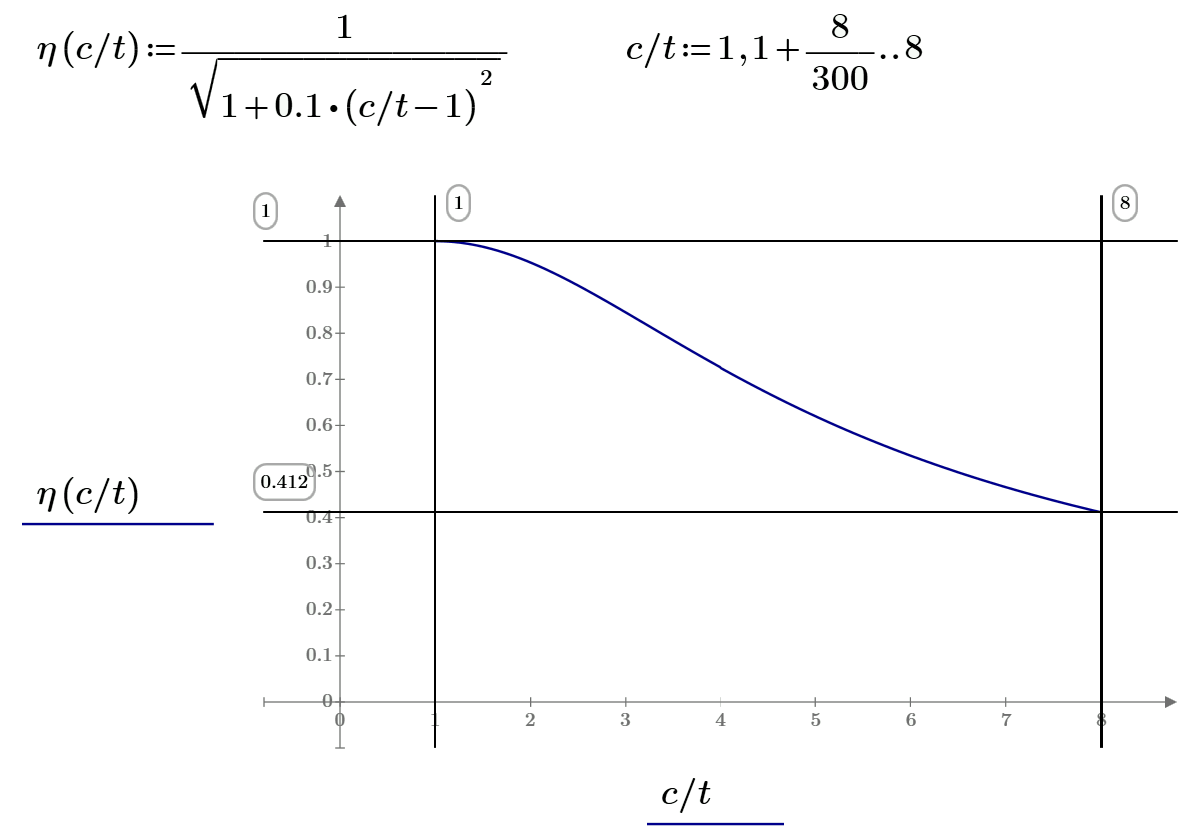

See please the picture and Mathcad Prime 3 sheet in attach!

Do you need grid?


L
ldante11-GarnetAuthor
11-Garnet
November 26, 2015

thanks

L
ldante11-GarnetAuthor
11-Garnet
November 26, 2015

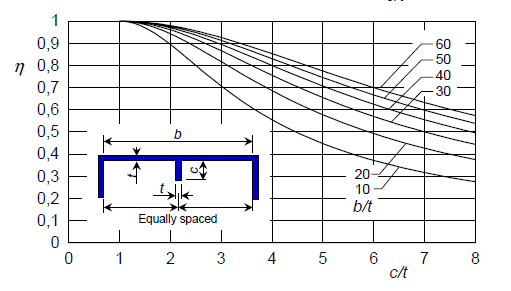

I appreciated your help . Can you please help me bout this one also

L
ldante11-GarnetAuthor
11-Garnet
November 26, 2015

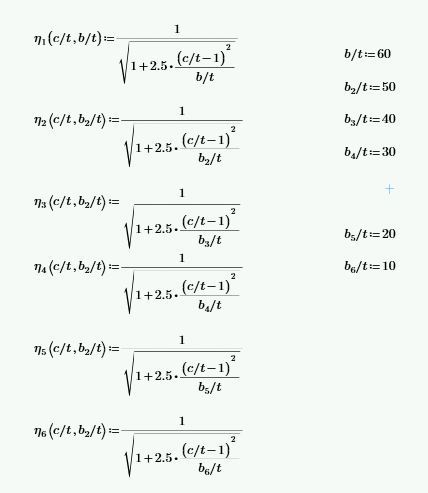

Is this correct . is there any simplified method of this case ?

V
ValeryOchkov24-Ruby IV
24-Ruby IV
November 26, 2015

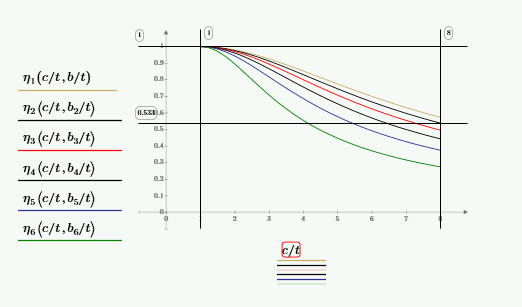

See please Re: Variable name that is a ratio

L
ldante11-GarnetAuthor
11-Garnet
November 26, 2015

thank you once again.

L
ldante11-GarnetAuthor
11-Garnet
December 17, 2015

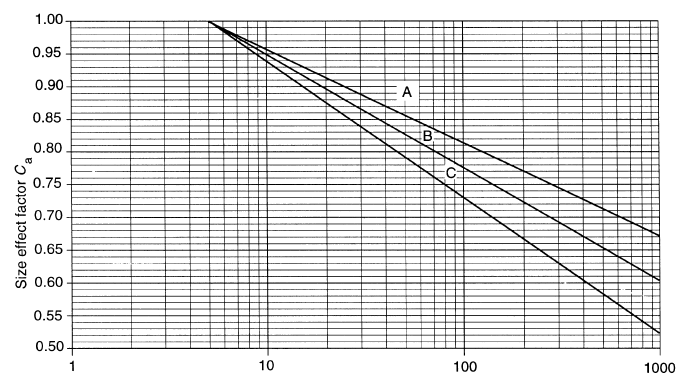

I have here a graph where grid line are not symmetrical. Are this possible to create  using Mathcad prime  ?

V
ValeryOchkov24-Ruby IV
24-Ruby IV
December 17, 2015

Log scale is in Mathcad Prime, but no grid

Or

L
ldante11-GarnetAuthor
11-Garnet
December 17, 2015

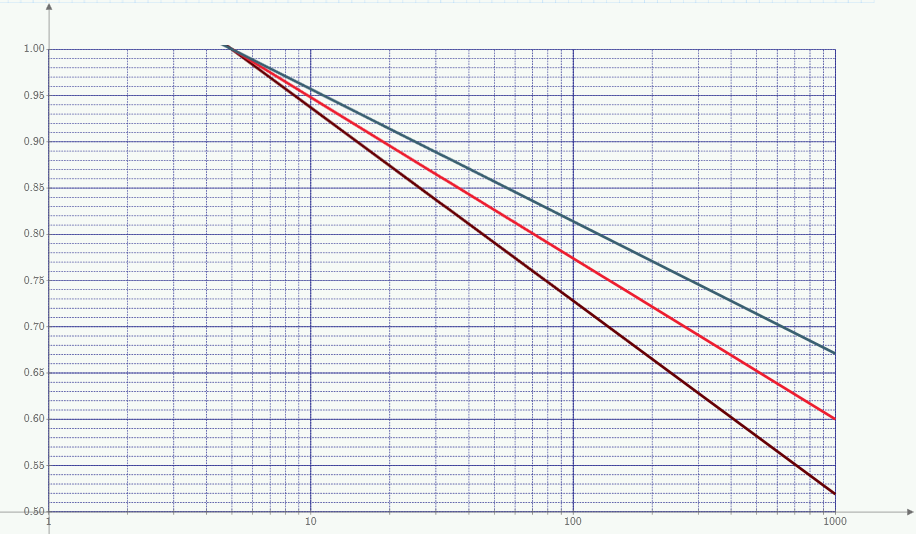

How can I apply this to my graph .can you please help me ?

Thank you

L
ldante11-GarnetAuthor
11-Garnet
December 20, 2015

Good day ..

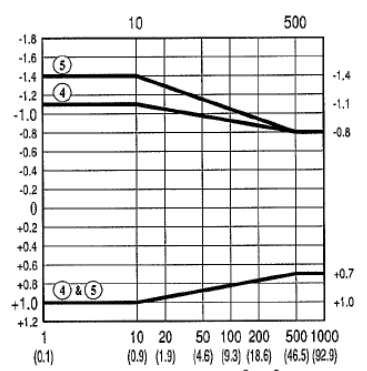

I have another graph where the vertical axis started from negative (-1.8) down to (+1.2) . is this also needs a special command to reverse the vertical graph as shown in the picture?

W
Werner_E25-Diamond I
25-Diamond I
December 20, 2015

Lex Dante wrote:

Good day ..

I have another graph where the vertical axis started from negative (-1.8) down to (+1.2) . is this also needs a special command to reverse the vertical graph as shown in the picture?

Unfortunately Prime is very limited when it comes to plotting. Unlike in Mathcad 15 (and below) we cannot reverse the axis in Prime. There is no special command or option available to do so.
