help with plotting piecewise function

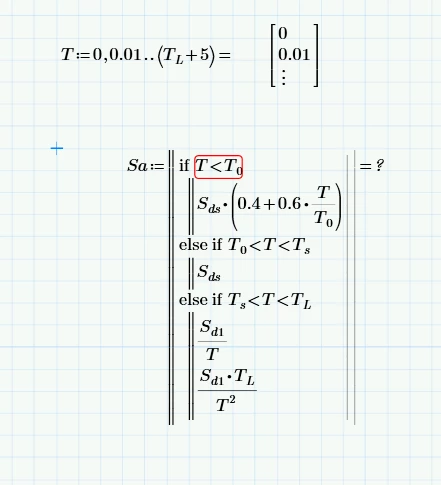

Hi, can someone help me, I cannot figure out what I am doing wrong in this.  The error I get is that the value must be a scalar.


terryhendicottAnswer
21-Topaz II
May 17, 2019

Hi,

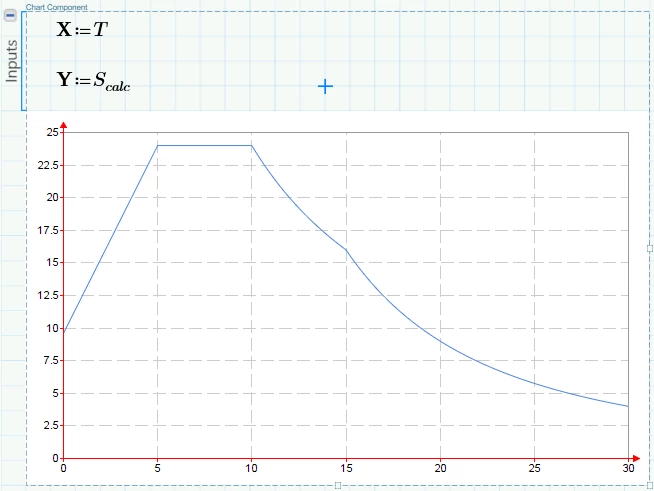

Here is chart using the Chart Component of Prime5




View in thread

6 replies

terryhendicott21-Topaz II
21-Topaz II
May 17, 2019

Hi,

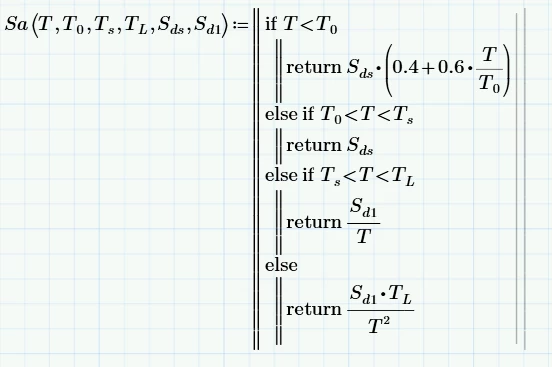

Because you have not included the Prime sheet I have expressed the function in terms of all the input values.

Not sure if you are using Prime 15 or 14?

In your sheet T is a range variable so the comparison with a single variable T0 cannot be done.






Cheers

Terry

Translate
rb31-VisitorAuthor
1-Visitor
May 17, 2019

Hi Terry,  I'm using Prime 5 and I'm ultimately trying to plot the piecewise function that I was attempting to define with the code posted.  I made those changes, but it still is not working.  T0 is a single value, where T is an array, I tried a while loop to populate Sa but I could not get that to work either.  I'm just trying to populate Sa with values and then plot Sa and T.

Translate
terryhendicott21-Topaz II
21-Topaz II
May 17, 2019

Hi

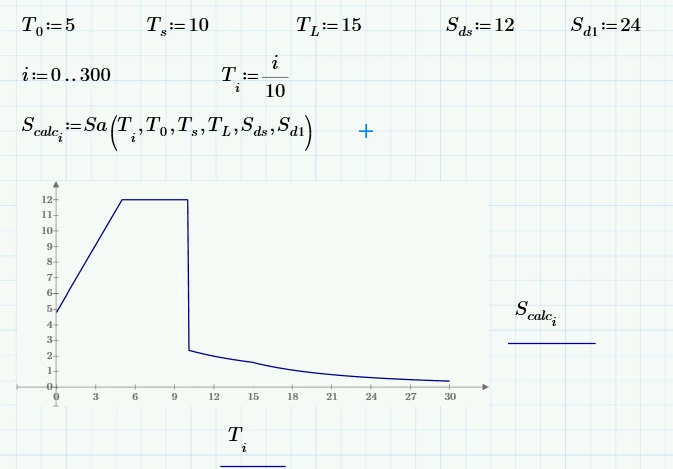

Here is the plot with some values assigned to the variables.  T is a vector of values.




Translate
terryhendicott21-Topaz II
21-Topaz II
May 17, 2019

Hi,

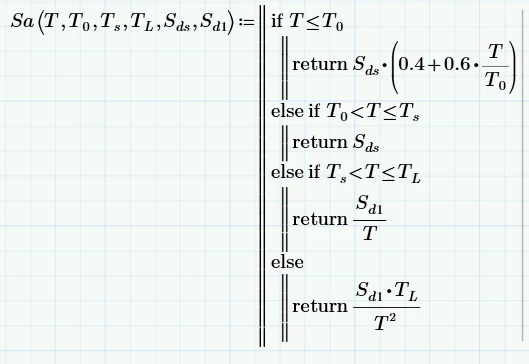

Forgot you also need to include what happens when T is equal to the comparison boundary limits.
