How can I implement this on MathCad?

Hi, it was requested on my company to focus on Mathcad for calculation of new designs.

It is a great tool, but how can I replace Excel in a inductor design like the image attached?

Where I need/can see the different designs all together to evaluate them.

Here we use Mathcad Prime 10.0.1.0.

Thank you for the support.

21-Topaz II

Here is version 10

21-Topaz II

Hi,

Use an input table to enter inputs,

Use a matrix to show inputs and calculated values.

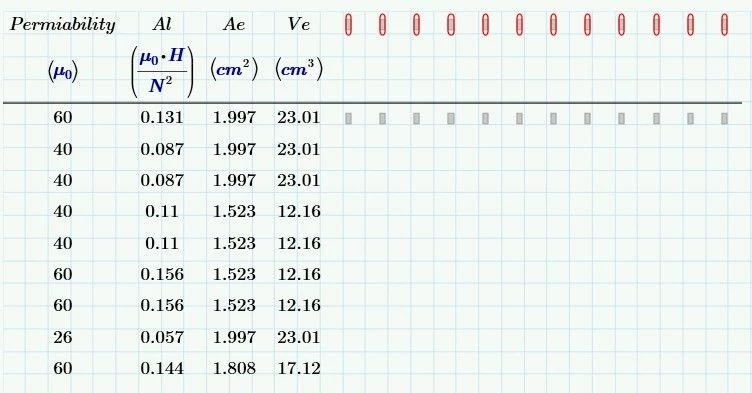

Like this. You actually get the units in Mathcad. The columns of the input table are variable names for a column vector of values.

To display it identical to the spreadsheet.

Create a matrix by augmenting all the column vectors, Then transpose the matrix

If the spreadsheet is not propriety can you upload it so this can be shown?

Cheers

Terry

Translate

Author

1-Visitor

Sure, it is just inductor formulas as example. I removed any information not needed from it.
