How to construct in Mathcad this kind of pulse signal with these characteristics?

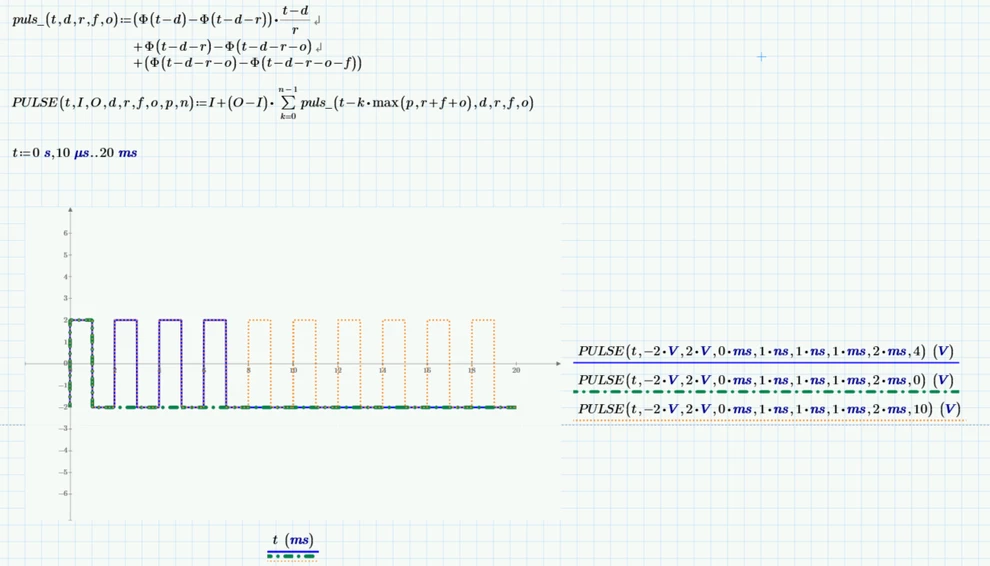

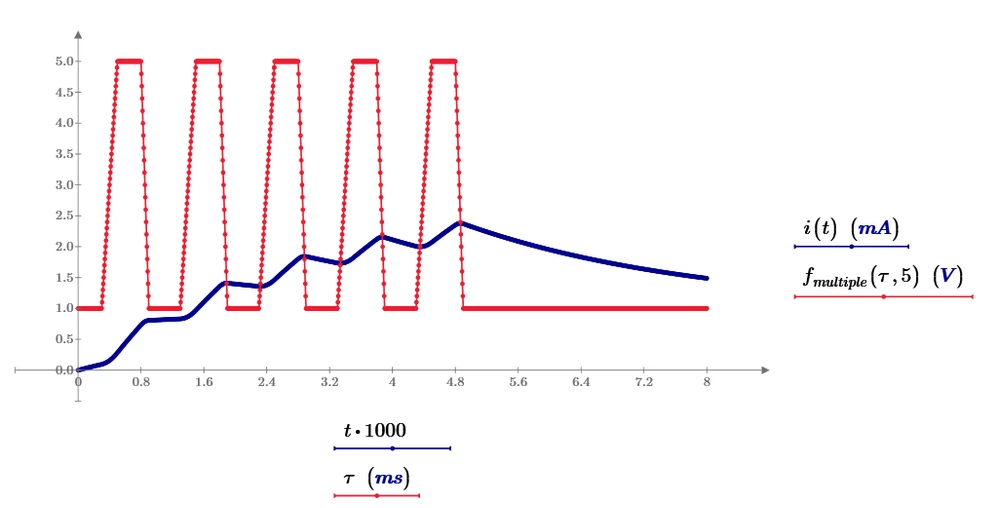

RL circuit. R=1 kohm, L=3 H.

---

@LucMeekes wrote:

We've been through similar stuff before, see https://community.ptc.com/t5/Mathcad/Creation-of-Triangle-Waveform-and-Circuit-Analysis-with-Laplace/m-p/713269

And especially this one, you started yourself: https://community.ptc.com/t5/Mathcad/Square-Sine-and-PiceWise-Linear-Waves-Functions/m-p/718121#M194834



Success!
Luc

---

That was exactly the reason why I requested Cornel NOT to ask for the Laplace transform in a follow up question (I was pretty sure he would do so) 🙂
After all he was just asking for the construction of the signal, nothing more.

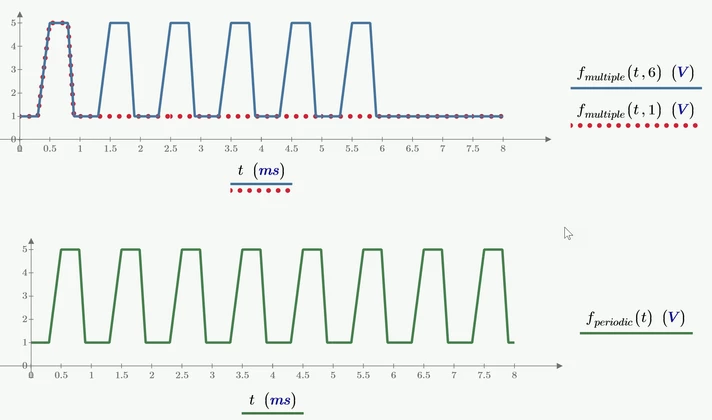

I did not remember the second thread you linked to where I already had posted a (somewhat nicer) suggestion for the very same signal - annoying.

Additional information:

Marcello @-MFra-  also kindly provided the Mathcad files for his Waveform Spectra here: Fourier Analysis and Signals' Spectra
I may be wrong but as far as I remember he never shared the Mathcad file for his Test Signals. He only posted the static pdf here: Test Signals 1.pdf

@Cornel

Marcello also contributed to your Electrical Engineering Challenge #2

But his two very large postings consisted of hard to read pictures only and were missing the Mathcad files, so you may have overlooked or ignored them.
