How to create a list with Steel profiles that generates the respective geometric properties?

  • June 24, 2016
  • 17 replies
  • 6714 views

I want to create a "drop down list" with steel profiles in order that after i choose the profile, it automatically generates it's respective properties like Area A , Moment of inertia  I.x and I.y , etc...

Best answer by StuartBruff

Drilon Shabani wrote:

I want to create a "drop down list" with steel profiles in order that after i choose the profile, it automatically generates it's respective properties like Area A , Moment of inertia  I.x and I.y , etc...

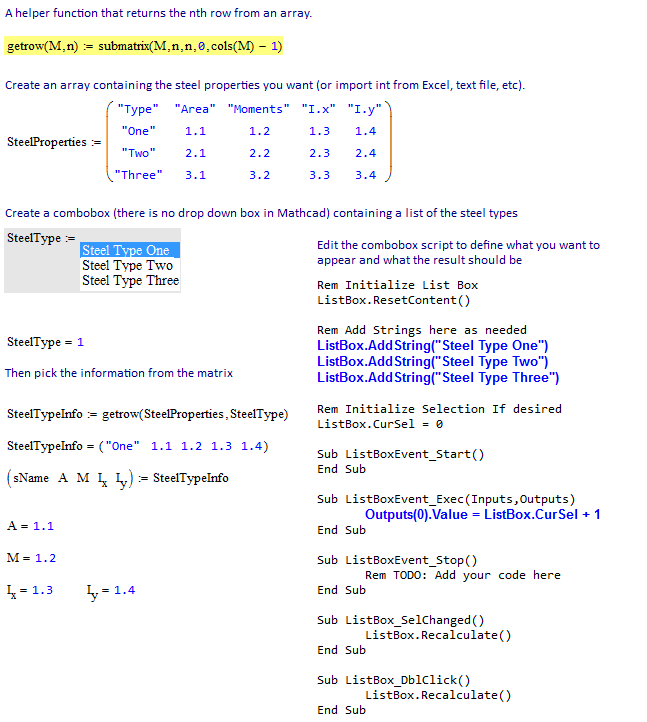

And here's one approach using Mathcad 15 ...

Stuart

17 replies

S
StuartBruff23-Emerald V
23-Emerald V
June 24, 2016

Which version of Mathcad are you using?

L
LucMeekes23-Emerald IV
23-Emerald IV
June 24, 2016

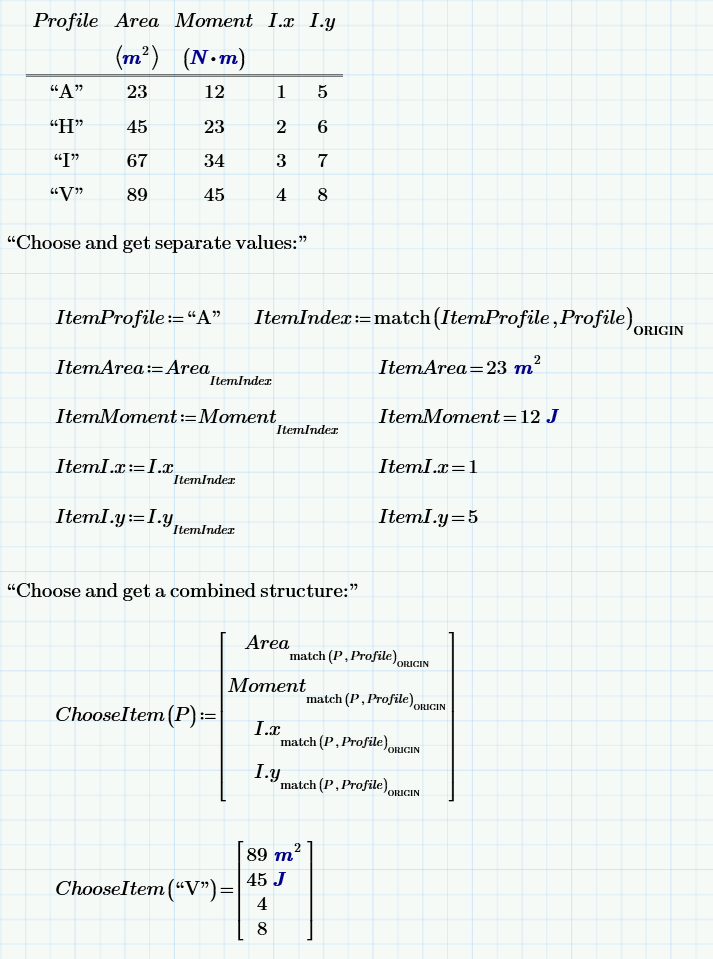

Here's a set of possible implementations in Prime. The attached file is Prime 3.1, you can only open it with Prime 3.1.

Success!
Luc

S
StuartBruff23-Emerald VAnswer
23-Emerald V
June 24, 2016

Drilon Shabani wrote:

I want to create a "drop down list" with steel profiles in order that after i choose the profile, it automatically generates it's respective properties like Area A , Moment of inertia  I.x and I.y , etc...

And here's one approach using Mathcad 15 ...

Stuart

    D
    DrilonShabani1-VisitorAuthor
    1-Visitor
    June 24, 2016

    Wonderful....

    My problem is that "getrow" is not working. I am new in Mathcad (obviously) so can you please advice me at this point?

    L
    LucMeekes23-Emerald IV
    23-Emerald IV
    June 24, 2016

    What version of Mathcad are you using?

    R
    RichardJ19-Tanzanite
    19-Tanzanite
    June 24, 2016

    Are you looking for something like this: AISC V13 Table 3-2 ?

      D
      DrilonShabani1-VisitorAuthor
      1-Visitor
      June 24, 2016

      This is really an advanced level... Thank you very much
