How to generate this kind of waveform?

  • July 4, 2025
  • 1 reply
  • 931 views






Hi,

I want to reproduce a plot like below:



Best answer by Werner_E
@Cornel wrote:









What the hell is going on with this site that it doesn't show you what you post? @DJNewman  do something and fix this site, let it work like before...

You might also ask yourself whether this could be your fault after all and might be caused by carelessly copying the text from the translator you are using. ?



According the signal your question is not clear. Are you really just asking how to create the sum of 64 random signals?

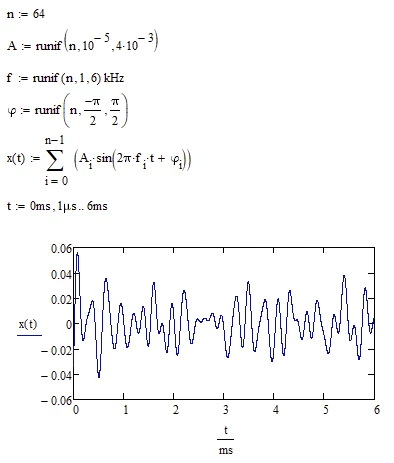

If so, then how about this:




1 reply

C
Cornel19-TanzaniteAuthor
19-Tanzanite
July 4, 2025









What the hell is going on with this site that it doesn't show you what you post? @DJNewman  do something and fix this site, let it work like before...

C
Cornel19-TanzaniteAuthor
19-Tanzanite
July 4, 2025





































Hi,I want to generate a similar plot like below plot in mathcad prime 10.

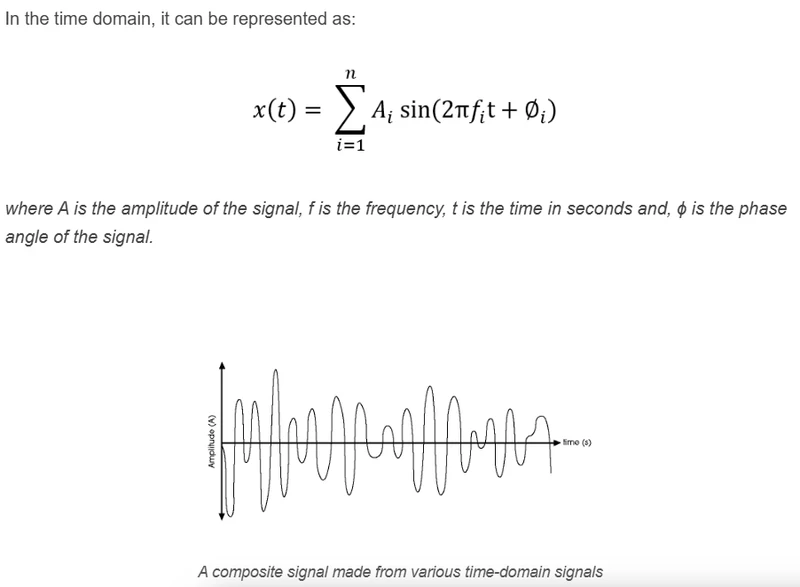

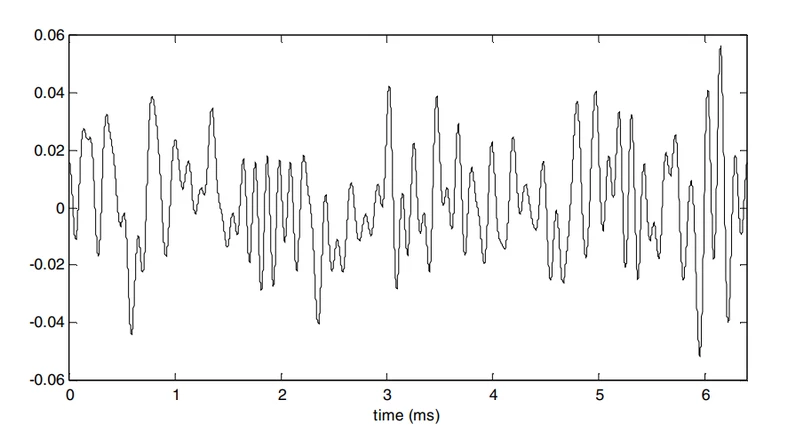

Below figure shows the waveform of a multisine signal composed of 64 tones/64 single sine waves.



This plot was generated somehow by using of a combination/addition of multiple single sine waves or tones with a unique/different or same amplitude, phase and frequency of each wave respectively.
