How to plot a P-Q Capability Curve and R-X impedance diagram

  • May 11, 2016
  • 2 replies
  • 10709 views

I'm not sure whether this question should go under "Electrical Engineering", "Algebra & Geometry" or "Mathcad Usage"...

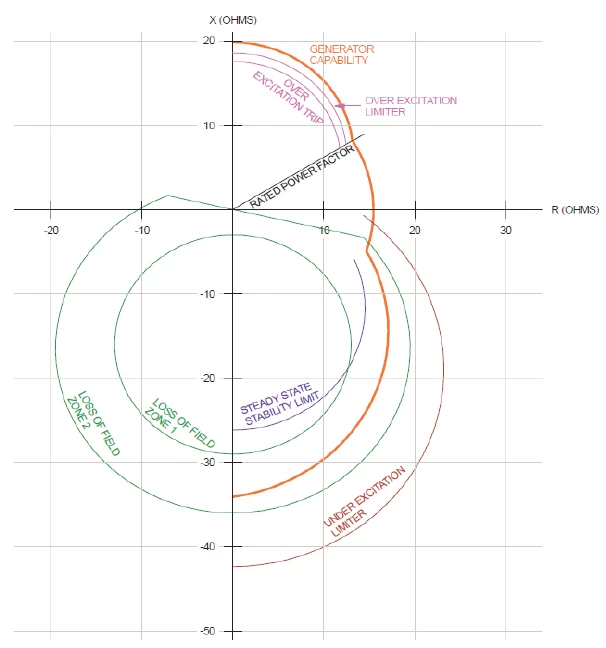

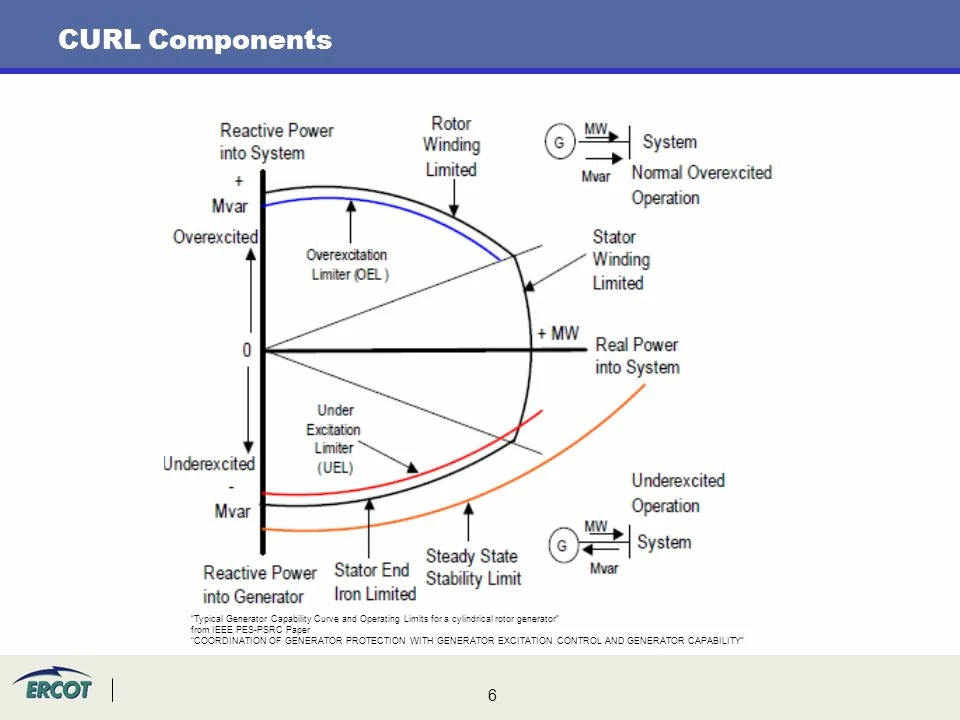

I'm fairly new to MathCAD and I would like to learn how to plot a PQ Generator Capability Curve and RX impedance diagrams, similar to what is shown in the attachments, using both - formulas and data points. Can anyone recommend any reading material that explains how to create these types of graphs in MathCAD? If this is simple enough, an explanation in this thread would also be great.

I have both, MathCAD 15 and Prime 3.1, and would prefer to learn it in Prime 3.1.

    2 replies

    M
    MJG1-Visitor
    1-Visitor
    May 11, 2016

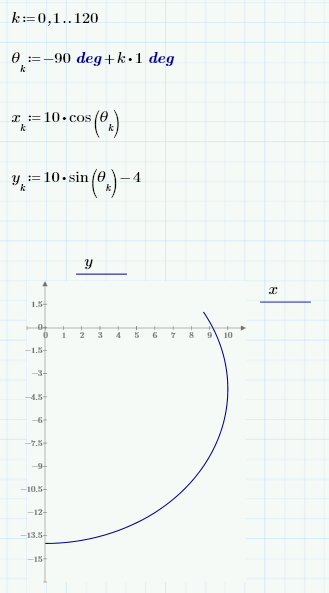

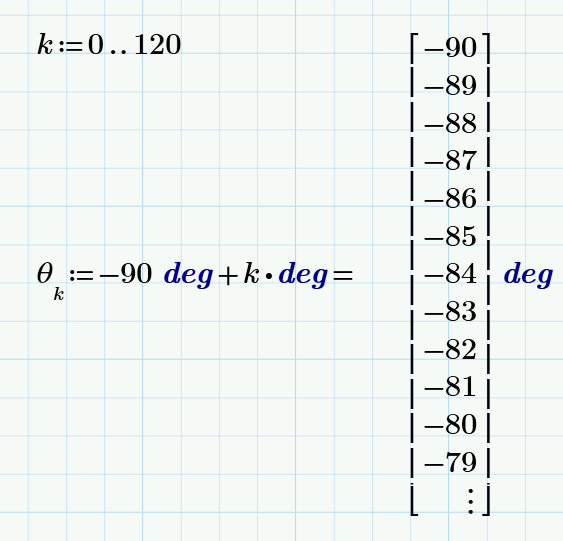

    Here's a start for one way to approach this:

      V
      vyerokhin10-MarbleAuthor
      10-Marble
      May 13, 2016

      When I start typing what you have, I get an error that says "This value must be a scalar or a matrix."


      V
      24-Ruby IV
      ValeryOchkov24-Ruby IV
      24-Ruby IV
      May 13, 2016

      May be your second k has others style

      V
      24-Ruby IV
      ValeryOchkov24-Ruby IV
      24-Ruby IV
      May 11, 2016

      May  be this will be useful for you
