how to plot p(r,theta) in a 3d cylindrical coordinate?

Good afternoon. I'm YJ from South Korea.



I'm a user of MC prime 10.



Recently I'm solving 2D Reynolds equation in polar coordinate with FDM.



I've obtained a p(r,theta) in 11 x 11 matrix.



Now I'd like to plot it in 3D cylidrical coordinate.



I wonder how to do it. I need tutorials or examples to get familiar with ploting in polar coordinate or cylindraical coordinate.



Help help me out of here!



I always appreciate your help.

terryhendicott
terryhendicottAnswer
21-Topaz II
Jul 25, 2024 6:35 AM UTC

Hi


View in thread

4 replies

Raiko17-Peridot
17-Peridot
Jul 24, 2024 6:22 AM UTC

Hello YJ,

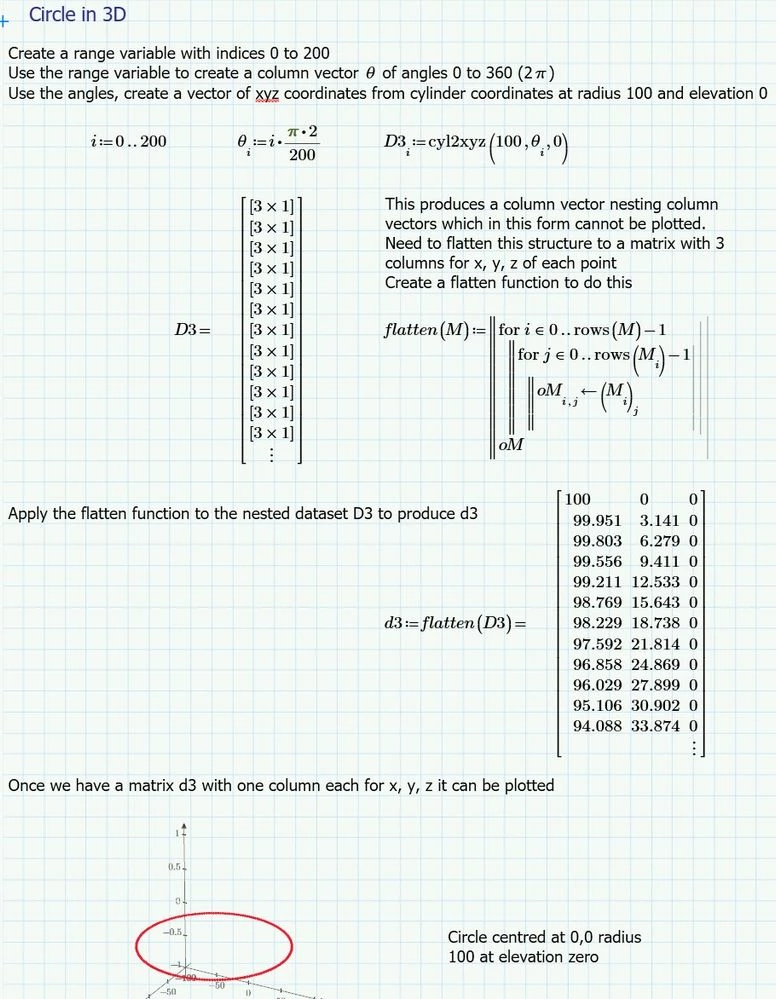

perhaps this tutorial helps:  Basics of 3D Plotting in Mathcad Prime (youtube.com)



Cheers



Raiko

Translate
    ttokoro
    ttokoro21-Topaz I
    21-Topaz I
    Jul 24, 2024 6:48 AM UTC

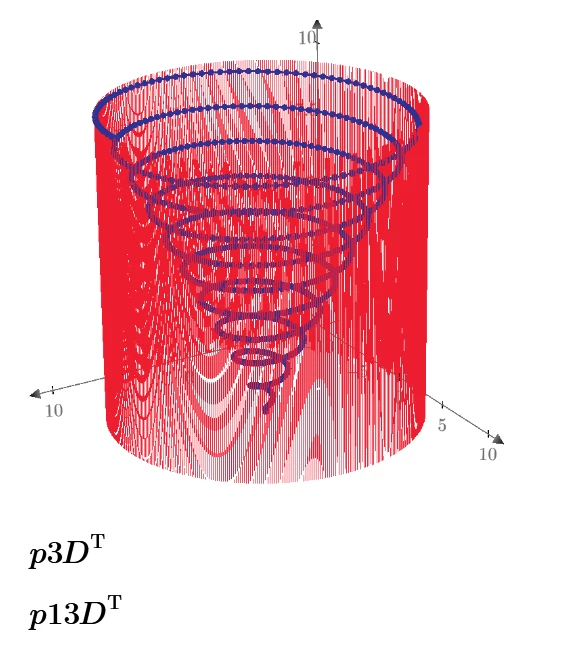

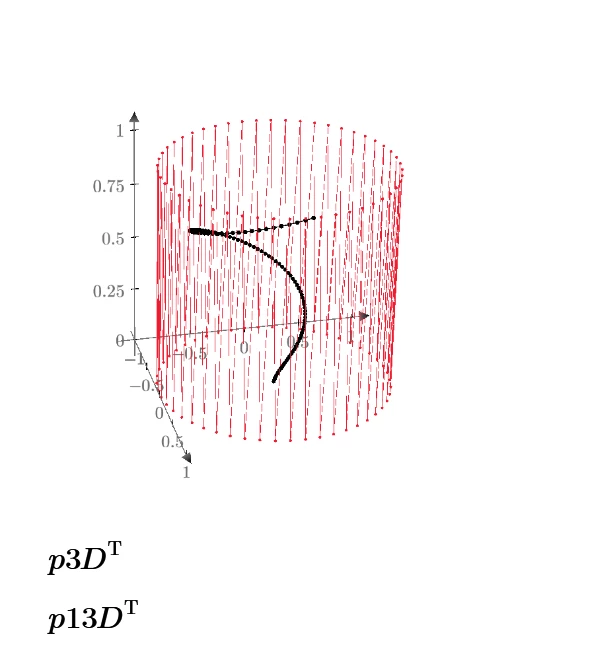

    Check cyl2xyz(r, θ, z) finction help just push F1 on the mathcad function cyl2xyz(r, θ, z).
    Or upload your p data mathcad sheet to help.


    Translate
    t.t.
      terryhendicott
      terryhendicott21-Topaz IIAnswer
      21-Topaz II
      Jul 25, 2024 6:35 AM UTC

      Hi


      Translate
        vnamboodheriCommunity Manager
        Community Moderator
        Jul 31, 2024 5:40 AM UTC

        Hello @영김_01_10389557,



        It looks like you have some responses from some community members. If any of these replies helped you solve your question please mark the appropriate reply as the Accepted Solution.

        Of course, if you have more to share on your issue, please let the Community know so other community members can continue to help you.

        Thanks,
        Vivek N.
        Community Moderation Team.
