How to solve feedback by Mathcad?

Help.

How to solve transfer function of Feedback control by Mathcad ?

PDF is solved by me and not automatically.

T. Tokro.

Werner_E
Werner_EAnswer
25-Diamond I
December 11, 2016

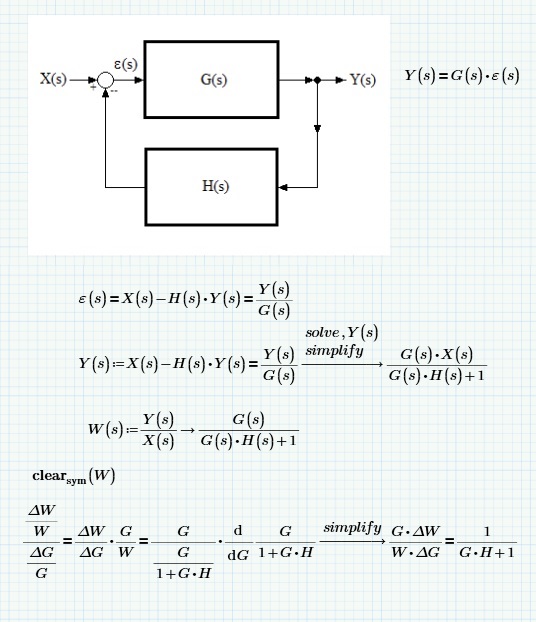

Heres yet another approach:

View in thread

4 replies

-MFra-21-Topaz II
21-Topaz II
December 11, 2016


Translate
    LucMeekes23-Emerald V
    23-Emerald V
    December 11, 2016

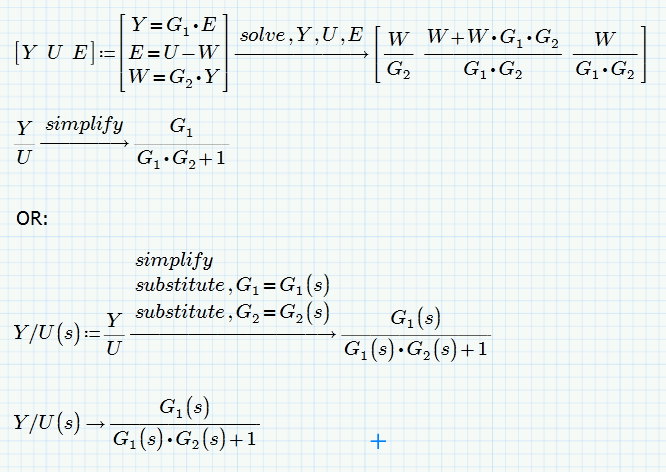

    I guess this is a little bit more automatic:

    success!

    Luc

    Translate
      Werner_E
      Werner_E25-Diamond IAnswer
      25-Diamond I
      December 11, 2016

      Heres yet another approach:

      Translate
        ttokoro
        ttokoro21-Topaz IAuthor
        21-Topaz I
        December 12, 2016

        Thanks all three answers!

        I will try more complex problems such as,

        A=f1(G1,X)

        B=f2(G2,A)

        C=f3(G3,B)

        Y=f4(G4,C)

        Then solve Y/X without using A, B, C but by G1, G2, G3, G4.


        T.Tokoro
