When I rotate a coloured image using the functions in Mathcad Prime recalling the image turns out to be in gray scale. How to make Mathcad prime call the rotated image in its original form?

LucMeekesAnswer
23-Emerald IV
June 16, 2022

You've got the wrong order of colours for assembling the rotated picture. The order should be RGB, you've got RBG.

Your augment should be:


Consider defining, for rotation of colour pictures:




Success!
Luc

View in thread

3 replies

LucMeekes23-Emerald IV
23-Emerald IV
June 16, 2022

If you attach your Prime worksheet, we can better help you...

It appears that you must rotate the red, green and blue segments individually:

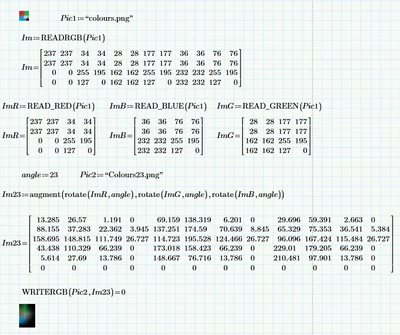

Here's rotation of a 4 x 4 pixel colour image over 23 degrees:


The resulting image is 4 by 6 pixels, but colourful.



Success!
Luc



Translate
    JW_97819747-BedrockAuthor
    7-Bedrock
    June 16, 2022

    Thanks for the information I tried following the procedure but the color is not same

    Translate
    LucMeekes23-Emerald IVAnswer
    23-Emerald IV
    June 16, 2022

    You've got the wrong order of colours for assembling the rotated picture. The order should be RGB, you've got RBG.

    Your augment should be:


    Consider defining, for rotation of colour pictures:




    Success!
    Luc
