Question

Integrating pressure vs volume in terms of angle theta

  • October 3, 2017
  • 4 replies
  • 4141 views

I'm trying to find the work done to compress a gas by integrating a pressure-volume graph in terms of the crank angle of a piston. When using the integral function in Mathcad, an error comes up saying that these units are not comparable for p(theta).  Any help would be appreciated.

4 replies

M
MJG1-Visitor
1-Visitor
October 3, 2017

Looks like you must be using Prime 4.0.  Many of us can't open Prime 4.0 files.  Coudl you also attach a PDF or screen shot?

R
RichardJ19-Tanzanite
19-Tanzanite
October 3, 2017

You are integrating over angle, so the units of the limits should be angle. You have units of volume.

T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
October 4, 2017

Hi,

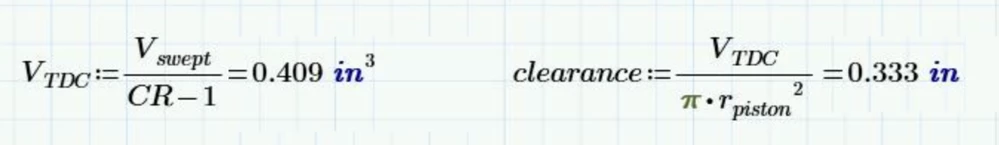

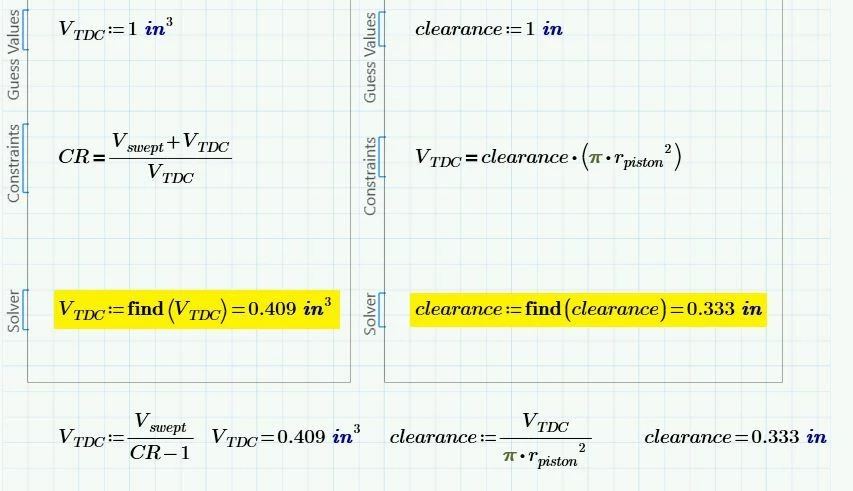

You can eliminate the two Solve blocks with direct calculation if you want to streamline the sheet.


V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
October 4, 2017


V
24-Ruby IV
ValeryOchkov24-Ruby IV
24-Ruby IV
October 3, 2017

Use please

www.wsp.ru

for same calculation/

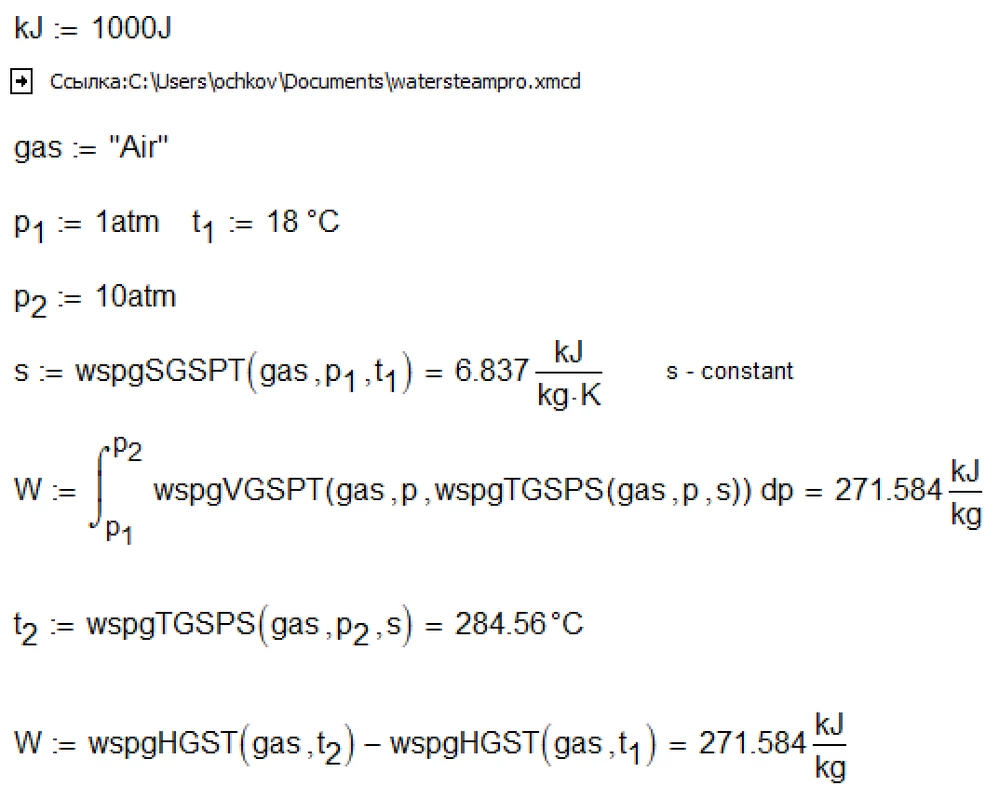

One example for Mathcad 15. Works with Prime 4 too


V
24-Ruby III
VladimirN24-Ruby III
24-Ruby III
October 20, 2017

Another new bug here?


 P.S. @Jaime_Lee Please check it.
