Mathcad 15 M030 can't draw multiple 3D plot?

I want to draw 3 expressions in one 3D plot, and the ranges of x,y is 1~5.

When I draw it in MC15M030, only one plot setting item appeared!

And when I use the same function in MC2001i, it work well!

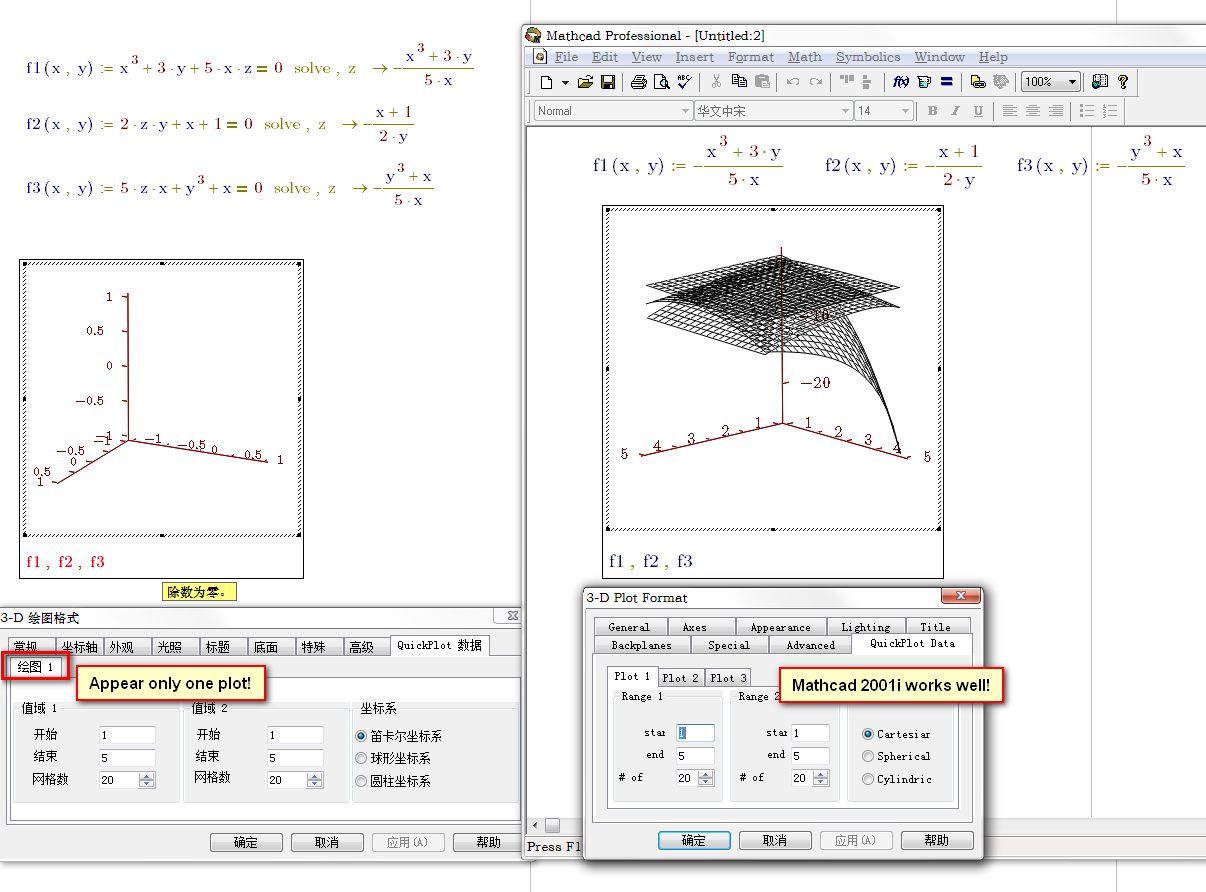

See the picture below:


It seems a bug in Mathcad 15 M030, is it?

26 replies

ValeryOchkov24-Ruby IV
24-Ruby IV
Oct 30, 2014 9:11 AM UTC

By me no problem - Mathcad 15 and Windows 8.1 on Surface Pro 3:


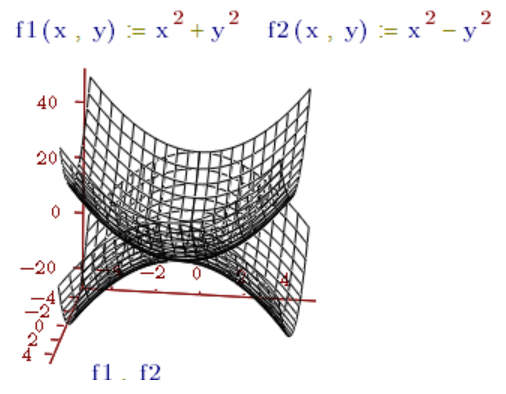

Translate
Werner_E
Werner_E25-Diamond I
25-Diamond I
Oct 30, 2014 11:09 AM UTC

Valery Ochkov wrote:

By me no problem - Mathcad 15 and Windows 8.1 on Surface Pro 3:

Please try with the test0 sheet zhu has provided,

Looks like a bug to me because the error message (division by zero) is not appropriate. It may be a corrupt sheet.

Translate
MikeArmstrong1-Visitor
1-Visitor
Oct 30, 2014 11:16 AM UTC

Werner Exinger wrote:

Looks like a bug to me because the error message (division by zero) is not appropriate. It may be a corrupt sheet.

It works in Prime also.


Translate
MikeArmstrong1-Visitor
1-Visitor
Oct 30, 2014 11:18 AM UTC

Werner seems to be correct. Works in Mathcad 15.

Translate
zhulaojianke1-VisitorAuthor
1-Visitor
Oct 30, 2014 1:03 PM UTC

How do you get that? Just copy the plot from the .mcd to the .xmcd? or other?

And it seems I only could copy/paste the elements from .mcd to .xmcd, but couldn't from .xmcd to .mcd.

Translate
MikeArmstrong1-Visitor
1-Visitor
Oct 30, 2014 1:04 PM UTC

zhu laojianke wrote:

How do you get that? Just copy the plot from the .mcd to the .xmcd? or other?

Yes correct.

Translate
Werner_E
Werner_E25-Diamond I
25-Diamond I
Oct 30, 2014 5:12 PM UTC

OK, I've played around with the phenomenon and I guess I found out what happens. basically its a bug.

The problem is not that MC15 can't show the plots (as many had already found out as it display the older file) but the we cannot create it using MC15. The reason is that MC15 will not allow to set the quickplot ranges for plot 2 and plot 3 when an error occurs and as the default range is from -5 to 5 we run into a division by zero error.

There is a simple workaround: Create a dummy function f(x,y):=1 and plot the "three" functions f,f,f.

Set the quickplot range for each of the three plots so that the division by zero s avoided (in your case 1 to 5) and then change f,f,f to f1,f2,f3.

Silly and sure am annying bug.

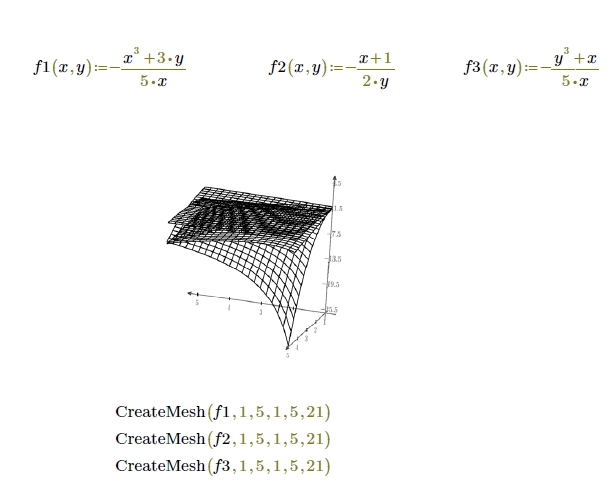

Another way out is using createmesh.

Translate
MikeArmstrong1-Visitor
1-Visitor
Oct 30, 2014 7:33 PM UTC

As Prime did when I converted the file?

Translate
Werner_E
Werner_E25-Diamond I
25-Diamond I
Oct 30, 2014 8:17 PM UTC

Mike Armstrong wrote:

As Prime did when I converted the file?

Yes. In Prime we can only set the "quickplot" ranges by awkwardly changing the values on the axis. I still scratch my head about the fact that there must be at least one person who thinks that that kind of user interface is a good idea - its so awful!

So in Prime in contrary to Mathcad you are not allowed to set different quickplot ranges for different plots and so Createmesh has to be used to simulate this.

So Prime can't suffer from that bug because it does not even offer the feature which fails in some cases in Mathcad.
