I wanted to create the Y BUS matrix from Netlist and solve that to get currents and voltages of each node.



For this i need to know how to solve the AX=B in matrix format, if all matrices(A,X and B) having variables only,

I want X in terms of Varibales(eqn)



Please check the 29th page of this pdf:

http://www3.imperial.ac.uk/pls/portallive/docs/1/7292571.PDF

Best answer by Werner_E

You may possibly be able to do what you are looking for, but as long as an expression contains an unknown/undefined variable you obviously can't evaluate that expression or function numerically (that means using the normal =).

3 replies

T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
December 18, 2018

Hi,



you just use:-





Regards

Terry

T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
December 18, 2018

Hi,



I will try this post again to get the graphic:



You just use:-






Cheers

Terry

B
BB11-VisitorAuthor
1-Visitor
December 18, 2018

Please check the attachment, that one i am not able to solve

T
21-Topaz II
terryhendicott21-Topaz II
21-Topaz II
December 18, 2018

Hi,



The inverse of a matrix times the matrix is the identity matrix (all zeros except diagonals being one)


Cheers Terry

W
Werner_E25-Diamond I
25-Diamond I
December 18, 2018

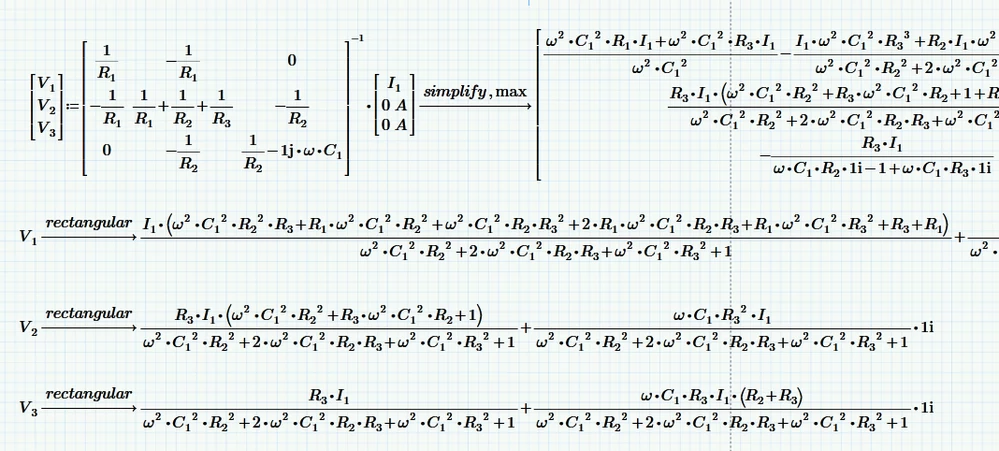

Do you really need a general symbolic solution? It looks a bit uncomfortable:


Wouldn't do a numerical solution do the job good enough?

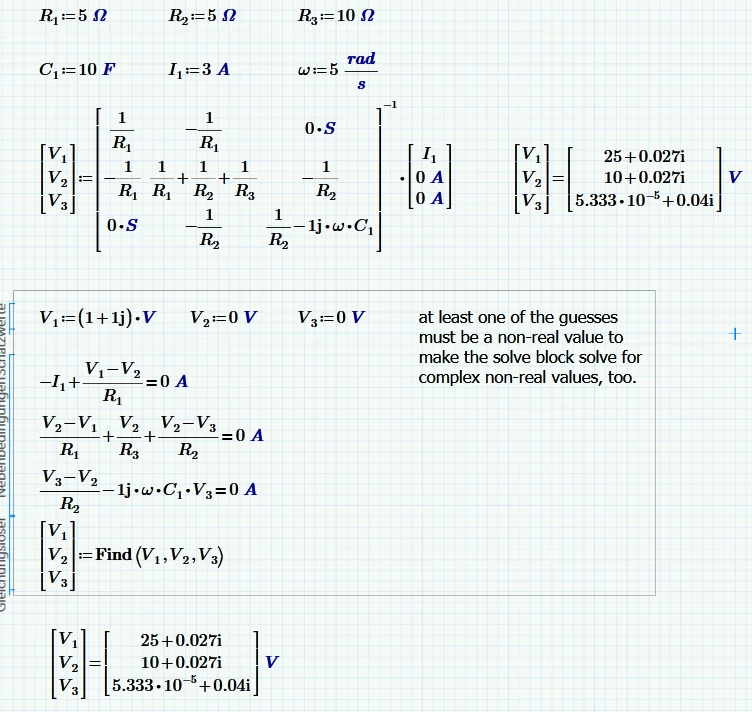

You may either use the matrix approach or a solve block with the original node equations.


B
BB11-VisitorAuthor
1-Visitor
December 19, 2018
I need the solution in symbolically..means interms of variables like in X,y
