Mathcad Prime 7: Plotting Phasors

Forum|Forum|4 years ago
November 22, 2021
3 replies
4700 views

Is there a way to use plot phasors of voltages and currents (complex numbers in rectangular or polar form)? I would like to do this without creating custom functions, if possible.

Electrical_Engineering

Best answer by Werner_E

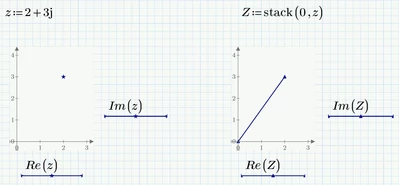

What kind of phasor plot do you have in mind. Plotting just the point or a line segment from he origin is easy, if you need an arrow it would mean a litle bit more work and you would be better off with a custom function.

L

LucMeekes

23-Emerald IV

You have the (built-in, so no custom function is required) functions Re() and Im() that take the real and imaginary part of a complex number. You can plot those on a rectangular plot.

Then you also have the built-in functions arg() and | | to get phase and magnitude of a complex number that you can plot on a Polar plot.

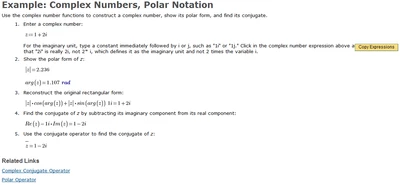

See also the help on complex numbers:

Success!
Luc

W

Werner_E

Answer

25-Diamond I

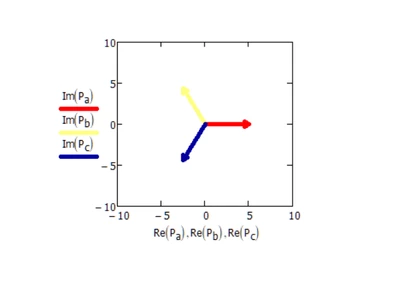

What kind of phasor plot do you have in mind. Plotting just the point or a line segment from he origin is easy, if you need an arrow it would mean a litle bit more work and you would be better off with a custom function.
