Mathcad usage

Hello everyone,

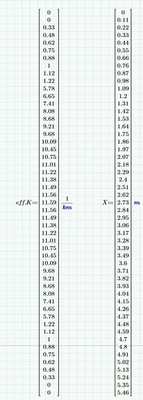

eff.K shown in picture is radius of curvature along beam length and X is the array for sectional points.
I have to double integrate eff.K to get deflection. How can i do it in Mathcad? Attached Mathcad 10 sheet.






terryhendicott
terryhendicottAnswer
21-Topaz II
Jun 12, 2025 3:00 PM UTC

Hi,

See enclosed file.


View in thread

11 replies

terryhendicott
terryhendicott21-Topaz II
21-Topaz II
Jun 12, 2025 7:54 AM UTC

Hi,

two steps.

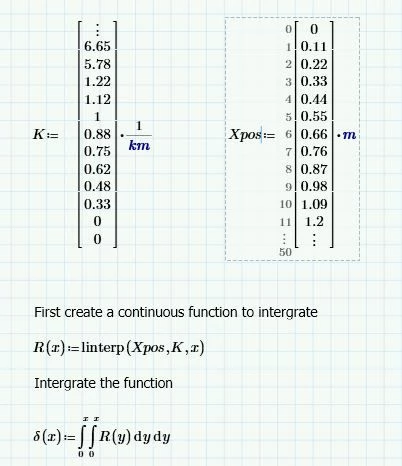

1) turn the effK into a continuous function using the interp() function.

2) make a function to do the double integration.

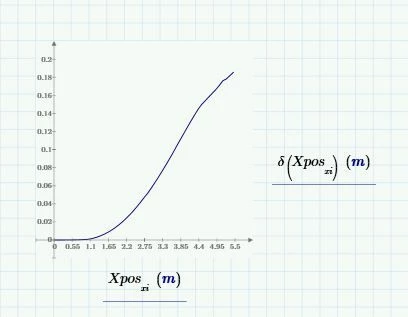

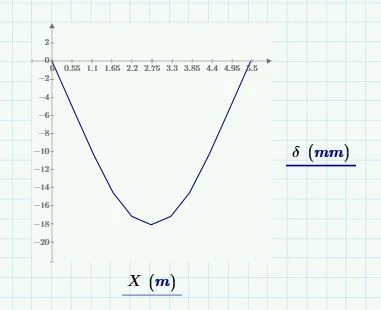

Then plot the result


Translate
    AlanStevens19-Tanzanite
    19-Tanzanite
    Jun 12, 2025 8:22 AM UTC

    Terry, shouldn't your outer integration be with respect to x?

    Translate
    terryhendicott
    terryhendicott21-Topaz II
    21-Topaz II
    Jun 12, 2025 8:41 AM UTC

    Hi Alan,

    If the second integral is wrt x it would be an area integration.  It should be two integrals wrt length along the beam?

    To be meaningful for deflection of the beam the slope at the ends of the beam needs to be included?

    Cheers

    Terry

    Translate
    AlanStevens19-Tanzanite
    19-Tanzanite
    Jun 12, 2025 8:20 AM UTC

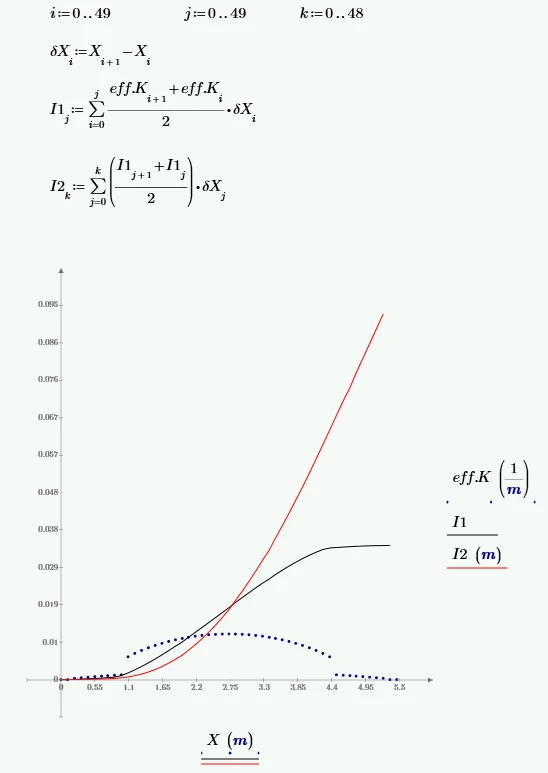

    Here's a simple numerical integration:
