Not able to plot a function with units on the x-axes

  • September 14, 2022
  • 1 reply
  • 1933 views

Please have a look at the following example-function:

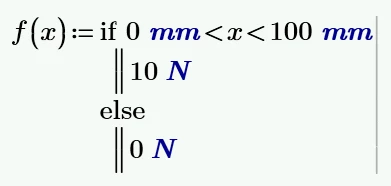

Screenshot 2022-09-14 082452.png

If I want to plot this function with Newton (N) on the y-Axes and Millimeters (mm) on the x-Axes, the following happens:

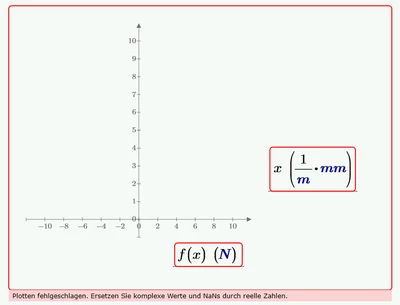

Screenshot 2022-09-14 082651.png

Unfortunately my Mathcad Prime 8.0 is in German, but the error is the following:
Plotting failed. Replace complex Values or NaN-values with real numbers.

Also you can see that it replaces mm with mm / m.



If I erase the units out of the fuction like this:

Screenshot 2022-09-14 083021.png

Then it will work, as you can see here:

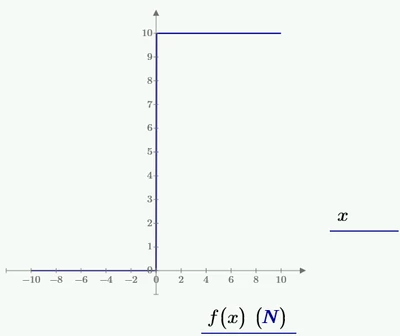

Screenshot 2022-09-14 083113.png



Does somebody know how I can fix this, so that I do not have to erase the units from my function?

I will leave the mathcad-document attached here.

Greetings
Spedex

Best answer by LucMeekes

You have x undefined, in effect you are using a quickplot where Prime will define x for you. It wil have a range from -10 to 10, but no units. The solution is to define x as a range with the proper unit, example:




Success!
Luc





1 reply

L
LucMeekes23-Emerald IVAnswer
23-Emerald IV
September 14, 2022

You have x undefined, in effect you are using a quickplot where Prime will define x for you. It wil have a range from -10 to 10, but no units. The solution is to define x as a range with the proper unit, example:




Success!
Luc





S
Spedex12-AmethystAuthor
12-Amethyst
September 14, 2022

Hello LucMeekes,

thank you very much.

I tried it out for myself and it worked.



I am facing a new challenge now: negative x-values.

If I define x ike this:

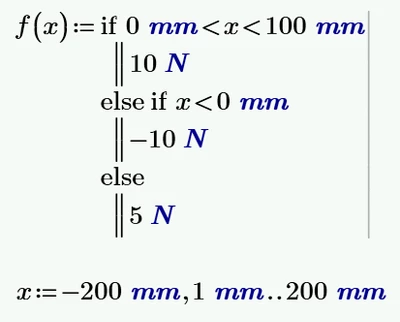

Screenshot 2022-09-14 095800.png

And the plot that occurs is very interesting, but not what it should look like:

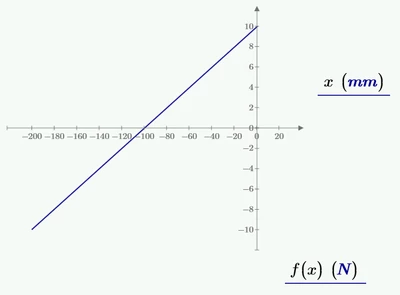

Screenshot 2022-09-14 095930.png



Do you know how to fix this?
Tried many things, nothing worked out.

I will leave the document attached again.



Greetings

Christoph

L
LucMeekes23-Emerald IV
23-Emerald IV
September 14, 2022

The definition of a range is:

<range> := <first value> , <second value> .. <last value>



and NOT:

<range> := <first value> , <step value> .. <last value>



If you change the 1 mm in your definition to -199 mm, it should work as expected.



Success!

Luc
