Best answer by ttokoro

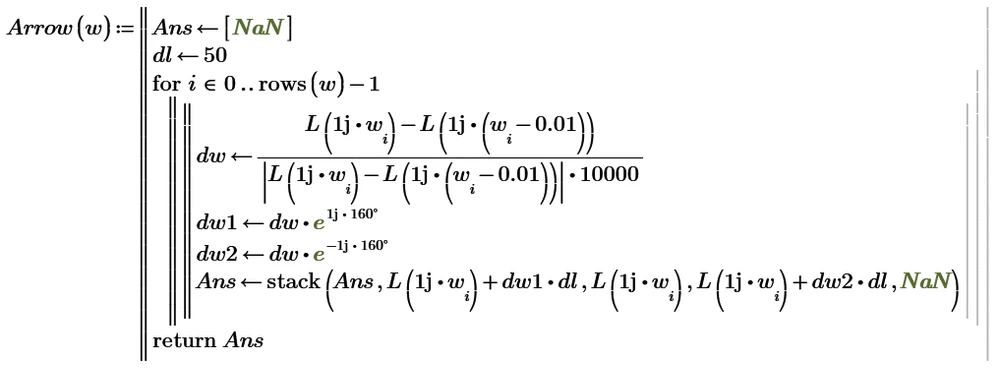

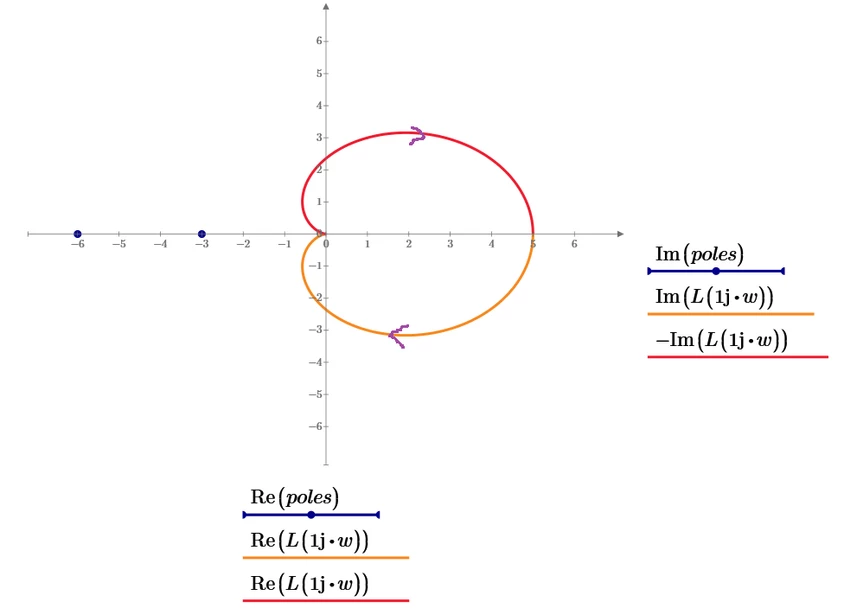

First one's arrow size dependes on dL(w)/dw. If you want to plot same size arrow, Just do below.


2 replies

W
Werner_E25-Diamond I
25-Diamond I
September 19, 2023

You may be interested in this thread: Polar Plots and Nyquist Plots - PTC Community

L
LucMeekes23-Emerald IV
23-Emerald IV
September 20, 2023

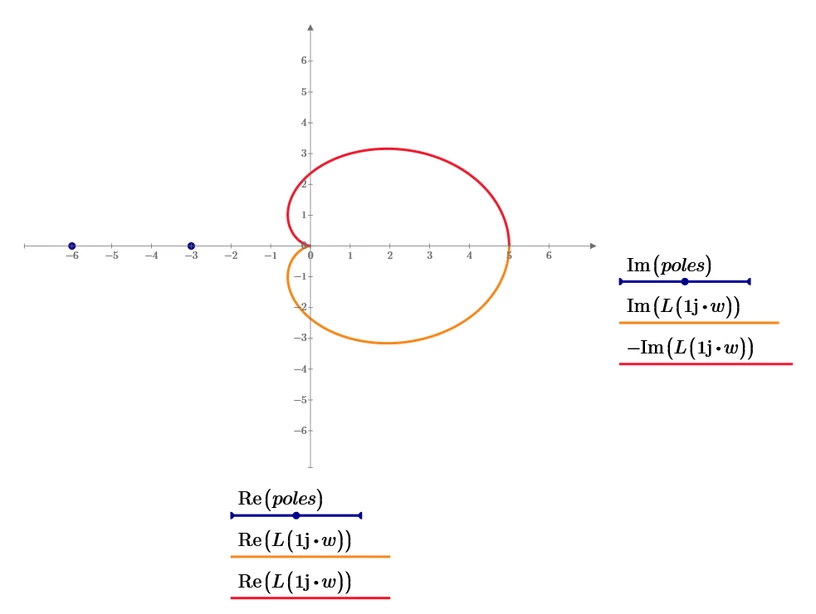

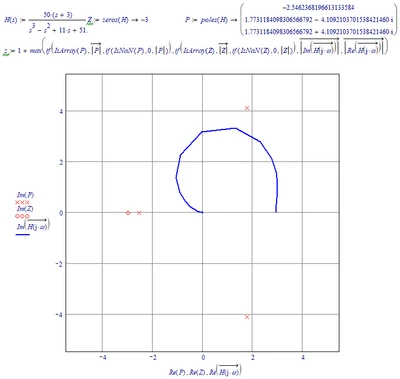

The relatively easy part is:


with which you can:




or:




Success!
Luc



    C
    Cornel19-TanzaniteAuthor
    19-Tanzanite
    September 20, 2023

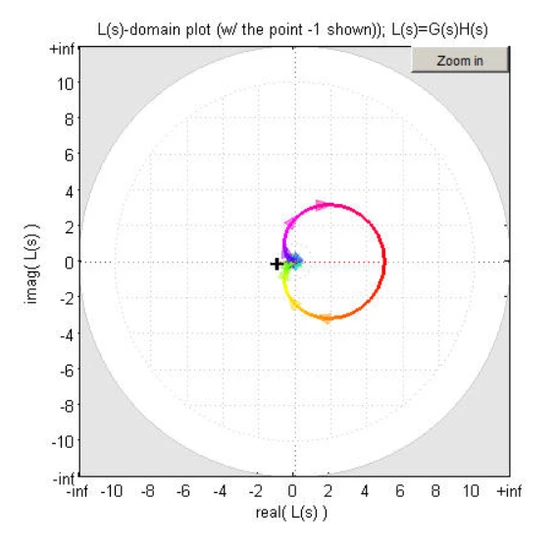

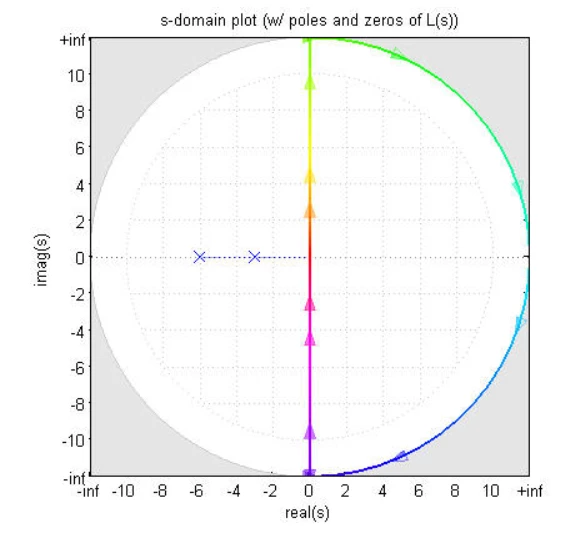

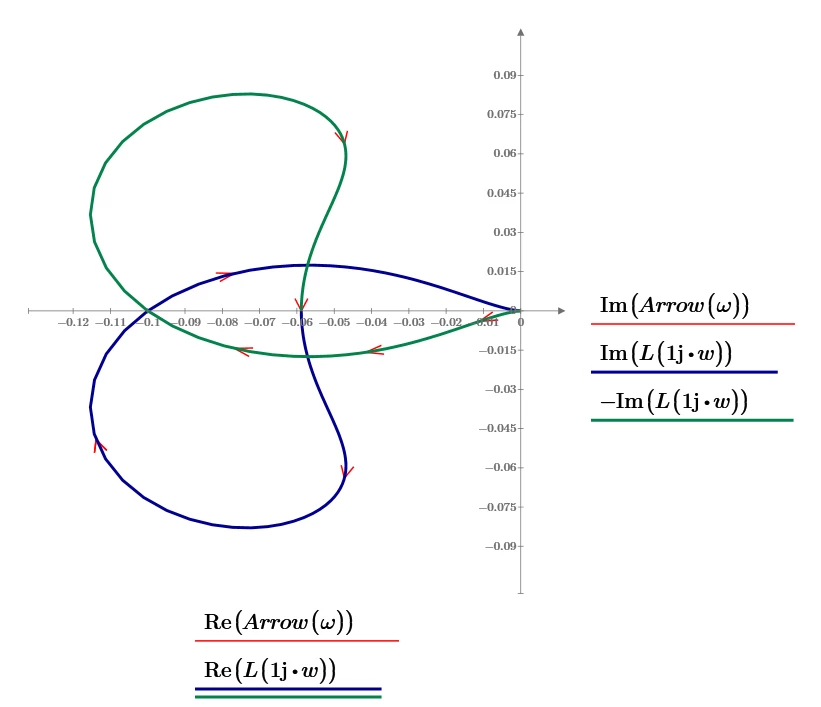

    How to make/take into account these arrows in the Nyquist Plot? We can see that Matlab take into account these arrows...

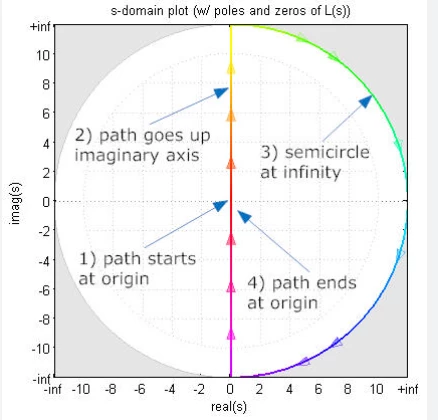

    There are 2 questions:
    1. How to find the correct direction for each arrow?

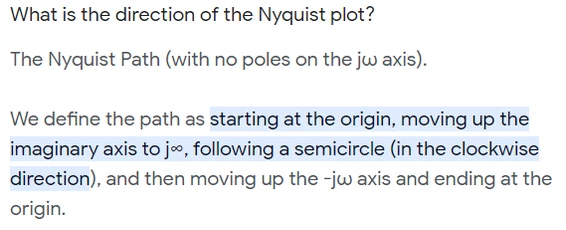

    2. How to plot these arrows?
