Obtain graph equation from an image

Hi all,

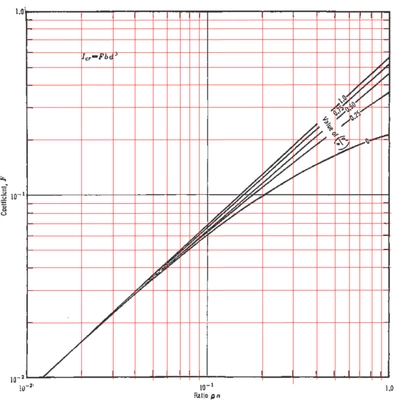

I am trying to obtain the equation of a line (p'/p=1.0, the top line) from this image of the graph. The graph is in log scale and I have no reference to the original source of the graph, hence have no equation for it. Is there anyway to use Mathcad to obtain an equation. I am using Mathcad prime 9. Thanks in advance.




terryhendicott
21-Topaz II
Jul 7, 2025 4:22 PM UTC


3 replies

terryhendicott
21-Topaz II
Jul 7, 2025 4:22 PM UTC

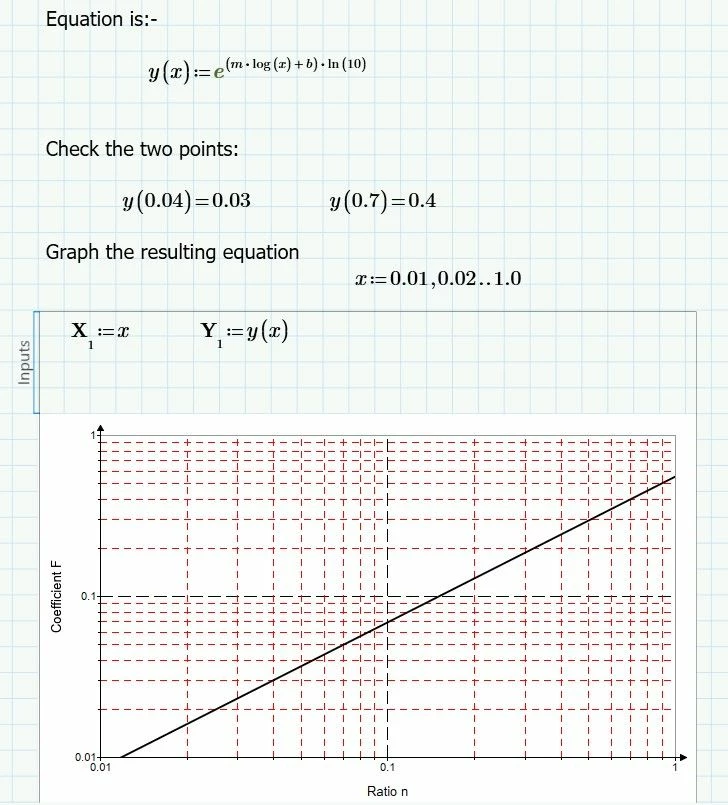

3-Newcomer
Jul 7, 2025 5:02 PM UTC

Thank you so much!

Translate
Werner_E
25-Diamond I
Jul 7, 2025 6:36 PM UTC

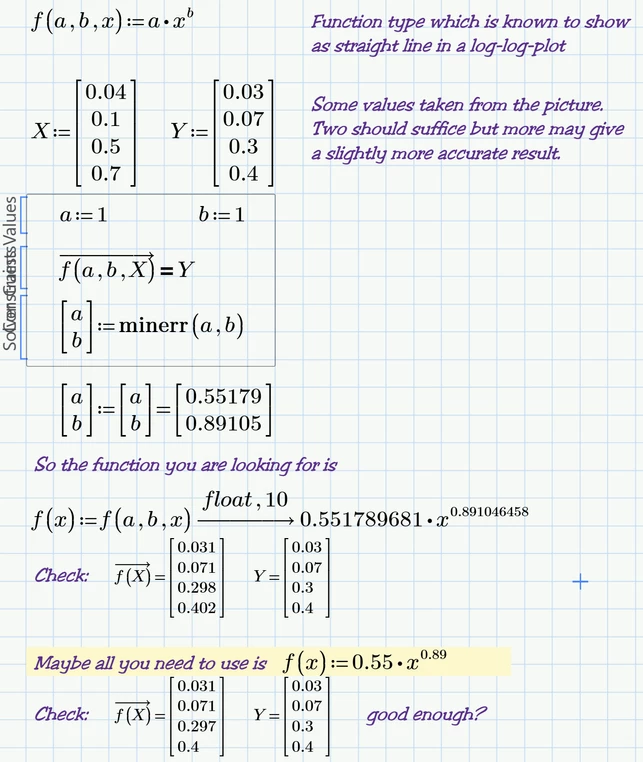

Here are my 2 Cents worth.

Of course it only covers the straight line for ratio=1
