Piecewise Linear function Error

Hi,

I am new to Mathcad and face some problems. I have attached a file in which I am trying to plot the displacement using the Piecewise Linear Interpolation method of structural dynamics. I have defined all variables and put them in the loop, but when I try to plot displacement (u) versus time (t1), I get an error "this value must be a vector".

I would really appreciate it if you could help me resolve this issue.













Werner_E
Werner_EAnswer
25-Diamond I
Oct 15, 2023 11:51 AM UTC

Just had a quick glance at your sheet and here are a few remarks:


I had not looked further to spot the reason for the unit mismatch and had not looked further down in the sheet.



View in thread

5 replies

Werner_E
Werner_E25-Diamond IAnswer
25-Diamond I
Oct 15, 2023 11:51 AM UTC

Just had a quick glance at your sheet and here are a few remarks:


I had not looked further to spot the reason for the unit mismatch and had not looked further down in the sheet.



Translate
    Werner_E
    Werner_E25-Diamond I
    25-Diamond I
    Oct 15, 2023 2:36 PM UTC

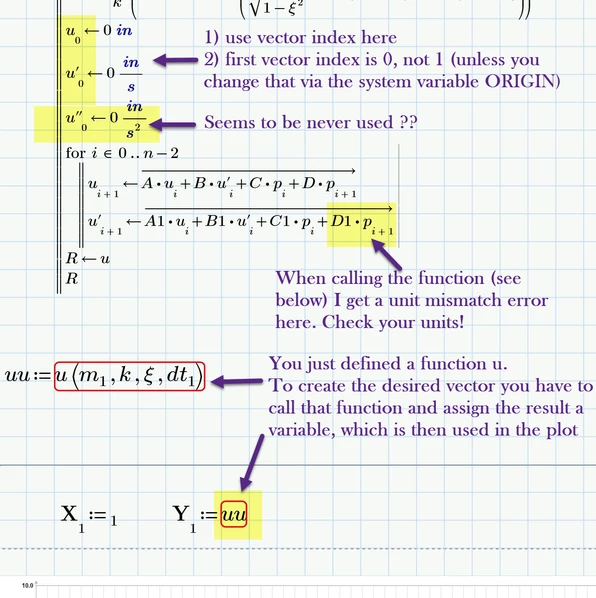

    Looked further and spotted the unit mismatch. In the calculation of D1 you were missing dt.1 in the denominator.

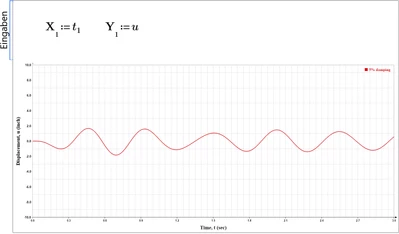

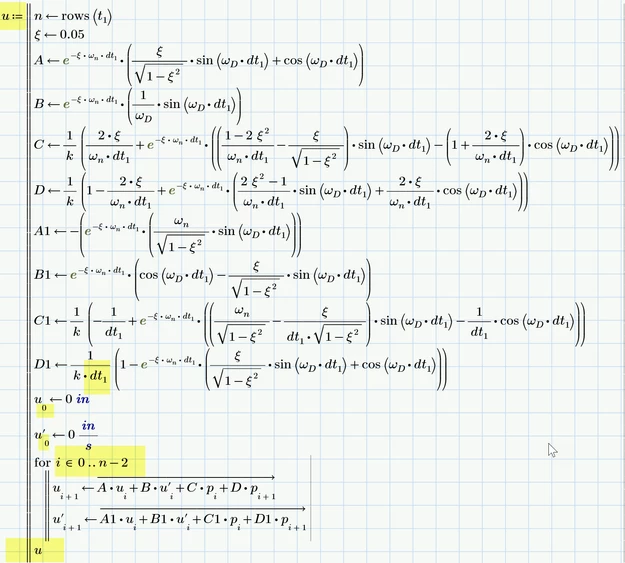

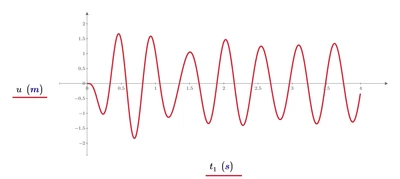

    See attached file.

    I also assumed that you actually did not want u to be a function of the four arguments you provided and so I changed that , too.







    Translate
      Abdur_206310-MarbleAuthor
      10-Marble
      Oct 15, 2023 5:10 PM UTC

      Thank you very much @Werner_E. I really appreciate your quick response and solving my error. Yes, I will incorporate these changes.



      Once again, thank you



      Abdur
