Hi,

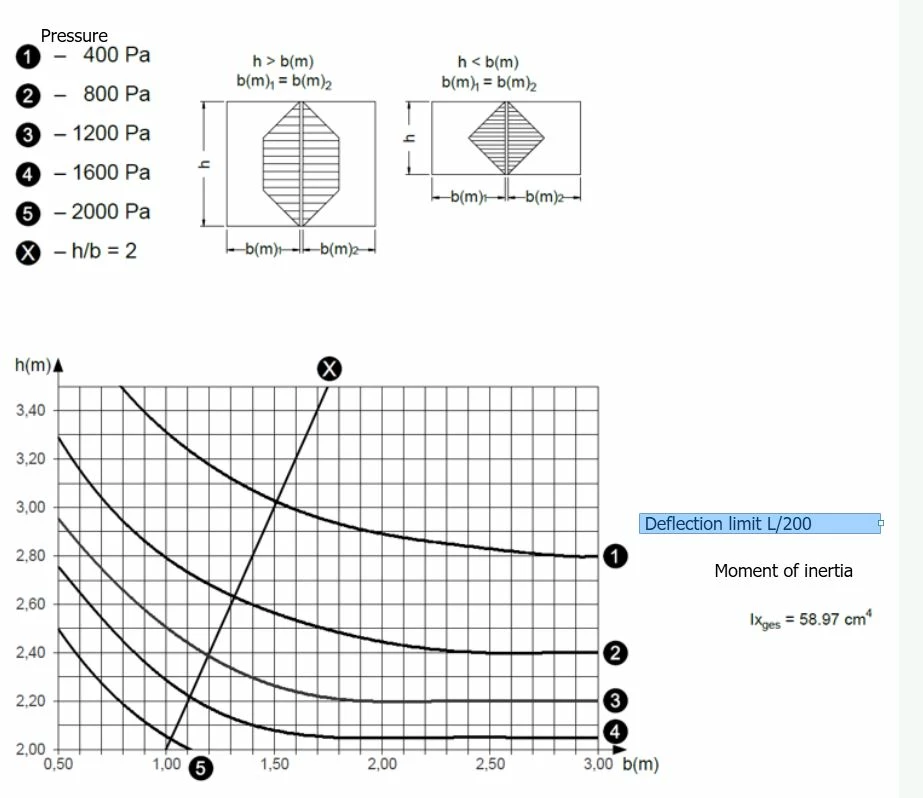

Good day.  Anyone could help me to make a tabulated graph similar to what I attached

Material is aluminum

Moment of inertia is given 58.97 cm^4

I am using  Prime 6.0

Design pressure is given

deflection criteria  L/200

Thank you.

3 replies

L
LucMeekes23-Emerald IV
23-Emerald IV
December 17, 2020

That's all?

If you provide an expression that relates h to b, probably with the other data you provide as (extra) parameters, we can create the plot.



Success!
Luc

    V
    24-Ruby IV
    ValeryOchkov24-Ruby IV
    24-Ruby IV
    December 17, 2020

    Create please a matrix in Mathcad and use interpolation/

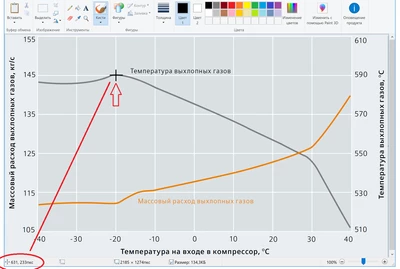

    See please one picture from my book about this priblem


      F
      Fred_Kohlhepp23-Emerald I
      23-Emerald I
      December 17, 2020

      How are you calculating deflection?  Deflection depends on pressure, h, and b.  If we have that relationship we can develop this graph, but (Especially in Prime) the annotation will be a problem.
