Plot 2D

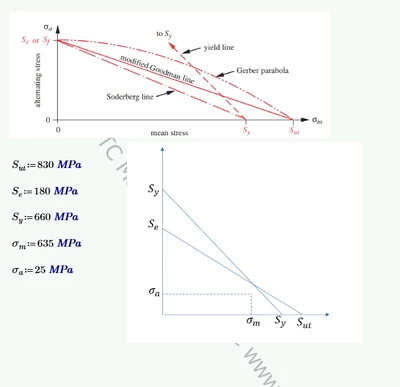

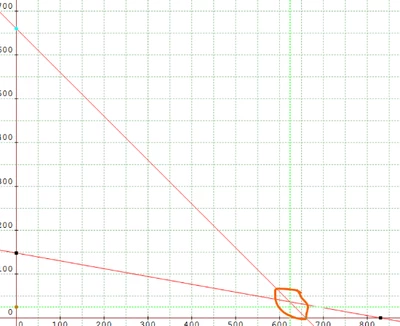

Hello, can anybody help me with plotting these values in Mathcad se picture.

23-Emerald IV

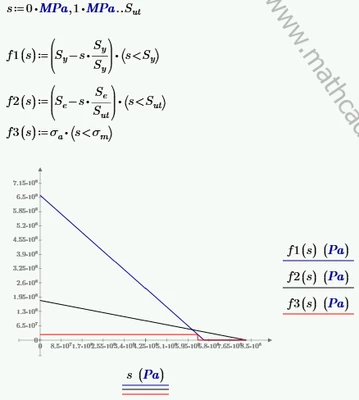

Like this?

If you want the other graph, you will have to provide the expression for the Gerber parabola.

Success!
Luc

Translate

Author

1-Visitor

is it possible to make it a little more presentable ? Like this maybe:

Translate

21-Topaz II

Hi Kenan

To find more adjustment in a plots features you need to use the chart component new in Prime 6.

The plot component is found on the menu Math | Regions as a drop down list.

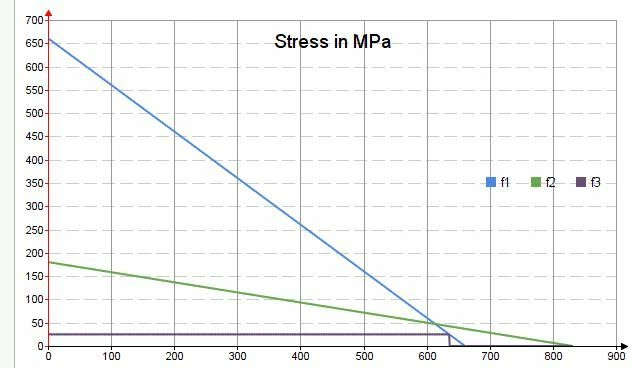

One is enclosed in file attached. Double click it to activate format options.

Translate

23-Emerald I

The plots--sure! 🙂

The labels--well, you're on your own.
