Plot a family of curves

Hello!



Would anybody explain to me, please, how to plot a family of curves given in the attached file?

Whenever I define the parameter "const" as a vector or a matrix, the plot fails to visualize.

But when "const" has only one assigned value, only one curve (as expected) gets it plot.



Best regards,

Sergey



LucMeekesAnswer
23-Emerald IV
January 17, 2023

Here's one way:


Success!
Luc

View in thread

8 replies

ppal_25568718-Opal
18-Opal
January 17, 2023

https://community.ptc.com/t5/Mathcad/Plotting-a-family-of-curves/td-p/43766



This may be a good place to start.



Translate
Sergey15-MoonstoneAuthor
15-Moonstone
January 17, 2023

Thanks for sharing, but I tend to disagree.

I am trying to plot in Mathcad Prime, not in Mathcad 15.

Translate
LucMeekes23-Emerald IVAnswer
23-Emerald IV
January 17, 2023

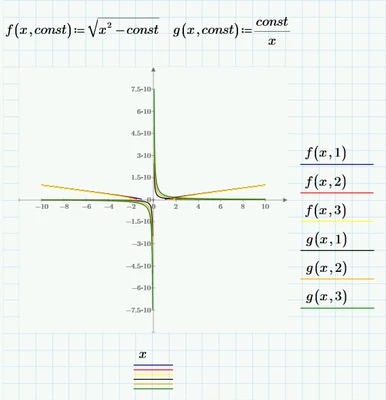

Here's one way:


Success!
Luc

Translate
    Sergey15-MoonstoneAuthor
    15-Moonstone
    January 18, 2023

    If there are any other usefull ways of plotting curve families, please, show examples here.

    Translate
    ttokoro
    ttokoro21-Topaz I
    21-Topaz I
    January 18, 2023

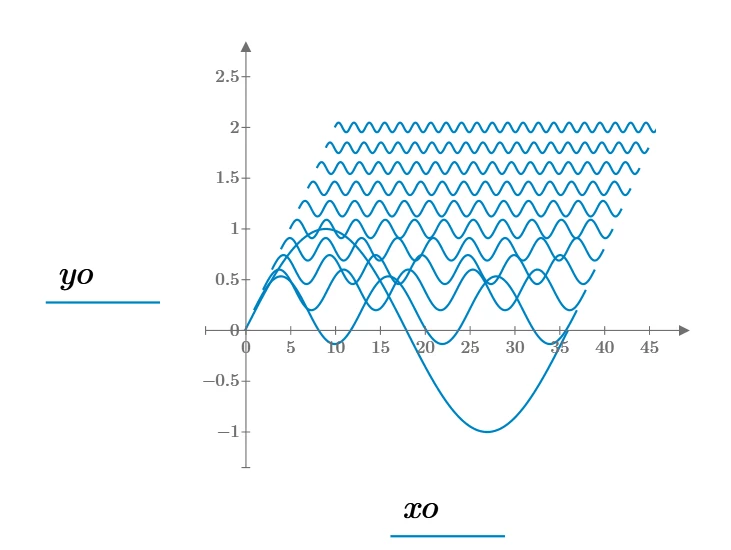

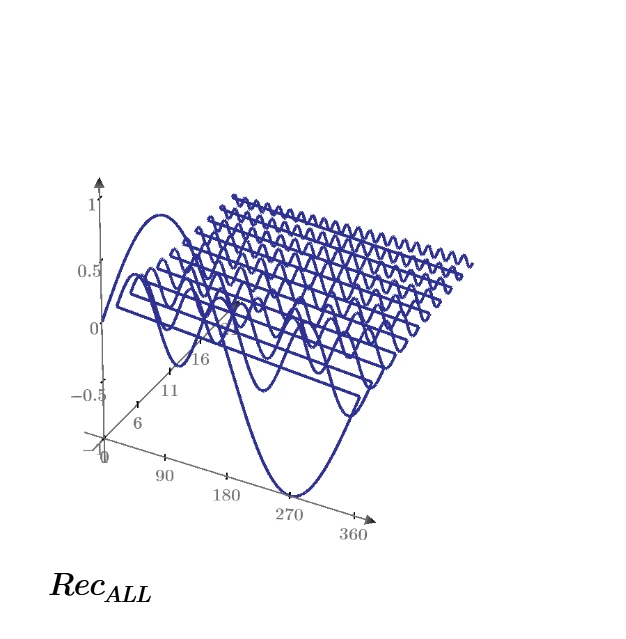

    Waterfall 2D plot and 3D plot to show the families.


    Translate
    t.t.
      Werner_E
      Werner_E25-Diamond I
      25-Diamond I
      January 18, 2023

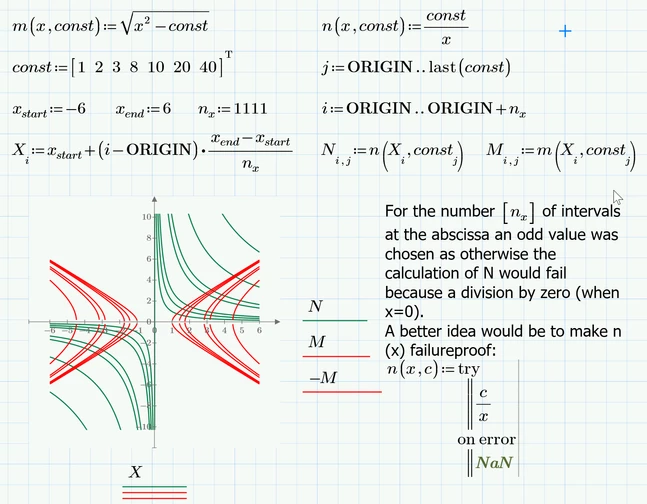

      Here are my 2 Cents ...
